12050 A Pneumatic Toggle Clamp , Pneumatic Hold Down Clamps Destaco 802
12050 A Pneumatic Toggle Clamp , Pneumatic Hold Down Clamps Destaco 802
Specifications
Brand Name :
Jiayan
Model Number :
12050 A
Certification :
ISO9001:2008
Place of Origin :
Dongguan
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
2000 pcs per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Structure :
air cylinder and toggle clamp
Bar Opens :
92 degree
Weight :
620g
Port Size :
G1/8''
Bore of Cylinder :
32mm
Cylinder Piston Area :
7.07cm2
Max Air Pressure :
10kg/cm2
Max Holding Capacity :
91kgs
Description

Air Powered Clamp Pneumatic Hold Down Clamp 12050 A with Port Size G1/8" Destaco 802 Holding Force 91kgs

Product Specification :

Structure:air cylinder and toggle clamp

Bar Opens:92 degree

Weight :620g

Port Size :G1/8''

Bore of Cylinder:32mm

Cylinder Piston Area:7.07cm2

Max Air Pressure:10kg/cm2

Max Holding Capacity:91kgs

Product features:

1.Air Powered Clamps (Destaco 802)
2.Great for machine operation, welding, mould, electronic equipment assembly, etc field
3.Material : Metal, Plastic; Package : 1 x Toggle Clamp
4.HOLDING CAPACITY 200.2Ibs
5.with port size G1/8"

12050 A Pneumatic Toggle Clamp , Pneumatic Hold Down Clamps Destaco 802

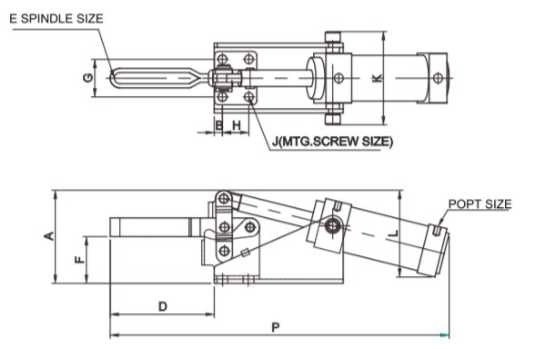

P:170 ;A:57;D:35;E:FC-10138;F:25.7;G:27;H:12.7;J:5.2;K:69;L:51
