Custom Welding Pneumatic Air Clamps 702DA Holding Force 500kgs OEM Service
Custom Welding Pneumatic Air Clamps 702DA Holding Force 500kgs OEM Service
Specifications
Brand Name :
Jiayan
Model Number :
702DA
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
1000 pcs per week
Delivery Time :
7 days
Packaging Details :
Poly bag and carton box
Structure :
Air cylinder and weldable clamp
Weight :
3015g
Port Size :
G1/8''
Bore of Cylinder :
40mm
Cylinder Area :
12.56cm2
Max air pressure :
10kg/cm2
Max Holding Force :
500kgs
Warranty :
1 year
Description

Heavy Duty Pneumatic Toggle Clamp 702DA Holding Force 500kgs Customized Welding Clamping Arm and Handle

Product Specification and features:

Structure :Air cylinder and weldable clamp

Weight :3015g

Port Size:G1/8''

Bore of Cylinder:40mm

Cylinder Area:12.56cm2

Max air pressure:10kg/cm2

Max Holding Force:500kgs

1.The wedable air clamps open widely for easy loading and unloading of workpiece
2.The user supplies need to weld hold down clamping arm and suitable handle to the clamps.

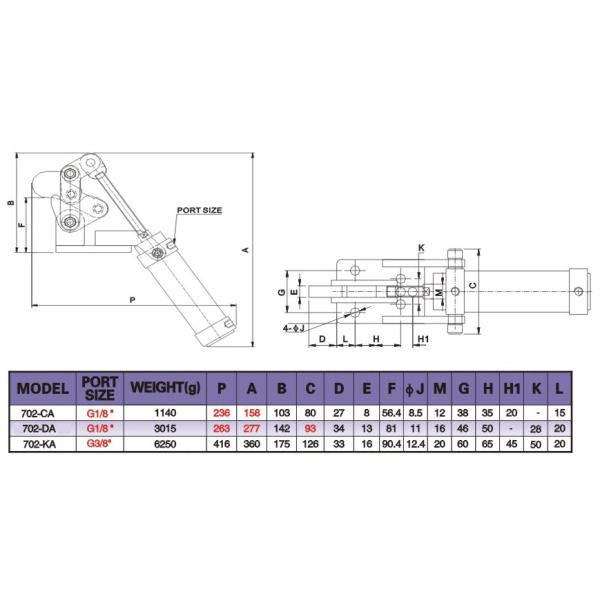

Series Products: 702-CA, 702-DA and 702-KA
