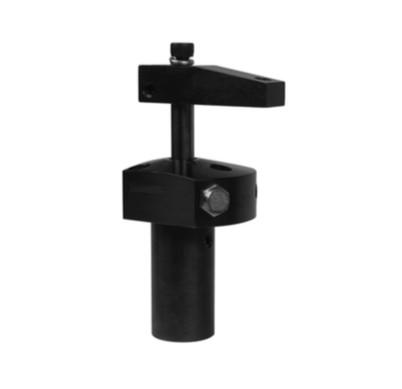

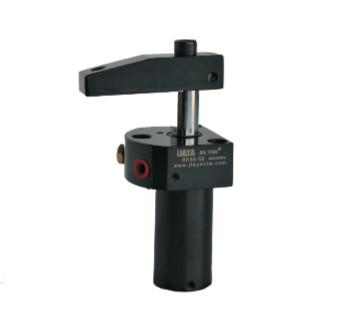

Upper Flange High Pressure Hydraulic Swing Clamps Series 50 Max Clamping Force 1830kgs Small Size Cylinder Body

FEATURES


1. 050 series boasts the smallest height for mounting when space is limited, but it is necessary to manufacture a hole for installing swing clamp on fixture plate and the cylinder body can be inserted into the fixture plate. Installing is very simple. You just need 3 or 4 PCS of bolts to fix your swing clamp cylinder.
2. It has the single acting and double acting type.
3. Feature of the doubling acting type:Oil circuits control clamping and unclamping, you can control the clamping and unclamping by direction valve.
4. Feature of the single acting type:The design of the interior system is simple.It is not necessary to design for unclamping. It can return back to original position by spring and the system design is simple because of few accessories.
5. The material of the cylinder body is carbon steel and treated by nicarbing. The hardness of the outside and inside surface of the cylinder is high and the cylinder is antiabrasive.
Max. operating pressure: 250 kgf/cm2
Min. operating pressure: 70 kgf/cm2
Single acting and double acting

NOTE
A flow control valve is recommeded.
For customized clamp arm, please don't exceed 1.5 times of the original length and weight.

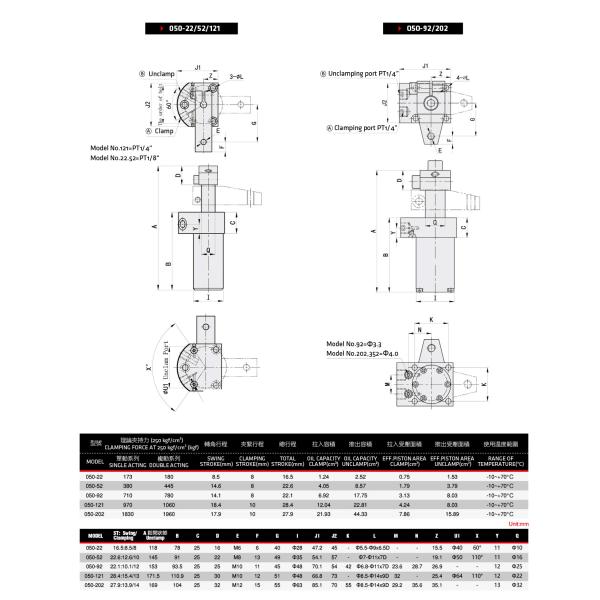

ORDERING INDICATION 050 – L D 92×90 – P

050

Series

050

L

Rotating direction

Turn right R or turn left L

D

Acting type

S: Single acting

D: Double acting

92

Type

22 , 52 , 92 , 121 , 202

90

Rotating angle

Standard angle 90°(±2°)

Optional angle 30°(±2°),45°(±2°),60°(±2°)

P

Precision position

Add locating pin design to improve the repeat precision of rotation angle
