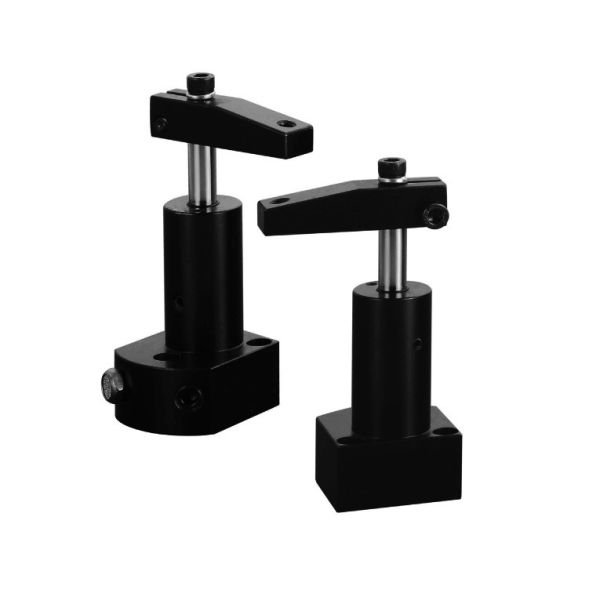

Manifold Type Swing Clamp Cylinder Upper Flange Corrosion Resistance Surface
Manifold Type Swing Clamp Cylinder Upper Flange Corrosion Resistance Surface
Manifold Type Swing Clamp Cylinder Upper Flange Corrosion Resistance Surface
Manifold Type Swing Clamp Cylinder Upper Flange Corrosion Resistance Surface
Specifications
Brand Name :
Jiayan
Model Number :
RNU
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per week
Delivery Time :
7 days
Packaging Details :
inner poly bag outer carton box
Material :
Mild Steel
Max. operating pressure :
45kgf/cm2
Min. operating pressure :
20kgf/cm2
Clamping arm type :
Single or Double side arm
Total Stroke :
29
RANGE OF TEMPERATURE :
-10~+70°C
Warranty :
1 year ( change for free)
Description

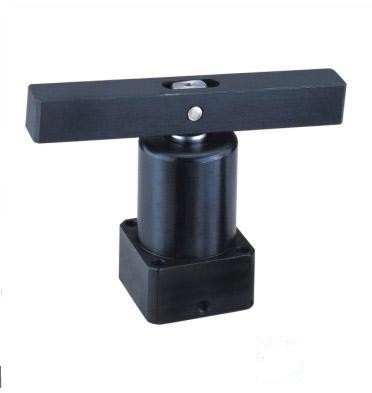

Upper Flange Manifold Type Hydraulic Swing Clamp Two Mounting Methods Mild Steel Wear and Corrosion Resistance Surface

Product Introduction

1. The total stroke is equal to the sum of the swing stroke and the clamping stroke.

2. Single clamping arm and double clamping arm.

3. The cylinder body is made of medium carbon steel.

4. When increasing length of clamping arm is required, be sure not to exceed 1.5 times of the original length.

Do not exceed maximum fluid flow rate in table. For extended clamp life a simple flow-control valve may be required if the fixture is powered by a high-flow-rate power source

Specification

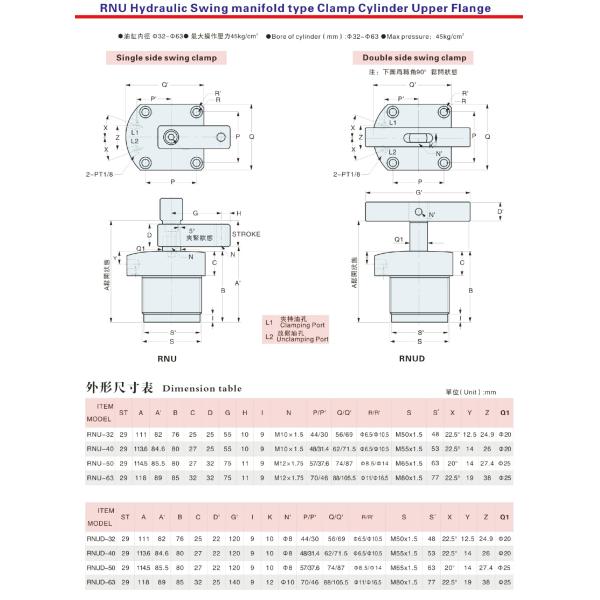

Bore of Cylinder (mm) Φ32 Φ40 Φ50 Φ63
Bore of Piston (mm) Φ20 Φ20 Φ20 Φ25
Swing Stroke (mm) 14
Clamping Stroke (mm) 15
Press Area pull/push (cm²) 4.9/8.04 9.43/12.57 16.49/19.63 26.6/31.17
Theoretical Clamping Force (25kg/ cm²) 125 200 400 600
Fluid Filtered oil
Range of pressure (kg/cm²) 20-45kg/cm²
Rotating Direction Turn Right or Turn Left
Rotating Angle Standard angle 90°,Optional angle 0°, 45°, 60°
Acting Type Double Acting

Ordering Code

RNU L-- 40°x 90°

① ② ③ ④

①

Series Code

 RHD, RHUD (double clamping arm)
②

Rotating Direction

Turn Right or Turn Left
③ Bore of Cylinder Φ32mm;Φ40mm;Φ50mm;Φ63mm
④

Rotating Angle

Standard angle 90°；Optional angle 0°,45°, 60°

Manifold Type Swing Clamp Cylinder Upper Flange Corrosion Resistance Surface
