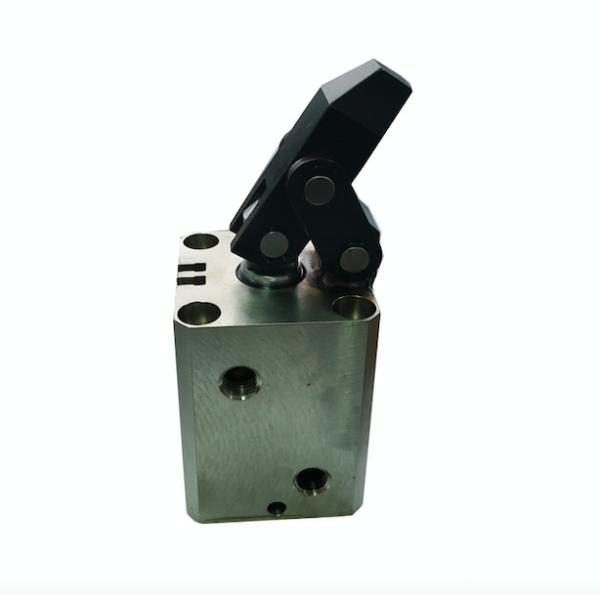

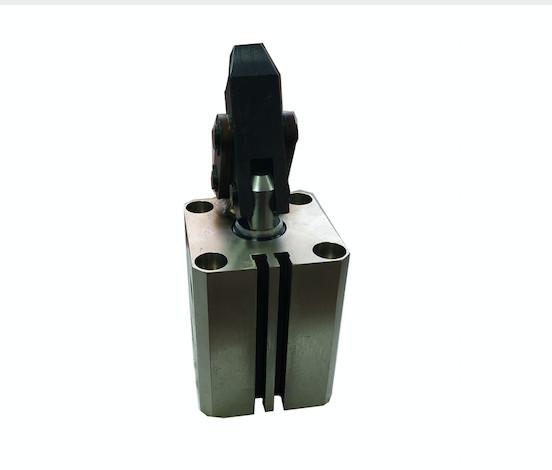

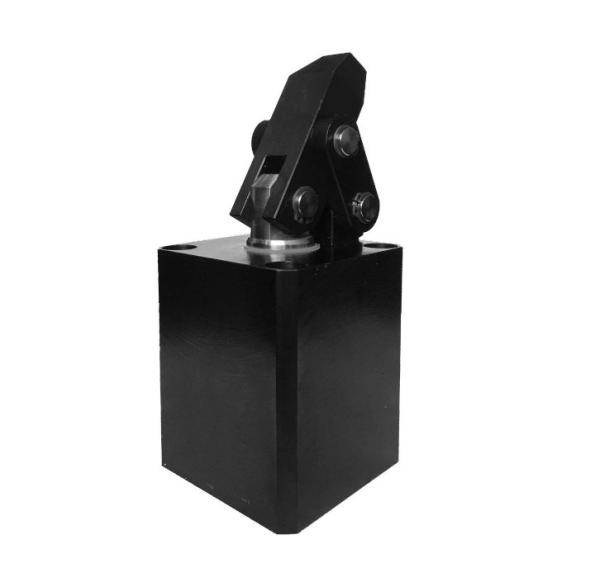

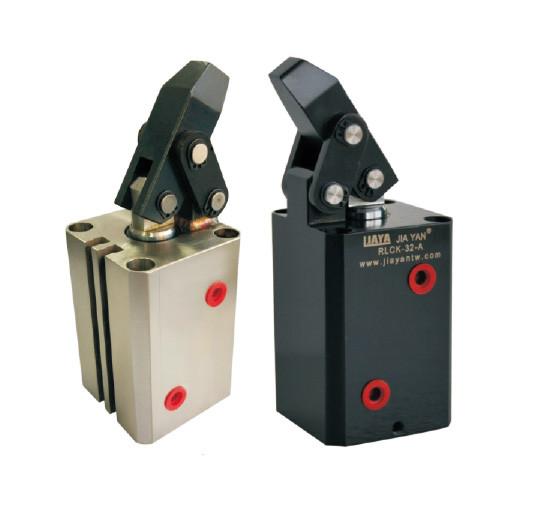

Hydraulic Link Clamp Cylinder Carbon Steel Body Surface Chrome Plated industrial Fixture in Auto manufacture

FEATURES


1.The clamp structure of this model is based on the lever principle: it will be tightened as piston pushing out.
2.The clamping force is stronger than the swing clamp cylinder.

3.The parts are installed outside the cylinder barrel for maintaining easily.
4.The cylinder barrel is made of carbon steel with stable and durable performance.
5.The material of the piston is 45# steel, heat treatment, chrome plated.
Max. operating pressure: 70 kgf/cm2
Min. operating pressure: 10 kgf/cm2
Double acting

NOTE
A flow control valve is recommended

Specification

Bore of Cylinder(mm) Φ25 Φ32 Φ40 Φ50 Φ63

Dia. of Piston

(mm)

 Φ18 Φ20 Φ22.4 Φ28 Φ35
Total stroke(mm) 25 25 30 34 40
Pressure area push cm² 4.91 8.04 12.57 19.63 31.17
Theoretical Clamping Force 30 kg/cm² 116kgs 190kgs 288kgs 453kgs 701kgs
Fluid Filtered oil
Max Pressure 70kg/cm²
Range of pressure 10-50kg/cm²
Acting type Double acting

ORDERING INDICATION CHLC – MF 25 R A

Industrial Hydraulic Link Clamp Cylinder Carbon Steel Body OEM Service

CHLC Series

CHLC

MF

Type

Blank :Line type

M: Manifold type

MF: Manifold with flow control

FA:Flange type

FAM:Flange with manifold

FAMT: Flange with flow control
25 Bore of Cylinder

25 , 32 , 40 ,50 , 63
R

Lever arm direction

R: right , L: left
A

A integrated
