Stable Link Clamp Cylinder Machining Center Fixture Double Acting Feature
Stable Link Clamp Cylinder Machining Center Fixture Double Acting Feature
Stable Link Clamp Cylinder Machining Center Fixture Double Acting Feature
Stable Link Clamp Cylinder Machining Center Fixture Double Acting Feature
Specifications
Brand Name :
Jiayan
Model Number :
LHC01
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
450 sets per week
Delivery Time :
7 days
Packaging Details :
inner poly bag and outer carton box
Material :
Carbon Steel
Max. operating pressure :
70 kgf/cm2
Min. operating pressure :
20 kgf/cm2
Acting Type :
Double acting
Work Temperature :
-10~+70°C
Max :
1662kgs
Warranty :
1 year (change new for free)
Description

Stable Performance Link Clamp Cylinder Machining Center Fixture Surface Chrome-plated for Corrosion Resistance

FEATURES

1.Five available bore diameter :Φ25,Φ32 ,Φ40,Φ50,Φ63.
2.Use high-quality seal to avoid leakage and keep long operation
3.Lever principle design is applied on this hydraulic cylinder. Clamping work piece easily and improve efficiency.
4.The material of the cylinder body and the piston is 45# steel, heat treatment,chrome plated.

Max. operating pressure: 70 kgf/cm2

Min. operating pressure: 20 kgf/cm2

Double acting

NOTE

A flow control valve is recommeded.

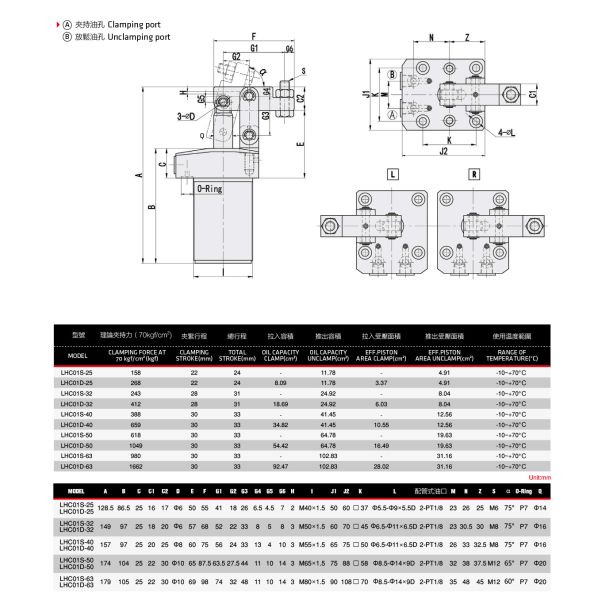

ORDERING INDICATION LHC01 – D – 40 C R A W

LHC01

Series

LHC01

D

Acting type

D: Double acting

S: Single acting

40

Bore of cylinder

Φ25 , Φ32 , Φ40 , Φ50 , Φ63

C

C:

Manifold with flow control

R

Lever arm direction

R, L, Blank

A

integrated cylinder body
