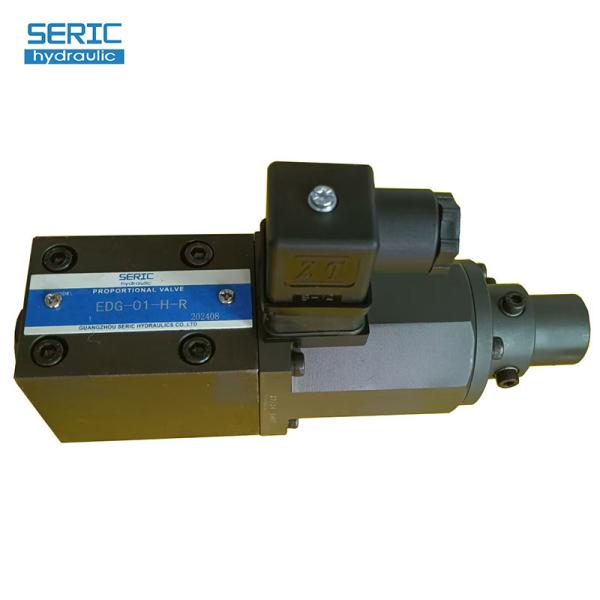

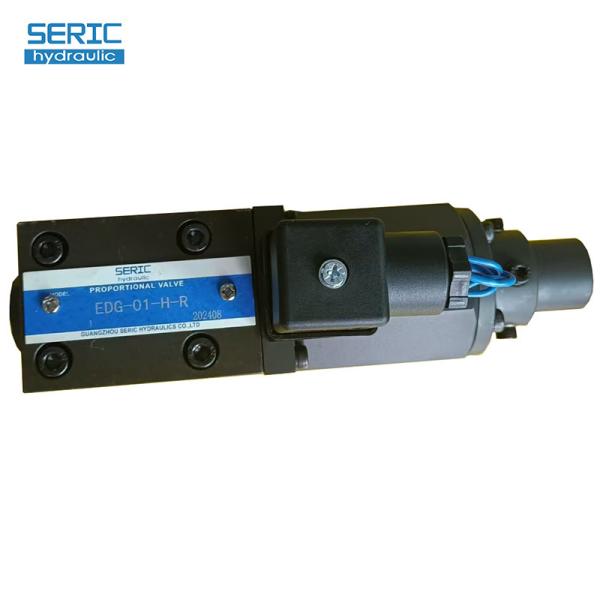

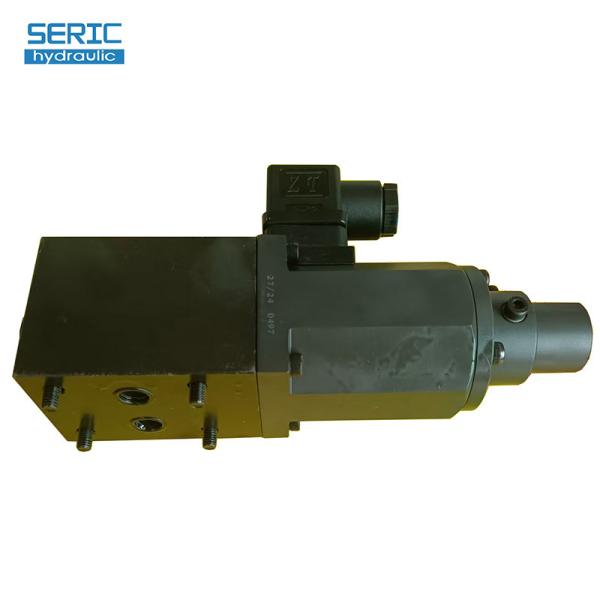

EDG Pilot Relief Valves Hydraulic Proportional Valve
EDG Pilot Relief Valves Hydraulic Proportional Valve
EDG Pilot Relief Valves Hydraulic Proportional Valve
EDG Pilot Relief Valves Hydraulic Proportional Valve
EDG Pilot Relief Valves Hydraulic Proportional Valve
EDG Pilot Relief Valves Hydraulic Proportional Valve
Specifications
Brand Name :
Seric
Model Number :
EDG Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

EDG Pilot Relief Valves Hydraulic Proportional Valve


Features

This valve consists of a small DC solenoid and a direct-acting relief valve. It serves as a pilot valve for a low flow rate hydraulic system or a proportional electro-hydraulic control valve and controls the pressure in proportion to the input current. Note that this valve is used in conjunction with the applicable power amplifier.


Specifications

Model Numbers EDG-01
Max. Operating Pres. 24.5 MPa (3550 PSI)
Max. Flow 2 L/min (.53 U.S.GPM)
Min. Flow 0.3 L/min (.08 U.S.GPM)
Pressure Adj. Range MPa (PSI) Refer to Model Number Designation
Rated Current EDG-01*B: 800 mA
EDG-01*C: 900 mA
EDG-01*H: 950 mA
Coil Resistance 10 Ω
Hysteresis 3% or less
Repeatability 1% or less
Approx. Mass 2 kg (4.4 lbs.)
