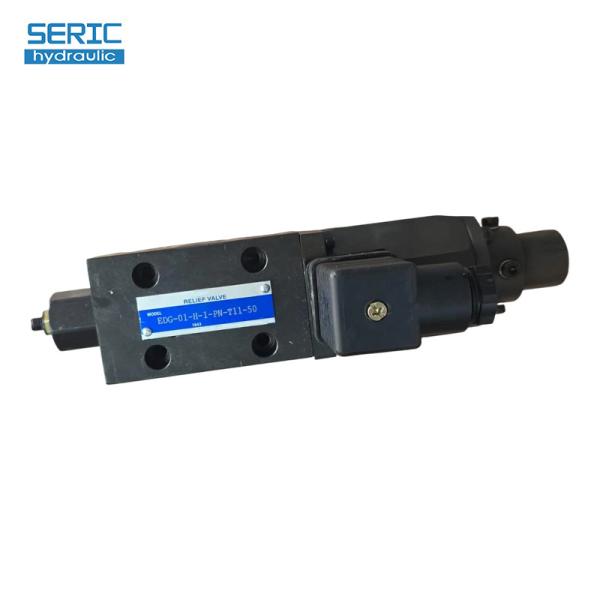

Proportional Electro-Hydraulic Pilot Relief Valves EDG
Proportional Electro-Hydraulic Pilot Relief Valves EDG
Specifications
Brand Name :
Seric
Model Number :
EDG Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Proportional Electro-Hydraulic Pilot Relief Valves EDG


Features

EDG-01 Series Proportional Electro-Hydraulic Pilot Relief Valve, provides precise pressure control in hydraulic systems. These valves are designed for applications requiring proportional pressure regulation, offering superior accuracy and repeatability. Featuring a compact sub-plate mounting design, the EDG-01 Series ensures stable pressure control while maintaining a low flow rate. Ideal for industrial automation, manufacturing, and hydraulic machinery, these pilot relief valves work seamlessly with power amplifiers for enhanced performance.


Specifications

Model Numbers EDG-01
Max. Operating Pres. 24.5 MPa (3550 PSI)
Max. Flow 2 L/min (.53 U.S.GPM)
Min. Flow 0.3 L/min (.08 U.S.GPM)
Pressure Adj. Range MPa (PSI) Refer to Model Number Designation
Rated Current EDG-01*B: 800 mA
EDG-01*C: 900 mA
EDG-01*H: 950 mA
Coil Resistance 10 Ω
Hysteresis 3% or less
Repeatability 1% or less
Approx. Mass 2 kg (4.4 lbs.)



Proportional Electro-Hydraulic Pilot Relief Valves EDG

Proportional Electro-Hydraulic Pilot Relief Valves EDG

Proportional Electro-Hydraulic Pilot Relief Valves EDG

Proportional Electro-Hydraulic Pilot Relief Valves EDG
