Specifications
Brand Name :
Seric
Model Number :
MTCV Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

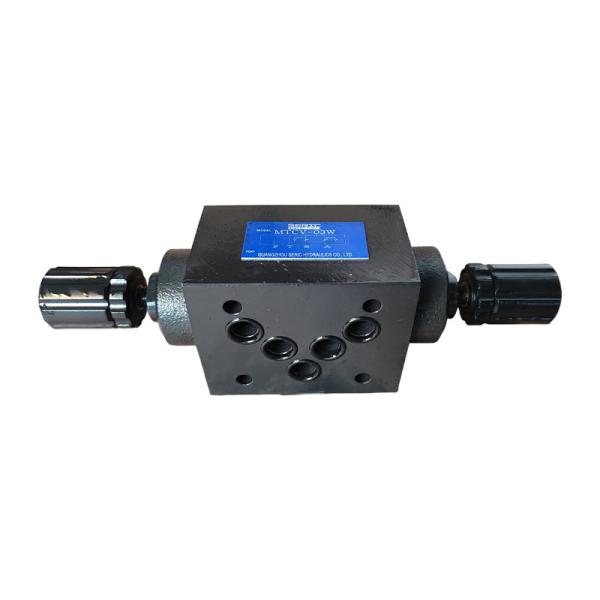

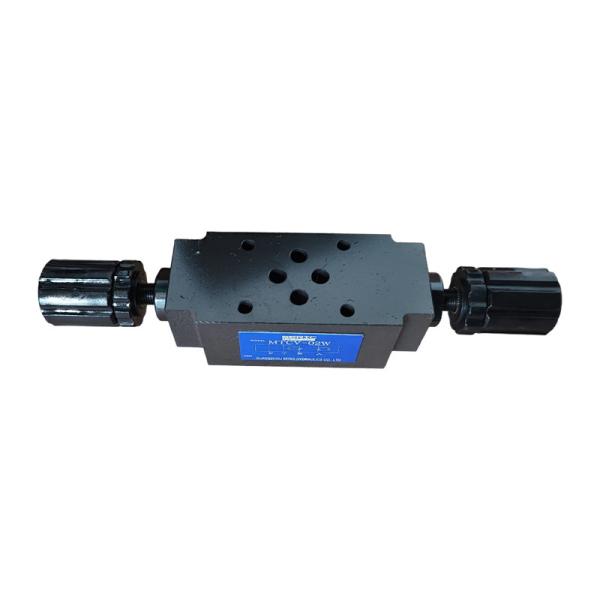

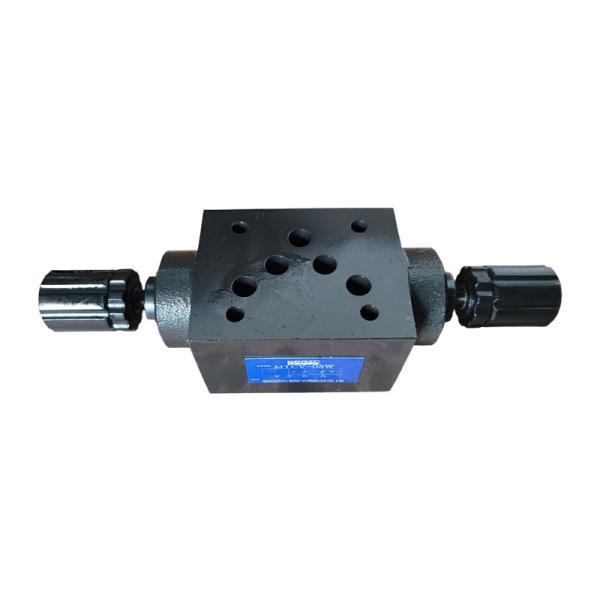

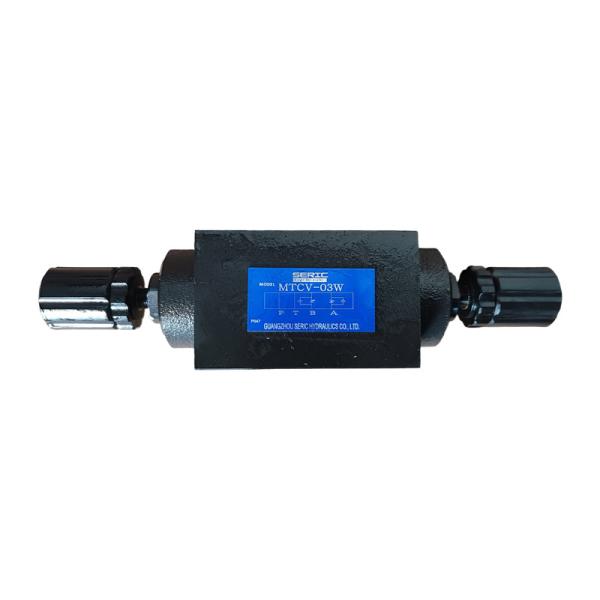

Modular Throttle and Check Valves MTCV Series MTCV-02 MTCV-03 MTCV-04 MTCV-06

Features

Compared with traditional hydraulic valves, the biggest feature of modular control valves is that they can achieve system installation without the need for piping, thus reducing system leakage, vibration, and noise.

Compared to traditional pipeline connections, modular control valves do not require special installation skills and are very convenient for changing the functionality of hydraulic systems. Due to the absence of piping, the overall reliability of the system is enhanced, and it is easy for daily inspection and maintenance.

It is widely applicable to various industrial hydraulic systems, such as injection molding machine hydraulic systems, CNC machine tool hydraulic systems, metallurgical equipment hydraulic systems, etc.

Symbol

Hydraulic Modular Throttle And Check Valve MTCV-02  MTCV-03 MTCV-04 MTCV-06

Specifications

Model Max. operating pressure
(kgf/cm²)
Max. flow
(L/min)
Weight
(kg)
MTCV-02-AO/BO/AI/BI 250 35 1.3
MTCV-02-WO/WI 1.4
MTCV-03-AO/BO/AI/BI 70 2.7
MTCV-03-WO/WI 2.8
MTCV-04-AO/BO/AI/BI 190 7.5
MTCV-04-WO/WI
MTCV-06-AO/BO/AI/BI 300 13
MTCV-06-WO/WI

Model Number Designation

MTCV 02 W O L
SERIES NUMBER VALVE SIZE CONTROL OIL PORT CONTROL POSITION KNOB TYPE
MTCV 02: 1/4"
03: 3/8"
04: 1/2"
06: 3/4"
A: A port
B: B port
W: A, B port
O: Output control
I: Input control
K: Haft turning knob bolt rod adjust
L: Inner hexangular bolt rod adjust
:K only for MTCV-02, MTCV-03
