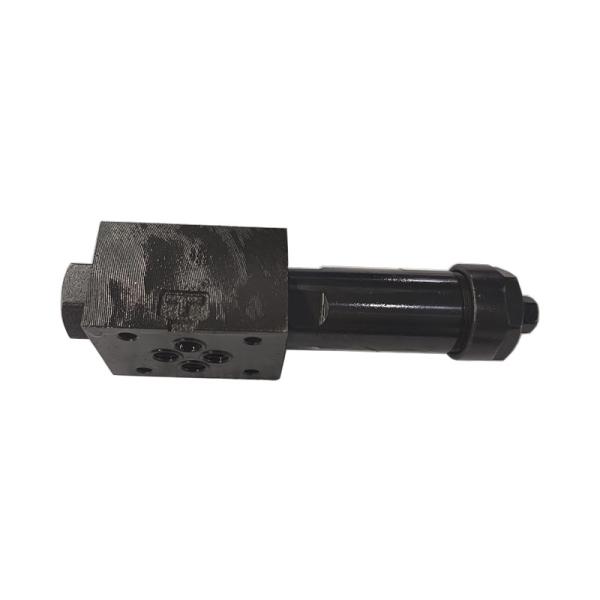

MSP-01-50 Hydraulic Modular Valve 01 Series Throttle Modular Valve
MSP-01-50 Hydraulic Modular Valve 01 Series Throttle Modular Valve
Specifications
Brand Name :
Seric
Model Number :
01 Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

MSP-01-50 Modular Throttle Valves 01 Series

Features

The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems.

Seric's 01 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines.

The valves have standardized mounting surface conforming to ISO 4401-AB-03-4-A and optimum thickness for the stacking.

Specifications

Model Numbers
 Max. Operating Pressure
MPa (PSI)		 Max. Flow
L /min (U.S.GPM)
MSP-01-50 31.5 (4570) 35 (9.25)

At the low differential pressure, maximum flow is limited. See "Pressure Drop at Throttle Fully Open".

MSP-01-50 Hydraulic Modular Valve 01 Series Throttle Modular Valve

Model Number Designation

F-
 　 -1 -50
Special Seals Series Number Valve Size Design Number
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required) MSP : Throttle Valve for P-Line 1 50

Typical Performance Characteristics

Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850

MSP-01-50 Hydraulic Modular Valve 01 Series Throttle Modular Valve

MSP-01-50 Hydraulic Modular Valve 01 Series Throttle Modular Valve

MSP-01-50 Hydraulic Modular Valve 01 Series Throttle Modular Valve

Instructions

To make flow rate adjustment, loosen locking screw for the dial and turn the flow adjustment dial clockwise or anti-clockwise. For a decrease of flow, turn the dial clockwise. Be sure to re-tighten the locking screw firmly after the adjustment of the flow rate.

MSP-01-50

MSP-01-50 Hydraulic Modular Valve 01 Series Throttle Modular Valve

MSP-01-50 Hydraulic Modular Valve 01 Series Throttle Modular Valve

Approx. Mass............ 1.2 kg (2.6 lbs.)
