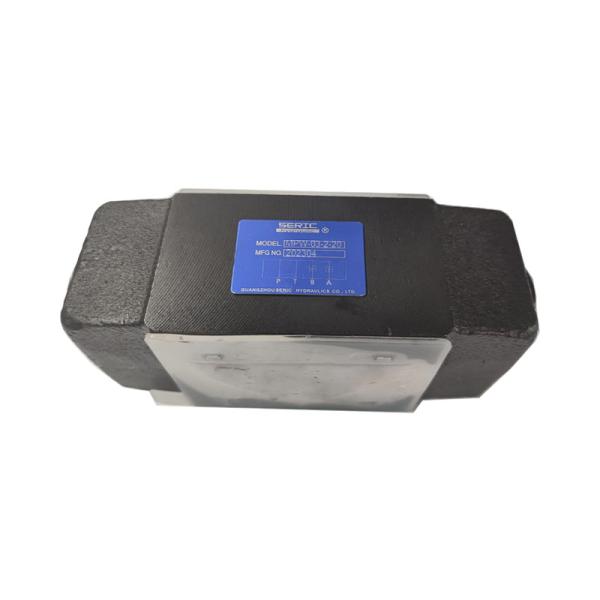

03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03
03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03
03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03
03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03
03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03
03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03
Specifications
Brand Name :
Seric
Model Number :
03 Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

03 Series Pilot Operated Check Valves MPA-03 MPB-03 MPW-03

Features

The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems. Seric's 03 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines. The valves have standardized mounting surface conforming to ISO 4401-AC-05-4-A and optimum thickness for the stacking.

03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03

Specifications

Model Numbers
 Max. Operating Pressure
MPa (PSI)		 Max. Flow
L /min (U.S.GPM)
MPA-03-∗-20 25(3630) 70 (18.5)
MPB-03-∗-20
MPW-03-∗-20

Model Number Designation

F-
 MPA -3 -2 -20
Special Seals Series Number Valve Cracking Pressure
MPa(PSI)		 Design Number
F:Special Seals for Phosphate Ester Type Fluids (Omit if not required) MPA: Pilot Operated Check Valve for A-Line 3 2 : 0.2 (29)
4 : 0.4 (58)		 20
MPB: Pilot Operated Check Valve for B-Line
MPW: Pilot Operated Check Valve for A&B-Lines

03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03

Typical Performance Characteristics

Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850

03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03
