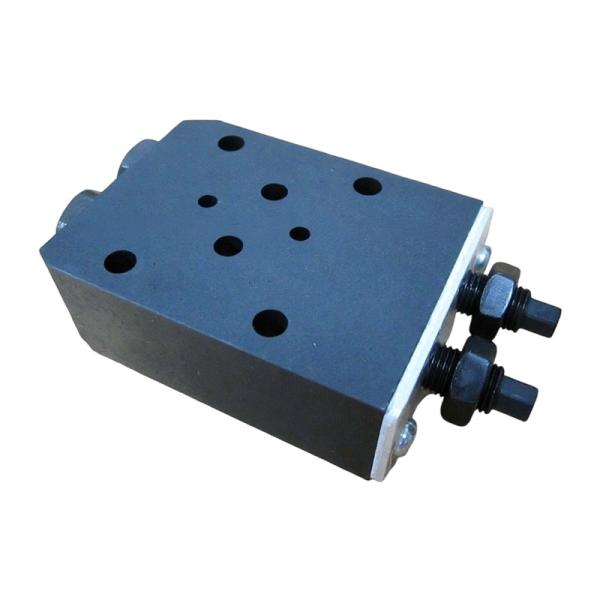

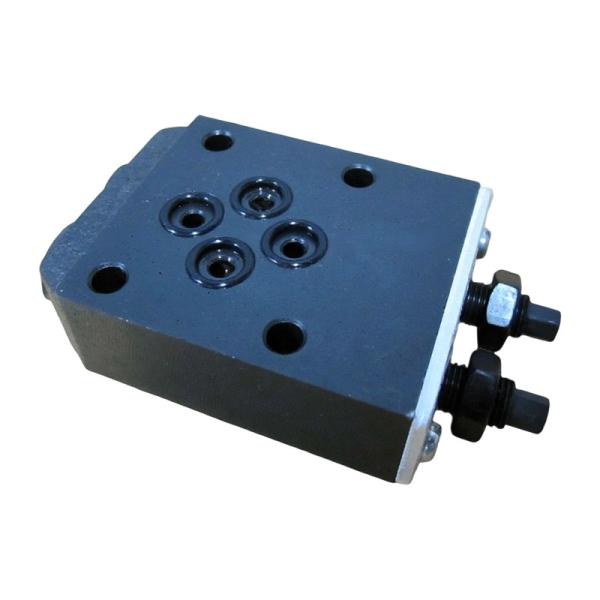

TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve
TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve
TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve
TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve
TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve
TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve
Specifications
Brand Name :
Seric
Model Number :
TC1G/TC2G Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Hydraulic Flow Control Throttle and Check Modules TC1G TC2G

Features

Used as pilot choke valves for solenoid controlled pilot operated directional valves and pilot operated directional valves.

Specifications

Model Numbers Nominal Flow
L/min (U.S.GPM)		 Max. Operating Pressure
MPa (PSI)		 Approx. Mass
kg (lbs.)
TC1G-01-40/4090 30 (7.9) 25 (3630) 0.6 (1.3)
TC2G-01-40/4090 0.65 (1.4)
TC1G-03-*-40/4090 80 (21.1) 1.6 (3.5)
TC2G-03-*-40/4090 1.8 (4.0)

Model Number Designation

F- TC1 G -3 -C -40 *
Special Seals Series Number Type of Mounting Valve Size Valve Type Design Number Design Standards
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required) TC1: Throttle Module G:Gasket Mounting 01 None: Std. Type 40 None: Japanese Std. "JIS" and European Design Std.
90: N. American Design Std.
TC2: Throttle and Check Module None: Std. (Metre-Out) Type
TC1: Throttle Module G:Gasket Mounting 03 None: Std. Type
C: With Check Valve		 40
TC2: Throttle and Check Module None: Std. (Metre-Out) Type
A: Metre-in Type
