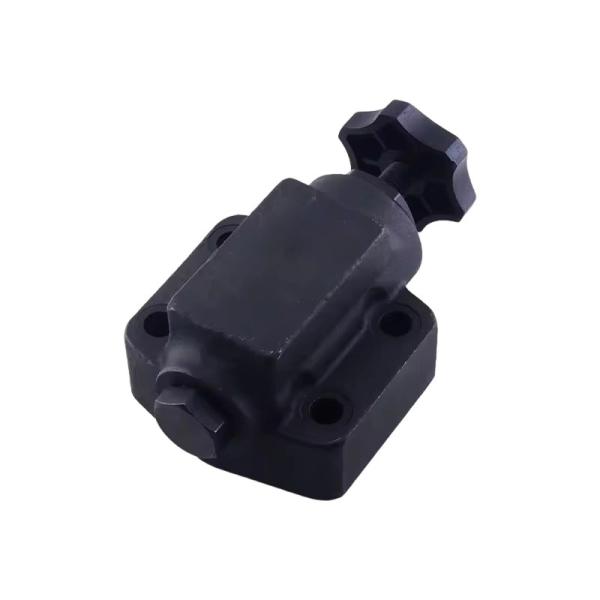

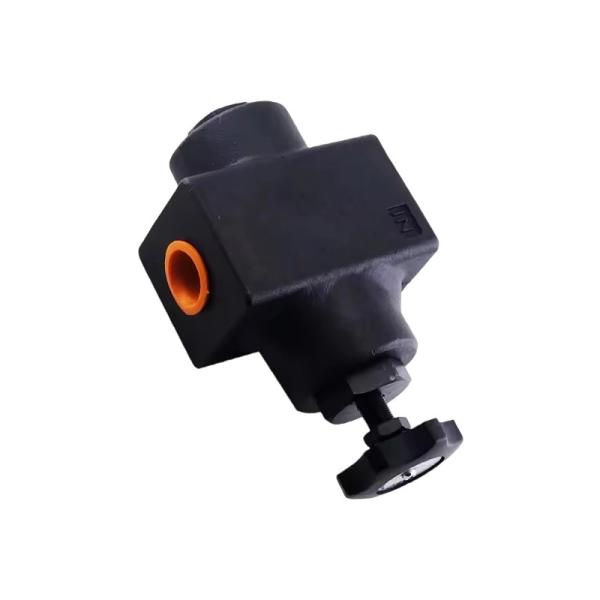

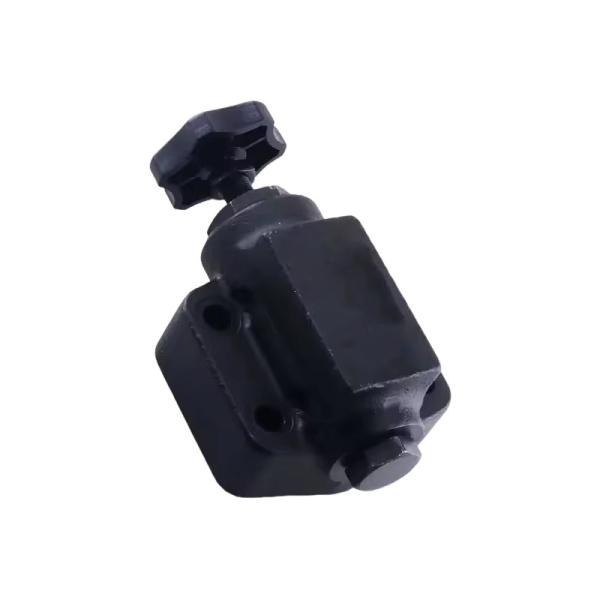

Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Hydraulic Flow Control Throttle Valve SRG SRCG SRT SRCT Series One Way Restrictor Valve
Specifications
Brand Name :
Seric
Model Number :
SRG/SRCG/SRT/SRCT Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Hydraulic Throttle Control Valve SRG/SRCG/SRT/SRCT Series One Way Restrictors

Features

Restrictors SRT(G)/SRCT(G) are used to regulate an actuator speed in a circuit where line pressure is almost steady and small fluctuation of oil flow due to pressure changes is permitted. Integrated check valve allows reversed free flow from outlet to inlet port. Pressure balanced construction provides less effort in adjustment at high pressure.

Specifications

Valve Name Model Numbers Rated Flow*
L/min (U.S.GPM)		 Max. Operating Pres.
MPa (PSI)		 Approx. Mass
kg (lbs.)
Threaded Connection Sub-plate Mounting Threaded Connection Sub-plate Mounting
Restrictor SRT-03-50/5080/5090 SRG-03-50/5090 30 (7.9) 25 (3630) 1.5(3.3) 2.5(5.5)
SRT-06-50/5080/5090 SRG-06-50/5090 85 (22.4) 3.8 (8.4) 3.9 (8.6)
SRT-10-50/5080/5090 SRG-10-50/5090 230 (60.7) 9.1 (20.1) 7.5(16.5)
One Way Restrictor SRCT-03-50/5080/5090 SRCG-03-50/5090 30 (7.9) 25 (3630) 1.5(3.3) 2.5(5.5)
SRCT-06-50/5080/5090 SRCG-06-50/5090 85 (22.4) 3.8 (8.4) 3.9 (8.6)
SRCT-10-50/5080/5090 SRCG-10-50/5090 230 (60.7) 9.1(20.1) 7.5(16.5)

Rated flow stands for approximate flow rate when the pressure drop between inlet and outlet ports of the valve in fully opened condition becomes 0.3 MPa (44 PSI) maximum at fluid's specific gravity of 0.85 and kinematic viscosity of 20mm²/s (98 SSU).

Model Number Designation

F- SR T -3 -50 *
Special Seals Series Number Type of Mounting Valve Size Design Number Design Standards
F:
Special Seals for Phosphate Ester Type Fluids
(Omit if not required)		 SR:
Restrictor		 T: Threaded Connection 03 50 None: Japanese Std. "JIS"
80: European Design Std.
90: N.American Design Std.
06 50
10 50
G: Sub-plate Mounting 03 50 None: Japanese Std. "JIS" & European Design Std.
90: N.American Design Std.
06 50
10 50
SRC:
One Way Restrictor		 T: Threaded Connection 03 50 None: Japanese Std. "JIS"
80: European Design Std.
90: N.American Design Std.
06 50
10 50
G: Sub-plate Mounting 03 50 None: Japanese Std. "JIS" & European Design Std.
90: N.American Design Std.
06 50
10 50
