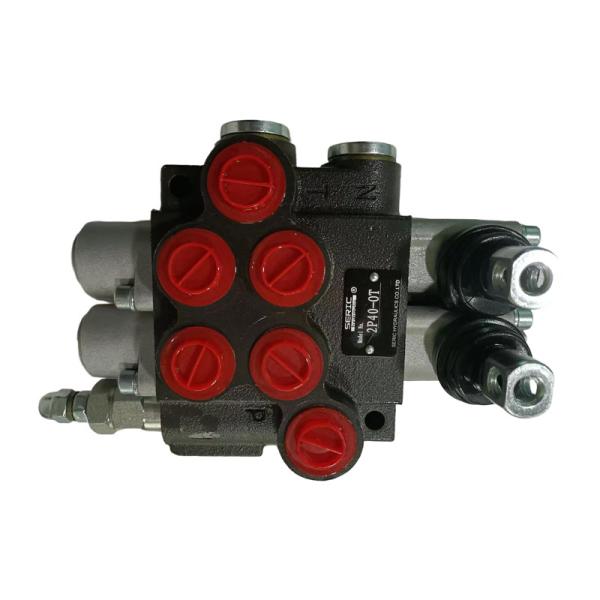

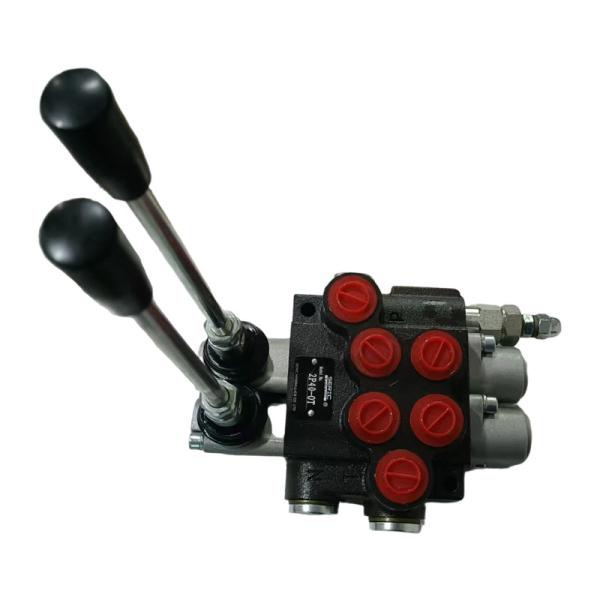

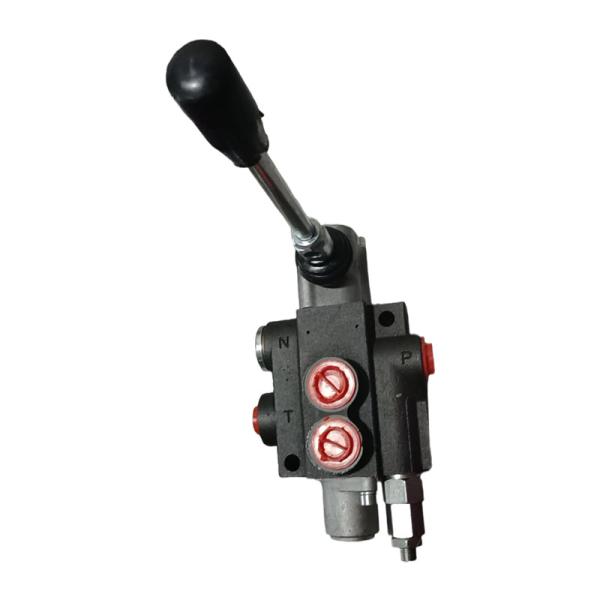

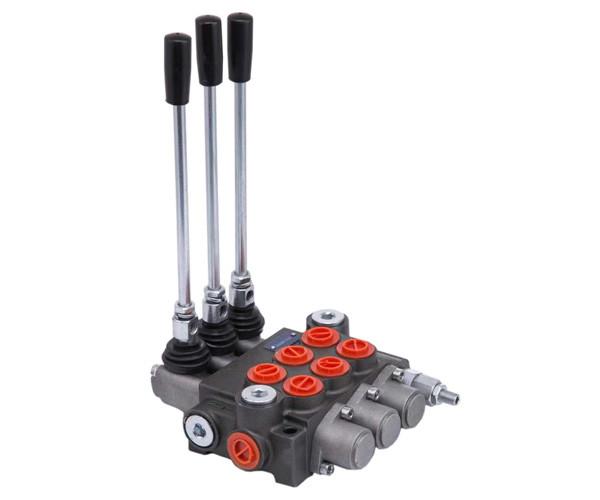

P40 Series Monoblock Manual Hydraulic Directional Control Valves
P40 Series Monoblock Manual Hydraulic Directional Control Valves
P40 Series Monoblock Manual Hydraulic Directional Control Valves
P40 Series Monoblock Manual Hydraulic Directional Control Valves
P40 Series Monoblock Manual Hydraulic Directional Control Valves
P40 Series Monoblock Manual Hydraulic Directional Control Valves
P40 Series Monoblock Manual Hydraulic Directional Control Valves
P40 Series Monoblock Manual Hydraulic Directional Control Valves
Specifications
Brand Name :
Seric
Model Number :
P40 Series
Place of Origin :
Guangzhou
MOQ :
1 Piece
Price :
USD11.00
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
Certification :
CE, ISO
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Manual Hydraulic Directional Control Valves P40 Series Monoblock

P40 Series Features

P40 series integral multi-directional valve
P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.


Inner check valve:

The check valve inside the valve body is to insure the hydraulic oil not to be returned.


Inner relief valve:

The relief valve inside the valve body is able to adjust the hydraulic system working pressure.


Oil way:

Parallel circuit, power beyond option.


Control Way:

Manual control, pneumatic control, hydraulic and electric control for optional.


Valve construction:

monoblock construction, 1-6 levers.


Spool Function:

O,Y, P, A.


Option:

Hydraulic lock is available to be added on A and B port.


Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.

Specifications

Parameter
Metric Value
Imperial Value
Nominal flow rate
40 L/min
10.6 US GPM
Operating pressure (max)
250 bar
3626 psi
Operating range
15 ~ 75 mm²/s
15 ~ 75 cst
Minimum viscosity
12 mm²/s
12 cst
Maximum viscosity
400 mm²/s
400 cst
Ambient temperature range
-40° ~ 80°C
-40° ~ 176°F
Structure
Monoblock: 1 - 7 sections
-

P40 Series Monoblock Manual Hydraulic Directional Control Valves

P40 Series Monoblock Manual Hydraulic Directional Control Valves

P40 Series Monoblock Manual Hydraulic Directional Control Valves
