P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
Specifications
Brand Name :
Seric
Model Number :
P80 Series
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
USD20.00
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
Certification :
CE, ISO
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

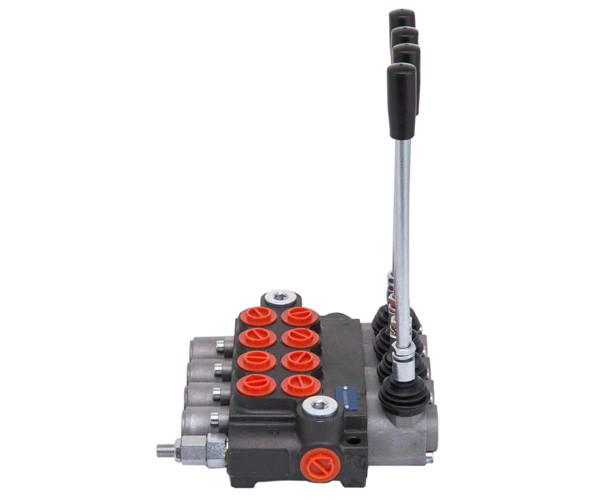

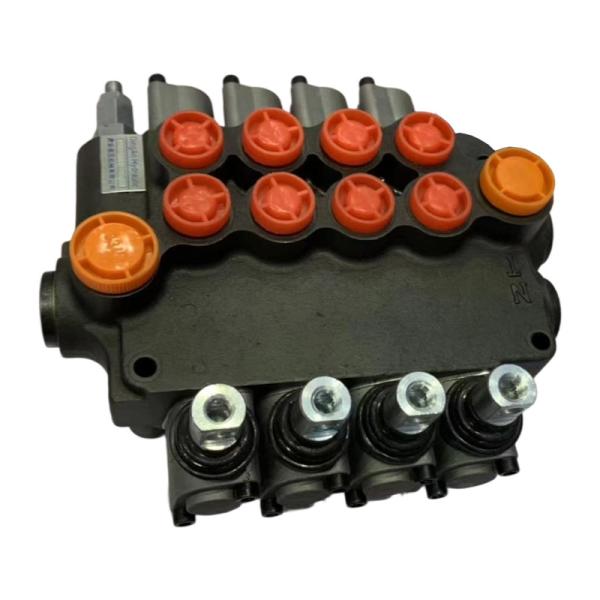

Electromagnetic Pressure Hydraulic Control Valve P80 Series Manual Directional Control Valve

P80 Series Features

P80 series valves with middle-high pressure monoblock construction is developed based on Europe technology.


Inner check valve:

The check valve inside the valve body is to insure the hydraulic oil not to be returned.


Inner relief valve:

The relief valve inside the valve body is able to adjust the hydraulic system working pressure.


Oil way:

Parallel circuit, power beyond option.


Control Way:

Manual control, pneumatic control, hydraulic and electric control for optional.


Valve construction:

monoblock construction, 1-6 levers.


Spool Function:

O,Y, P, A.


Option:

Hydraulic lock is available to be added on A and B port.


Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.

Specifications

Nominal Pressure
(Mpa)		 Max. Pressure
(Mpa)		 Nom. Flow
(L/min)		 Max. Flow Rate
(L/min)		 Back Pressure
(MPa)
20 31.5 80 80 ≤1

Parameter Metric Value Imperial Value
Nominal flow rate 80 L/min 21 US GPM
Operating pressure (max) 250 bar 3626 psi
Operating range 15 ~ 75 mm²/s 15 ~ 75 cst
Minimum viscosity 12 mm²/s 12 cst
Maximum viscosity 400 mm²/s 400 cst
Ambient temperature range -40° ~ 80°C -40° ~ 176°F
Structure Monoblock: 1 - 7 sections -
