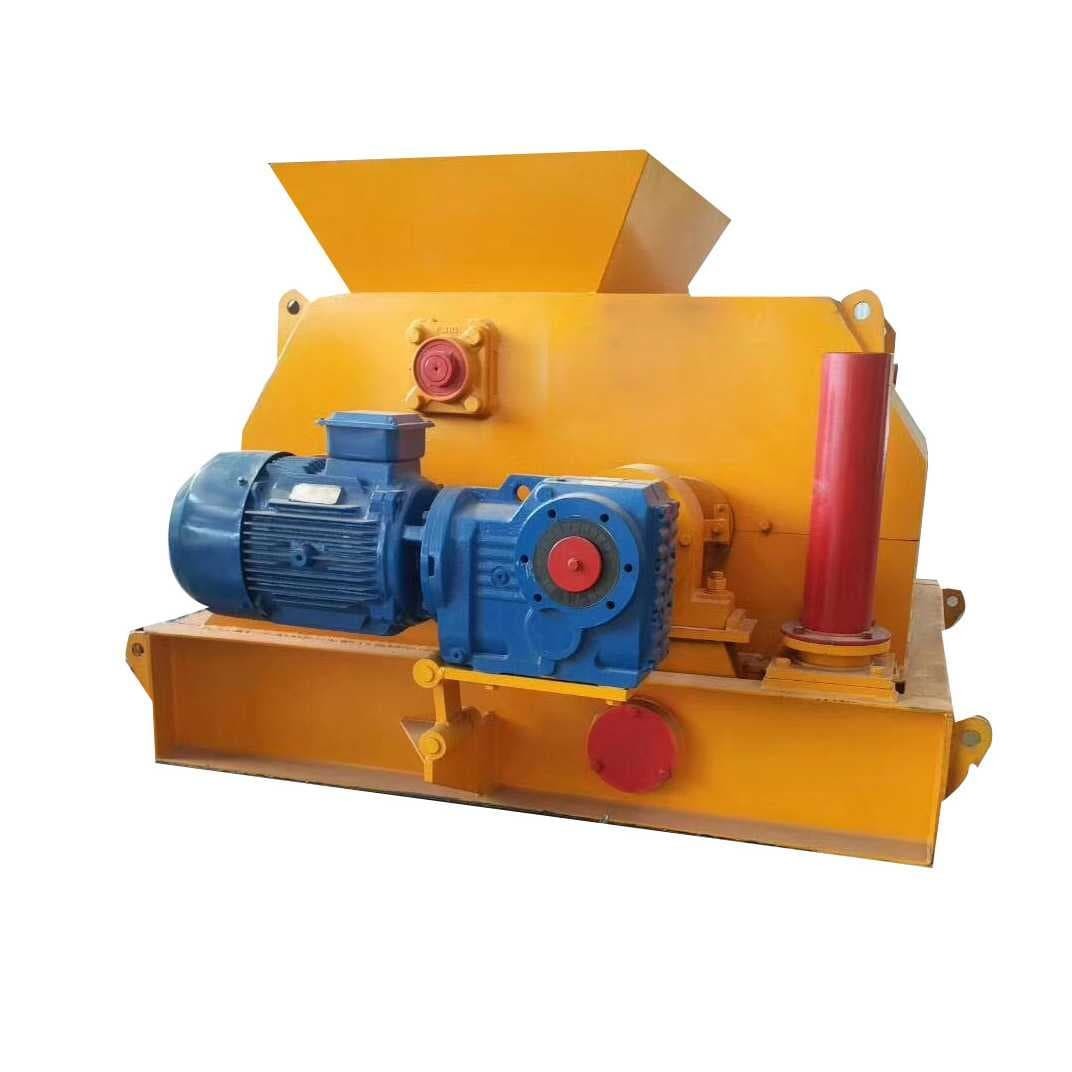

Double‑Speed Double Roller Crusher GSG8060‑1000 Primary Clay Stone Removing Machine for Brick Production
Double‑Speed Double Roller Crusher GSG8060‑1000 Primary Clay Stone Removing Machine for Brick Production
Double‑Speed Double Roller Crusher GSG8060‑1000 Primary Clay Stone Removing Machine for Brick Production
Double‑Speed Double Roller Crusher GSG8060‑1000 Primary Clay Stone Removing Machine for Brick Production
Specifications
Description

Primary Stone Remving Double Roller Crusher

GSG8060‑1000 double‑speed double‑roller crusher is purpose‑built for raw‑material pretreatment in fired‑brick factories. It adopts a differential‑speed design between the high‑speed roller and low‑speed roller. The speed difference generates strong shear and extrusion force to separate hard stones from wet clay and dry‑clay effectively.

Most brick‑making equipment is vulnerable to damage by hard gravel contained in raw materials. This primary stone‑removal machine solves this problem fundamentally. It screens and crushes stones within feeding size ≤150 mm in advance, protecting subsequent extruders and brick‑forming machines.

Technical Parameters

Specification Model GSG8060-1000
High speed roller diameter 600mm
Low speed roller diameter 800mm
Roll surface width 1000mm
Equipment power 55KW
Reducer model RS97-18.5KW
High speed roller speed 500
Low speed roller speed 50
Feed particle size ≤150mm
Rack material abrasion-resistant alloy
roll gap 20-35mm
Output (T/h) 80~100T/h

Advantage

  • 1. Differential‑speed crushing principle: 10:1 rotating‑speed difference delivers powerful crushing performance against hard rocks.
  • 2. Heavy‑duty alloy racks: The replaceable tooth‑rack parts are made from wear‑resistant alloy, greatly lowering later‑period maintenance frequency.
  • 3. Flexible gap adjustment: The roll gap from 20‑35mm is adjustable to match different raw‑material conditions and production output targets.
  • 4. Reliable driving assembly: Matched with RS97‑18.5‑KW heavy‑load reducer, the whole‑unit operation is stable with low noise and fewer breakdowns.
  • 5. Strong compatibility: Works well with clay, coal gangue, shale whether moist or dry, fit for worldwide brick‑plant projects.
