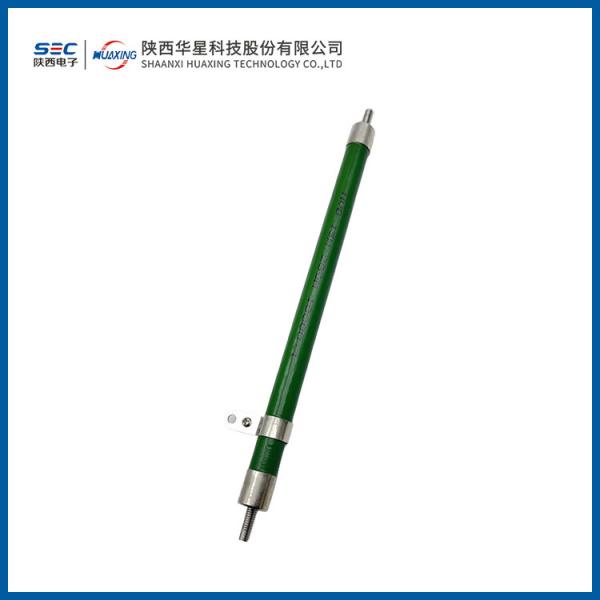

RIF82 Type Pulse High Voltage Divider
RIF82 Type Pulse High Voltage Divider
RIF82 Type Pulse High Voltage Divider
RIF82 Type Pulse High Voltage Divider
RIF82 Type Pulse High Voltage Divider
RIF82 Type Pulse High Voltage Divider
RIF82 Type Pulse High Voltage Divider
RIF82 Type Pulse High Voltage Divider
Specifications
Brand Name :
HUAXING
Model Number :
RIF82
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RIF82 type pulse high voltage divider

1. Purpose and characteristics:

the accuracy of voltage division is good, and the high working voltage and high working frequency are characterized

2. Packaging form: no insulation coating.

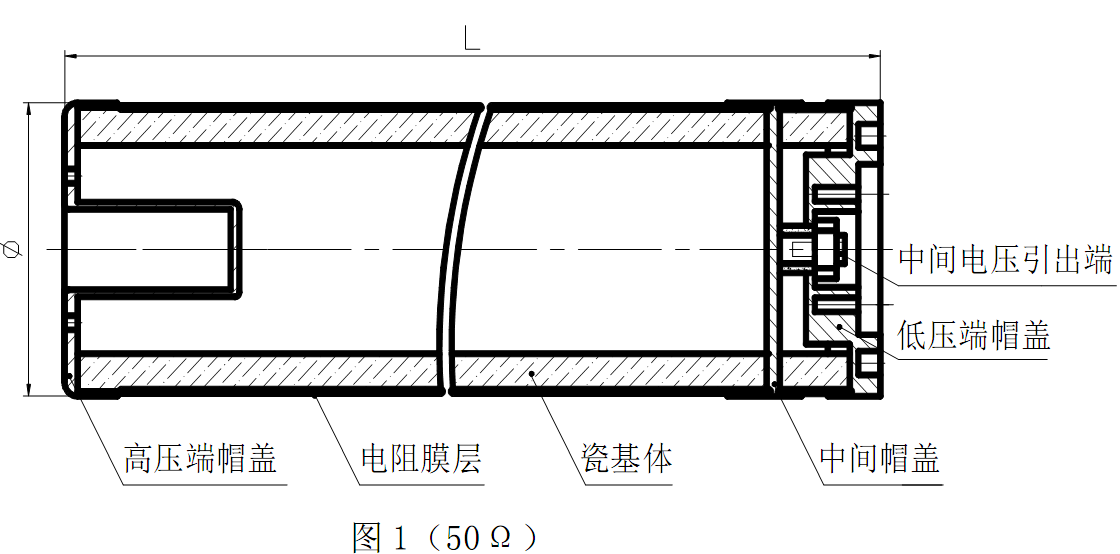

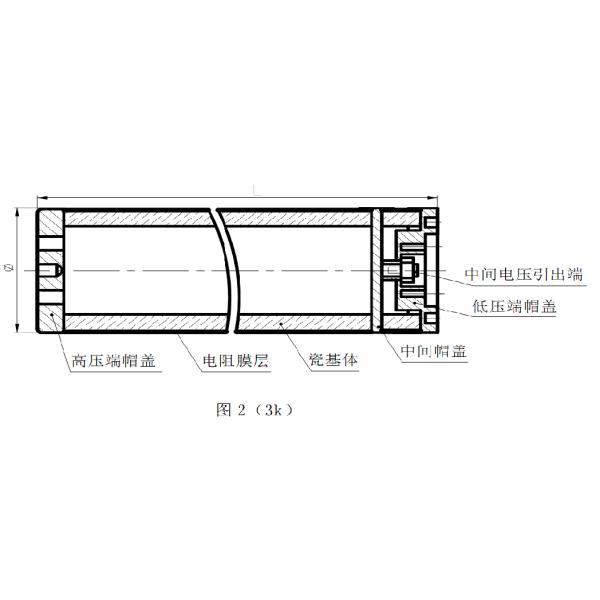

3. External size:

RIF82 Type Pulse High Voltage Divider

RIF82 Type Pulse High Voltage Divider

nominal candle-power (Ω) outline dimension (mm)

Maximum mass

(g)
High voltage arm Low voltage arm Lmax Φ max
50 0.2 400 220 6500
3k 11 400 220 6500

4. Main technical indicators:

Rated power (W) at 60℃ nominal candle-power (Ω) Nominal resistance allowable deviation (%)

resistance-temperature characteristic

(10-6/℃)

 Pulsed operating voltage (Kv)

Resistance tolerance

r (%)

 degree of linearity (%)
High voltage arm Low voltage arm High pressure arm Low voltage arm
1500 100 50 0.2 ±5 ±500 300 ±5 ±3
1500 100 3k 11 ±5 ±500 300 ±5 ±3
Rated power refers to the power in 25# transformer oil at 60℃ pulse waveform: 3kΩ:11Ω waveform is a positive 1/4 sine wave with a base width of 2.7μs~3μs; 50Ω;0.2Ω is a negative square wave with a half-wave width of 100ns~120ns
