RIF81 High Pressure High Stability Divider
RIF81 High Pressure High Stability Divider
RIF81 High Pressure High Stability Divider
RIF81 High Pressure High Stability Divider
RIF81 High Pressure High Stability Divider
RIF81 High Pressure High Stability Divider
RIF81 High Pressure High Stability Divider
RIF81 High Pressure High Stability Divider
Specifications
Brand Name :
HUAXING
Model Number :
RIF81
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RIF81 high pressure high stability divider

1. Purpose and characteristics:

the accuracy of voltage division is good, and the high working voltage and high working frequency characteristics

2. Packaging form:

no insulation coating.

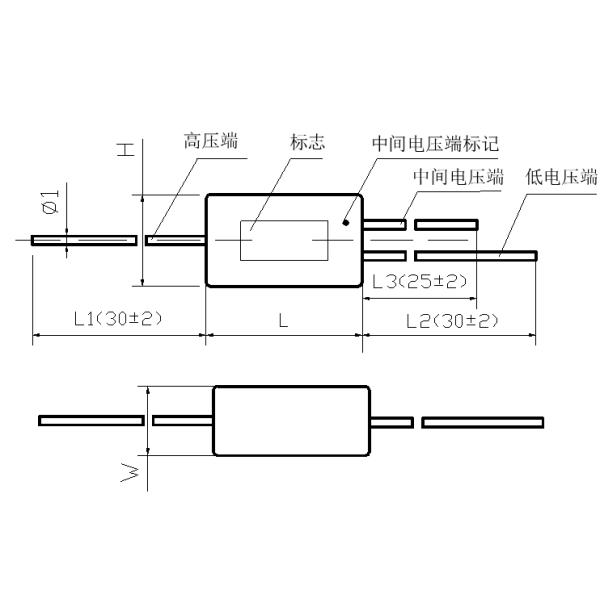

3. External size:

RIF81 High Pressure High Stability Divider

nominal power

(W)

 Shape size (mm)
L W H
1 18± 2 8±2 11±2
2 33± 2

4. Main technical indicators:

nominal power

(W)

nominal candle-power

(MΩ)

working voltage

(kv)

 voltage ratio Pressure division accuracy Resistance tolerance deviation
1 50 4 1000:1 ±2% ±3%
2 100 8

1000:1

2000:1
