RXK-2000W Water Cooled Resistor

Product Introduction:

  • Product Features: Small size, high power. Low inductance. Direct water-cooling, minimal temperature rise, high reliability, easy maintenance.
  • Applications: Automatic transmission control, power supply, power transmission, control equipment, etc.
  • Product Standard: Q/RW545-2018 RSK-2000 Water-cooled Wirewound Fixed Resistor

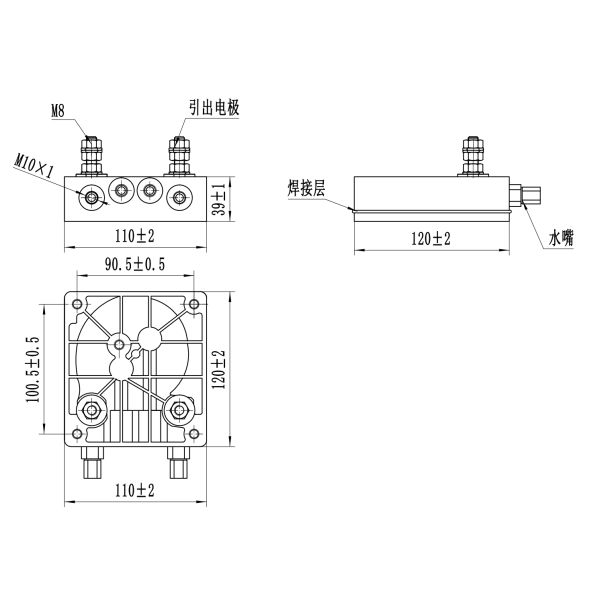

Size:
RXK-2000W Water Cooled Resistor

Specifications Model Rated Power (W) Resistance Range (Ω) Cooling Medium Medium Flow Rate (L/min) Operating Environment
RSK-2000 2000 1～10

Distilled water+Ethylene glycol

 ≥3 Temperature range: (0～+60)℃

Key Test Items:

Test items: Test conditions: Test requirements: Test Standards:
Air tightness Pressure: 1.5 MPa, 15 minutes No water leakage —
Insulation resistance Voltage: (500±50) Vdc, 1 minute, between lead-out terminal and mounting plate Insulation resistance ≥100MΩ GB/T 5729-2003 Section 4.6
Voltage withstand capability Voltage: 3000 Vac, 1 minute, between lead-out terminal and mounting plate No breakdown, arcing GB/T 5729-2003 Section 4.7
Lead-out terminal strength Torque: 3 N·m, 10 seconds ΔR ≤ ±(1%R + 0.05Ω) GB/T 5729-2003 Section 4.16
Vibration Frequency: (10-55) Hz, Amplitude: 0.75mm, 2 hours ΔR ≤ ±(5%R + 0.05Ω) GB/T 2423.10-2008
Room temperature durability Rated power, 96 hours, water flow rate: 3 L/min, Inlet water temperature: (45±3°C), Cooling water electrical conductivity: ≤5 μs/cm ΔR ≤ ±(5%R + 0.05Ω) —

Note:

  1. Installation method: Ensure that the resistor is securely fixed on the mounting surface through at least four surrounding mounting holes.
  2. The inlet of the resistor should be on the same horizontal line as or lower than the outlet.
  3. Use PVDF material water pipes of Φ6/Φ4mm specifications for inlet and outlet pipes.
  4. Before use, flush with water to remove air from the circulation loop and the resistor.
  5. Due to the high operating current of the resistor in this specification, ensure reliable electrical connections between the cable and the lead-out terminal to reduce contact resistance.
  6. The water pressure should not exceed 1.5 MPa during normal operation.
  7. Normal operating conditions: Ambient temperature: 0-60°C; Inlet temperature: 0-70°C; Inlet flow rate per resistor: 2-5 L/min; Outlet temperature: ≤80°C, Cooling water electrical conductivity ≤5 μs/cm (lower conductivity is preferred).

Ordering Example:

Model Number :RXK-2000W

Rated Power:2KW

Nominal Resistance:1Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
