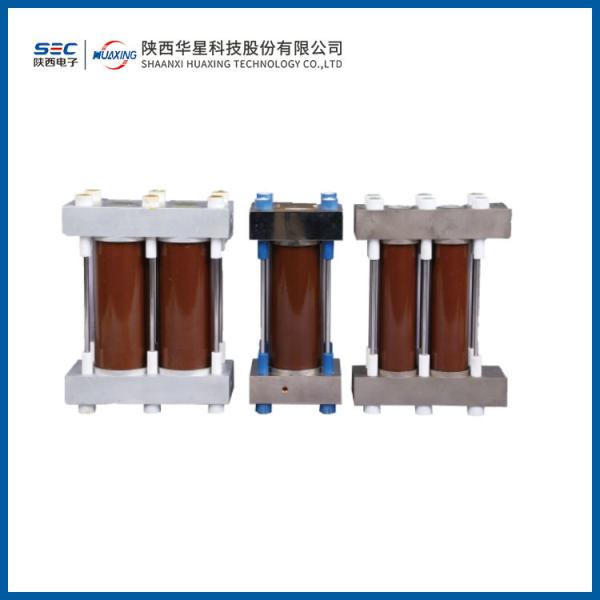

RXS-D High Power Water Cooled Resistor
RXS-D High Power Water Cooled Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RXS-D
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

RXS-D High-Power Water Cooled Resistor

Product Introduction:

  • Product Features:Small size, high power, low inductance.Direct water cooling, minimal temperature rise, high reliability, easy maintenance.
  • Applications:Used in IGBT circuits of high-power electrical and electronic equipment for capacitor discharge. Also applicable in high-power equipment for voltage division, current division, and discharge circuits.
  • Product Standard:Q/RW450-2003 Technical Conditions for Super High-Power Water-Cooled Wirewound Resistors.
  • Products can be manufactured to meet RoHS and REACH requirements.

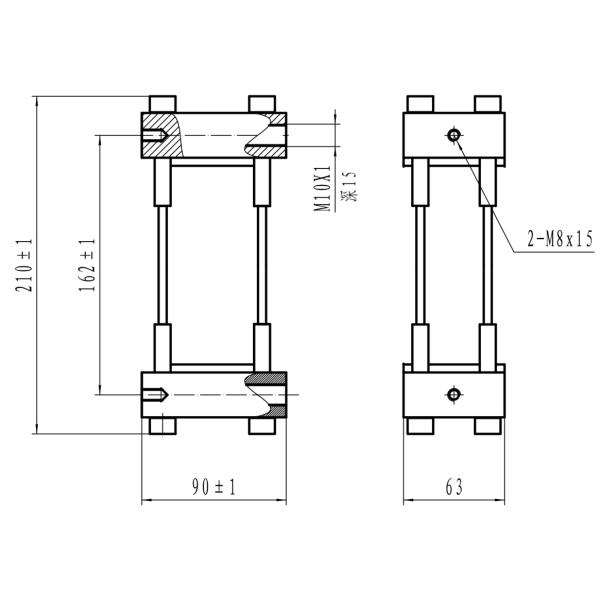

Size:
RXS-D High Power Water Cooled Resistor

specifications and models rated power(W) resistance range(Ω) Coolant coolant flow rate(L/min) working environment
RXS-A 5 0.3～3 Deionized Water+Ethylene Glycol ≥8 Temperature Range:(-25～+70)℃,Altitude:≤1000m

Key Test Items:

Test items: Test conditions: Performance requirements: Test standards:
Air tightness Pressure: 0.6 MPa, 10 minutes No water leakage —
Temperature rise of the medium Ambient temperature: (15-30) °C
Coolant, rated power		 Temperature difference between inlet and outlet ≤ 30°C —
Voltage resistance Voltage: 6 kV AC, 1 minute, between the lead-out terminal and mounting screw No breakdown, arcing GB/T 5729-2003 Section 4.7
Vibration Frequency: (1-50) Hz
Amplitude 0.075 mm or acceleration 10 m/s², 6 hours		 No damage to the seal, ΔR ≤ ± (1%R + 0.05Ω) GB/T 2423.10-1981

Ordering Example:

Model Number :RXS-D

Rated Power:5KW

Nominal Resistance:3Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
