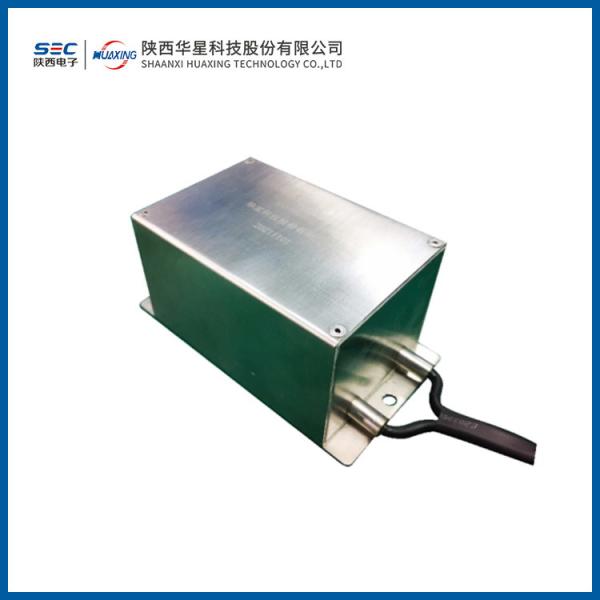

RXL-D Series Braking Power Resistor
RXL-D Series Braking Power Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RXL-D
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

RXL-D Series Braking Power Resistor

Product Introduction:

  • Product Features: High operating voltage, high braking energy, short start-up time, and low sensitivity.
  • Application Areas: Subway traction, diesel locomotives, AC/DC electric locomotives, inverter braking, and other related fields.

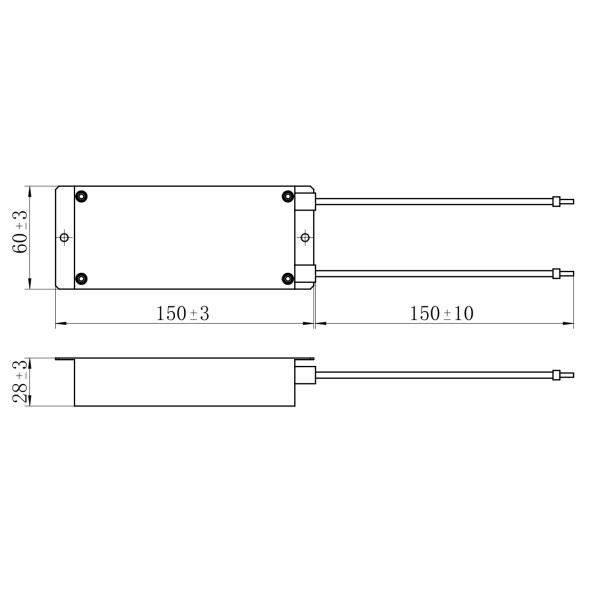

Size:

RXL-D Series Braking Power Resistor

specifications and models Peak Power(W) resistance range(Q)
RXL-D3 92K 5.6

Key Test Items:

Test Items Test Conditions Performance Requirements Test Standards
Maximum Braking Energy Absorption 92KWs No open circuit —
Pulse Energy Cycling 92KW, 1 second on, 30 minutes off, 100 cycles No open circuit —
Insulation Resistance Voltage: (500±50) Vdc, 1 minute between output terminal and casing Resistance >50MΩ GB/T 5729-2003 Section 4.6
Voltage Endurance Voltage: 2000Vac, 1 minute, between output terminal and bracket No breakdown, no arcing GB/T 5729-2003 Section 4.7
Vibration Frequency: (10-55) Hz, Amplitude: 0.2mm or Acceleration: 1.3g, 6 hours ΔR ≤ ±(1.0%R + 0.05Ω) GB/T 2423.10-2019

Note:

1,This resistor has high braking energy and short braking time, allowing for natural heat dissipation. When initially installing and using it, please read this specification and consult technical personnel to avoid operating outside the specified parameters. Pay special attention to the following points:

2,Installation: Secure the resistor to the mounting surface using the 4 mounting holes.

3,Due to the high operating current of this resistor as per the specification, ensure reliable electrical connections at the cable terminals to reduce contact resistance.

Ordering Example:

Model Number :RXL-D3

Nominal Resistance:5.6Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
