RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
RXL-A 50W Braking Power Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RXL-A 50W
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

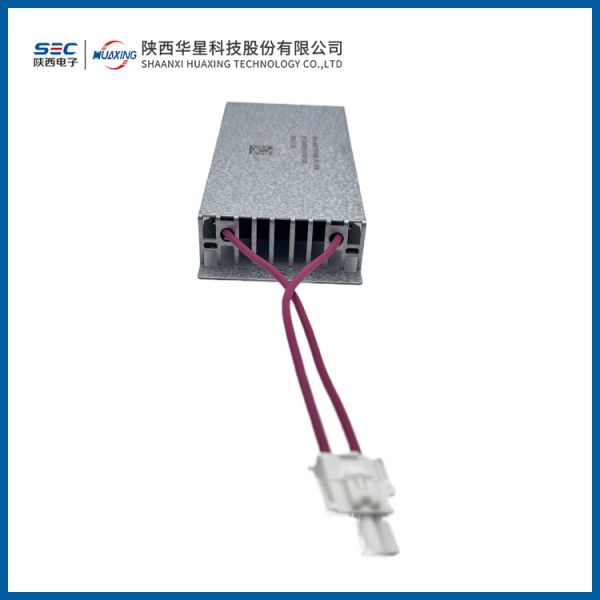

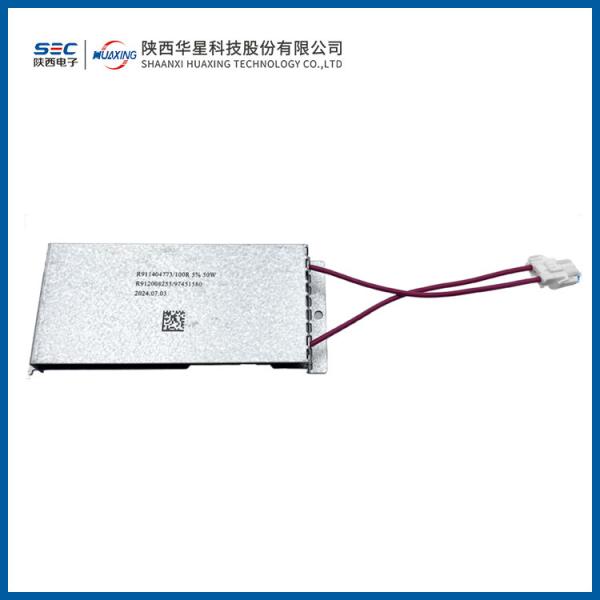

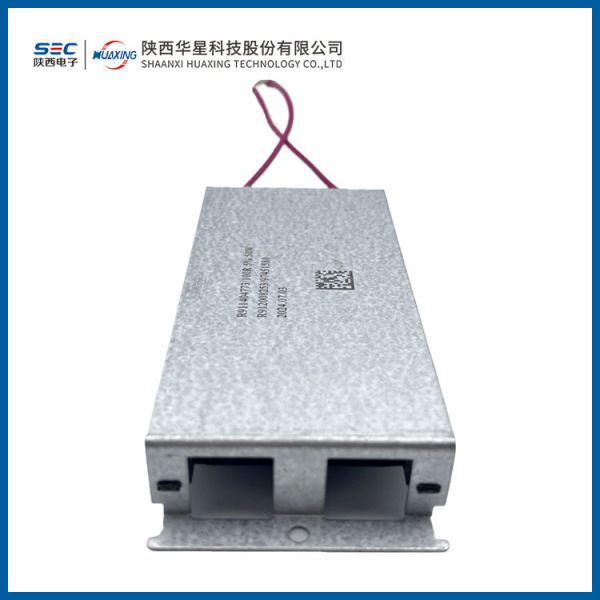

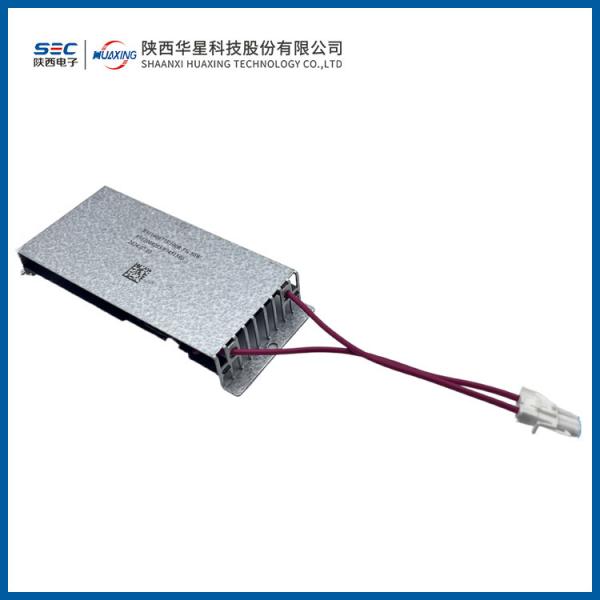

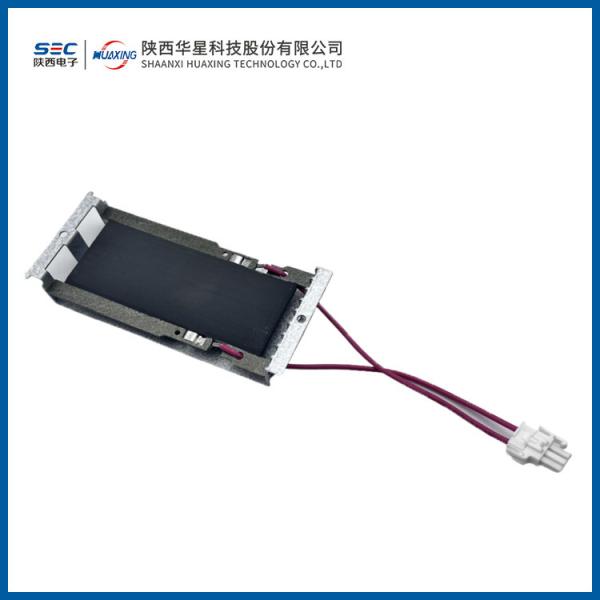

RXL-A 50W Braking Power Resistor

Product Introduction:

  • Product Features: Simple structure, excellent heat dissipation, small size, high power, and high energy absorption.
  • Application Areas: Variable frequency drive braking field.

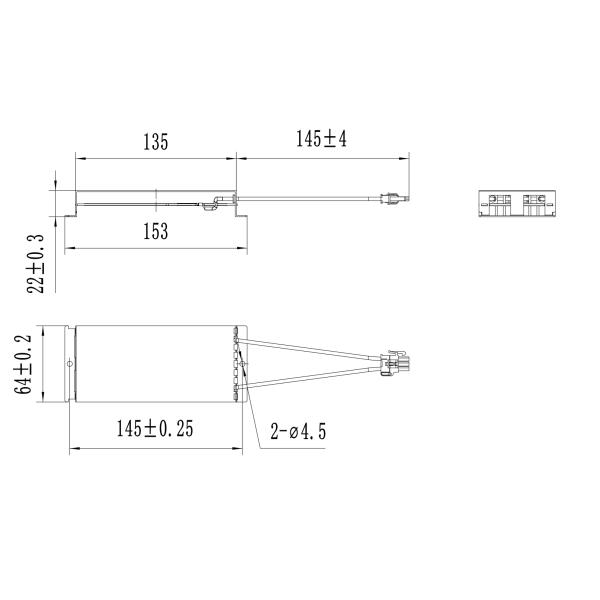

Size:

RXL-A 50W Braking Power Resistor

specifications and models rated power(W) resistance range(Q)
RXL-A-50W 50 1～500

Key Test Items:

Test Items: Test Conditions: Performance Requirements: Test Standards:
Insulation resistance Voltage: (500±50) Vdc, 1 minute, between output terminal and bracket Insulation Resistance: ≥50MΩ GB/T 5729-2003 Section 4.6
Voltage endurance Voltage: 2500Vac, 1 minute, between output terminal and bracket No breakdown, no arcing GB/T 5729-2003 Section 4.7
Vibration Frequency: (10-55) Hz, Amplitude: 0.2mm or Acceleration: 1.3g, 6 hours ΔR ≤ ±(1.0%R + 0.05Ω) GB/T 2423.10-2019
Temperature rise Ambient temperature: (15-30) ℃, rated power Temperature rise: ≤450℃ GB/T 5729-2003 Section 4.14

Note:

1,This resistor has high braking energy and short braking time, allowing for natural heat dissipation. When initially installing and using it, please read this specification and consult technical personnel to avoid operating outside the specified parameters. Pay special attention to the following points:

2,Installation: Secure the resistor to the mounting surface using the 4 mounting holes.

3,Due to the high operating current of this resistor as per the specification, ensure reliable electrical connections at the cable terminals to reduce contact resistance.

Ordering Example:

Model Number :RXL-A 50W

Rated Power:50W

Nominal Resistance:30Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
