HRR High Power Load Bank Water Cooled Load Cabinet
HRR High Power Load Bank Water Cooled Load Cabinet
HRR High Power Load Bank Water Cooled Load Cabinet
HRR High Power Load Bank Water Cooled Load Cabinet
HRR High Power Load Bank Water Cooled Load Cabinet
HRR High Power Load Bank Water Cooled Load Cabinet
Specifications
Brand Name :
HUAXING
Model Number :
HRR
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

HRR High Power Load Bank Water Cooled Load Cabinet

  • Product Features: Utilizes tap water, seawater, or other cooling fluids for efficient cooling. Wide power range, with a maximum capacity of 2MW.
  • Applications: Ship braking, marine drilling platform lifting and lowering, winch braking, and large motor braking.

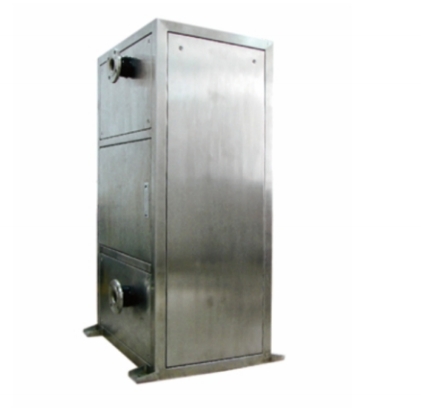

1,RXS-200KW Water-Cooled Braking Resistor for Dredgers (Beijing Siemens)

HRR High Power Load Bank Water Cooled Load Cabinet

Rated Power: 200kW

Resistance Range: 1Ω to 1KΩ

Operating Mode: P20/70

Cooling Method: Tap water or tap water with antifreeze coolant

Flow Rate: 7 to 10m3/h

Pressure: 0.6MPa

2,MNFZ-80KW Analog Load (Water-Cooled Load Cabinet)

HRR High Power Load Bank Water Cooled Load Cabinet

Rated Power: 20KW × 4 channels

Rated Resistance: 200Ω × 4 channels, ±5%

Operating Mode: Power on for 100s, off for 700s, continuous cycle

Cooling Method: LD60 cooling

Flow Rate: 30L/min

Pressure: 0.6MPa

Insulation Resistance: 5000Vdc; ≥100MΩ

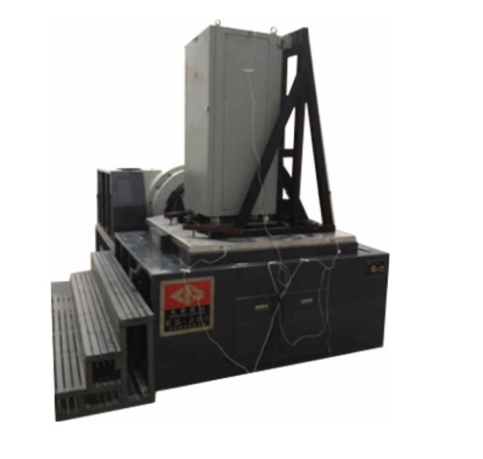

Passed vibration test

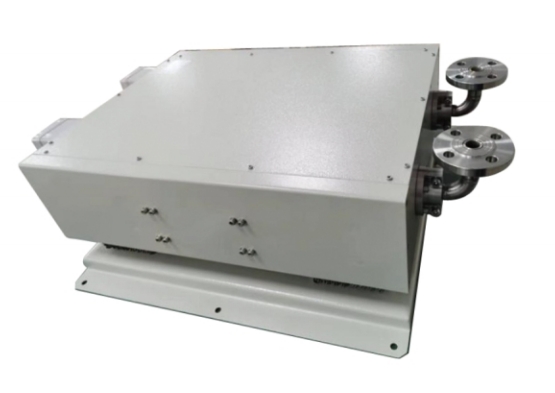

3,HRR-SL-2X4KW-4KR Water-Cooled Load

HRR High Power Load Bank Water Cooled Load Cabinet

Rated Power: 4KW × 2 channels

Rated Resistance: 4KΩ × 2 channels, ±5%

Operating Mode: Continuous operation

Cooling Method: Freshwater cooling

Flow Rate: 1.8 to 2m3/h

Pressure: 0.6MPa
Voltage Withstand: 10KVdc, 1 minute; no breakdown or arcing.
