• Product Features: Equipped with fans with excellent heat dissipation performance and temperature monitoring and protection facilities. Designed for indoor and outdoor installations as needed. Controlled by switches or contactors to adjust resistance and power, facilitating user configurations. Capable of remote control and monitoring for easy online use. Provides current and voltage display, as well as remote alarm function.
• Applications: Power testing, battery pack testing, and similar environments.

1,HRR-15KW×6-DC300V Load Cabinet

Rated Power: 15KW per channel × 6 channels; 9 segments adjustable per channel.

Control Method: 6 channels with a total of 54 segments, freely combinable with circuit breakers.

Operating Mode: Continuous operation.

Cooling Method: Forced air cooling.

Voltage Withstand: 2500Vac, 1 minute; no breakdown or arcing.

2,HRR-24P-24KW Air-Cooled Analog Load Cabinet

Rated Power: 400W per channel × 24 channels.

Rated Resistance: 200Ω per channel × 24 channels, ±5%.

Pulse Power: 1000W per channel.

Operating Mode: 1000W pulse power per channel, powered for 1 second, off for 15 seconds, continuous operation.

Cooling Method: Forced air cooling.

Voltage Withstand: 1000Vac, 1 minute; no breakdown or arcing.

3,HRR-28V-15KW Air-Cooled Intelligent Test System

Rated Power: 15KW, divided into 28 channels.

Rated Current: 28 channels, including 1 channel at 0.5A; 9 channels at 1A; 9 channels at 10A; 9 channels at 50A.

Control Method: PLC control.

Operating Mode: Continuous operation.

Cooling Method: Forced air cooling.

Voltage Withstand: 3000Vdc, 1 minute; no breakdown or arcing.

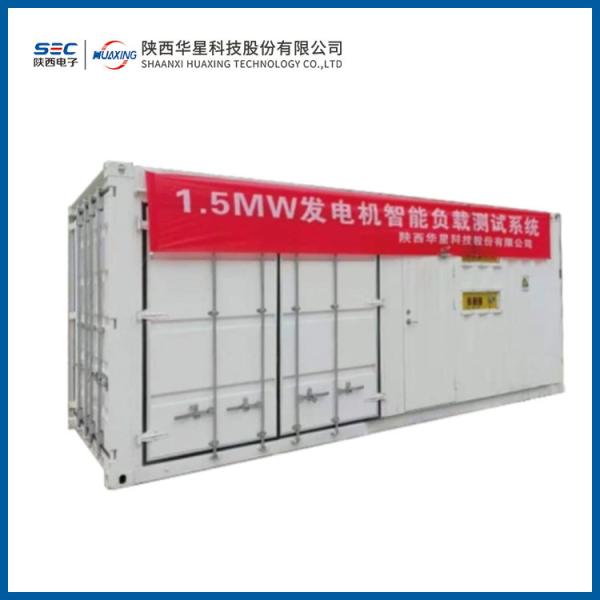

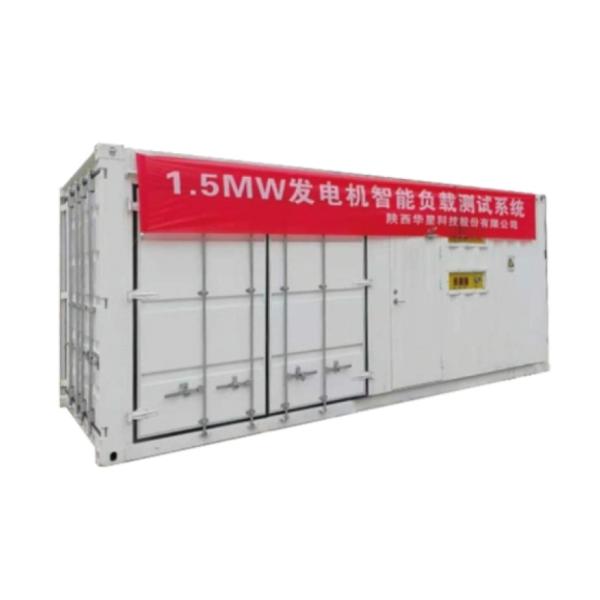

4,HRR-1.5MW Air-Cooled Intelligent Test System

Rated Power: 15KW × 5 channels + 75KW × 19 channels.

Control Method: PLC control.

Operating Mode: Continuous operation.

Cooling Method: Forced air cooling.

Voltage Withstand: 2500Vdc, 1 minute; no breakdown or arcing.
