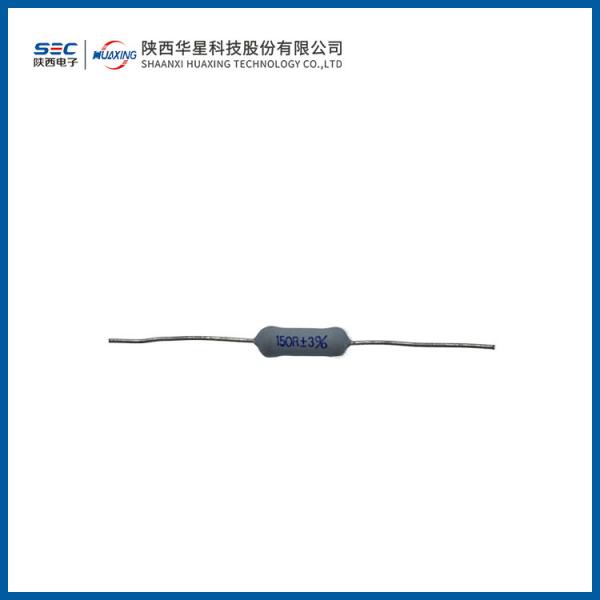

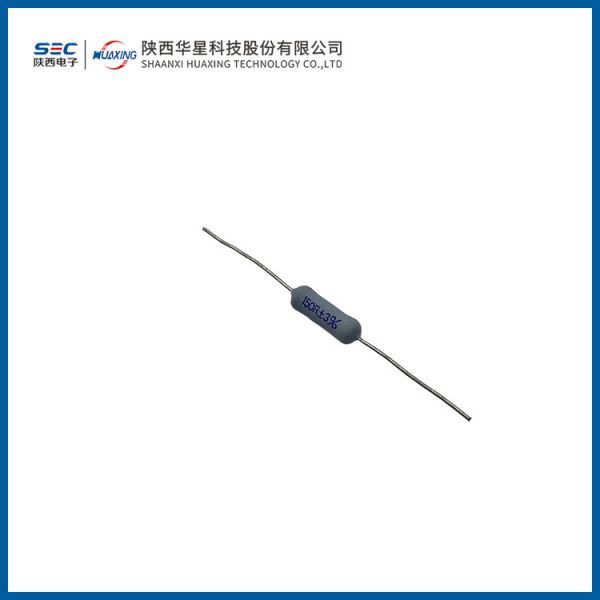

RY0992 Type Pulse Fixed Resistor
RY0992 Type Pulse Fixed Resistor
RY0992 Type Pulse Fixed Resistor
RY0992 Type Pulse Fixed Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RY0992
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RY0992 type pulse fixed resistor

1. Purpose and characteristics:

small size, strong load capacity, good surge resistance and pulse resistance, used for load, discharge and damping in pulse voltage impact electronic circuits.

2. Packaging form:

gray and green insulation coating.

3. External size:

RY0992 Type Pulse Fixed Resistor

Note: The length of lead root paint should not exceed 2 mm.

70℃ down

power rating (W)

 outline dimension mm
Lmax D max l d
2 26.5 6. 5 28±2 0.8±0.05
2S 17.0 6.5 28±2 0.8±0.05

4. Main technical indicators:

70℃ rated

power dissipation

W

nominal

resistance

Ω

nominal candle-power

allowable deviation

%

limit voltage

V

 Pulse limit voltage kv

Resistance temperature

characteristic

×10-6/℃
2 150~24K

±1, ± 2

±3, ± 5

 750 6.0 ±500
2S 50~24K 500 5.0
