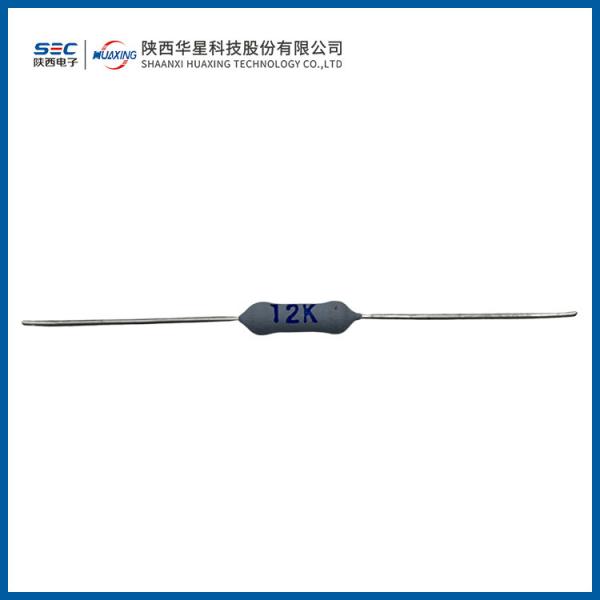

RY0993 Type Pulse Oxide Film Resistor
RY0993 Type Pulse Oxide Film Resistor
RY0993 Type Pulse Oxide Film Resistor
RY0993 Type Pulse Oxide Film Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RY0993
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RY0993 type pulse oxide film resistor

1. Purpose and characteristics:

small size, strong load capacity, good surge resistance and pulse resistance, used for load, discharge and damping in pulse voltage impact electronic circuits.

2. Packaging form:

green insulating paint coating

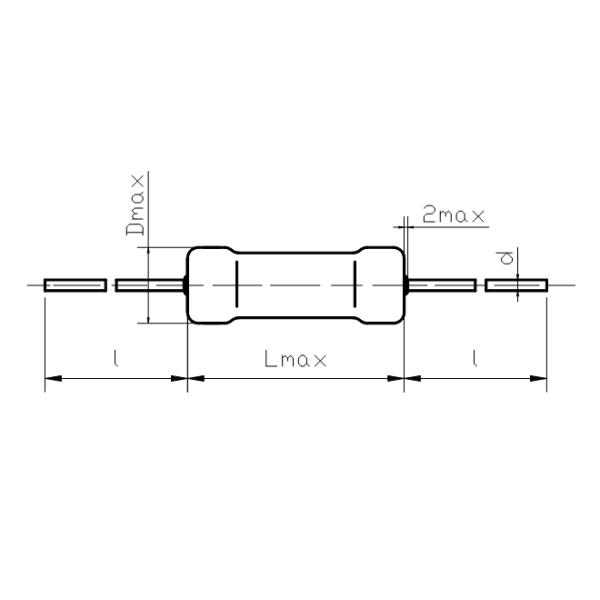

3. External size:

RY0993 Type Pulse Oxide Film Resistor

Note: The length of the lead root paint should not exceed 2 mm.

Rated power consumption at 70℃

(WS)

nominal candle-power

Ω

 outline dimension mm
Lmax D max l d
2 50~510k 17.0 6. 5 28±2 0.7±0.05

4. Main technical indicators:

70℃ rated power consumption

(WS)

nominal candle-power

(Ω)

 Nominal resistance tolerance (%)

Component limit voltage

(DC or AC RMS) V

Pulse limit voltage

(kv)

Resistance temperature

characteristic

×10-6/℃
2 50~510k

±1, ±2,

±3, ±5,

 500 5000 200
