Specifications
Model Number :
HX-Patch Cord-33
Place of Origin :
Guangdong, China
Brand Name :
HXFiber
Packaging Details :
paper box
Supply Ability :
1500000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
Negotiable
Type :
Fiber optic patch cord
Use :
FTTA
Warranty Time :
10 Years
Custom length :
30/50/70/100m or as your inquiry
Insertion Loss :
< 0.3 dB
Cable diameter :
5.0mm, 7.0mm
Return loss :
> 55 dB
Material of Outer sheath :
PVC,LSZH,PU,PE
Armored Tube :
with steel armored
Working Temperature(℃) :
-25℃~+70℃
Connector Ferrule :
Zirconia Ceramic
Polish Type :
SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC
MOQ :
1pcs
Port :
shenzhen
Description
200m 2/4 Cores SM LC SC FC CPRI Waterproof FTTA Jumper Armored Fiber Optic Cable 7.0mm 2C 4C
Products Description
SM LC SC FC CPRI Waterproof FTTA Jumper Armored Fiber Optic Cable 7.0mm 2C 4C
Connector Type
LC to LC
Jacket OD
7.0mm
Fiber Mode
9/125μm
Jacket Color
Black
Polish Type
UPC to UPC
Wavelength
1310/1550nm
Fiber Count
Duplex
Jacket Material
LSZH
Insertion loss
≤0.3dB
Interchangeability
≤0.2dB
Return loss
≥55dB
Vibration
≤0.2dB
Operating temperature
-40~75°C
Storage temperature
-45~85°C
Length
2/5/10/15/20m/100m customized length
delivery date
3-7days according the quantity
SM LC SC FC CPRI Waterproof FTTA Jumper Armored Fiber Optic Cable 7.0mm 2C 4C
7.0mm Armored Fiber Patch Cord

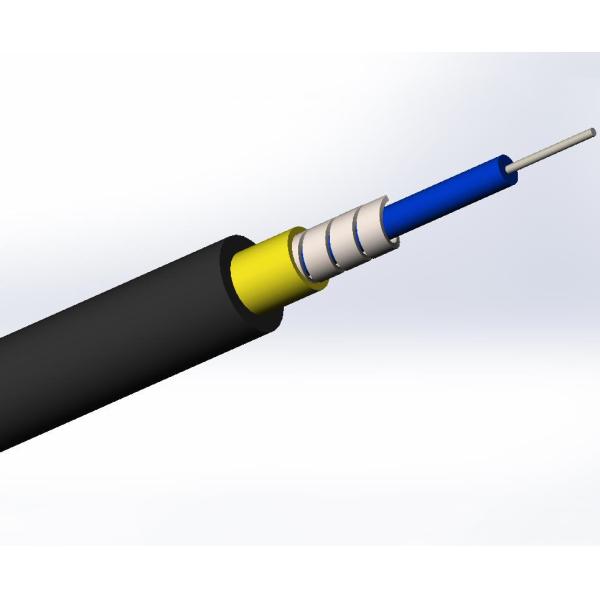

Structure:
tight-buffered fiber+ Steel Armored + Aramid yarn + jacket
Tight-buffered fiber:
SM:G652D,G657A1,G657A2 MM:62.5/125,50/125(OM3,OM4)
Available 0.9mm PVC tight-buffered fiber
Color:
SM/ White or yellow /
MM/Blue or orange
Characteristics:
1. Suitable for telecommuniction networks
2. Type: FC, SC, ST, MU, LC ,MTRJ,MPO,SMA,E2000,DIN
3. High durability and reliability
4. Low insertion loss and high return loss
5. Single mode/multi mode, PC/UPC/APC patch cord and pigtail available
6. Single core, 2 cores, 4 cres, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available
