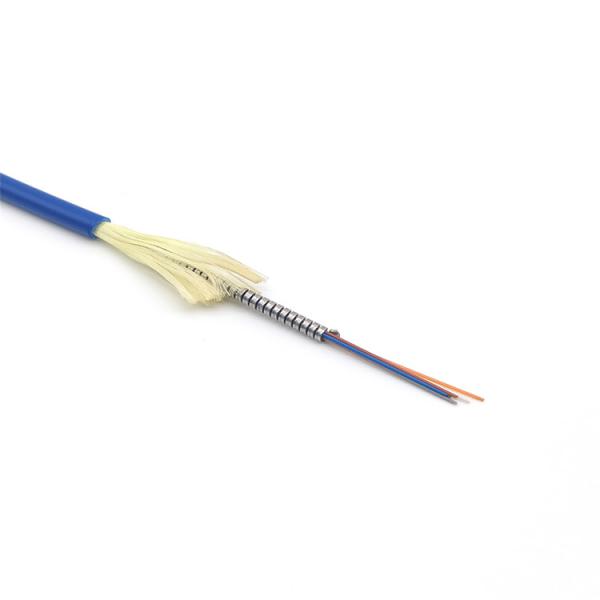

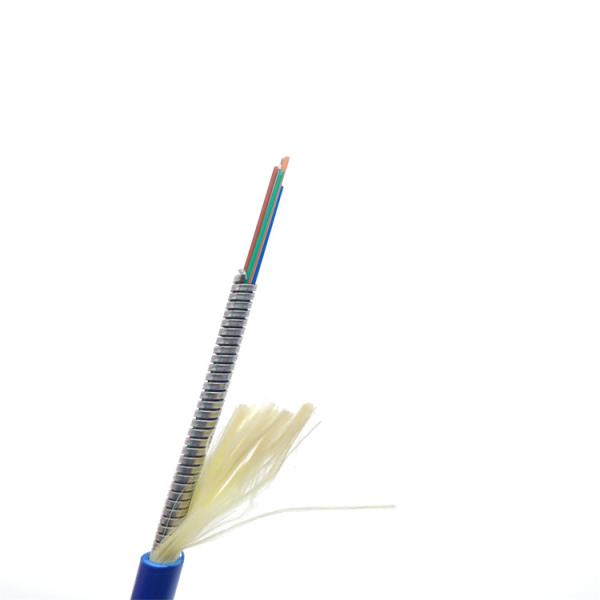

Stainless Steel OM3 OM4 Armored Fiber 6 Core G652D PVC LSZH

Specifications

Model Number :

HX-GQJG-09

Place of Origin :

Guangdong, China

Brand Name :

HXFiber

Packaging Details :

1KM/drum or 2KM/drum packaged with wooden

Supply Ability :

15000 Kilometer/Kilometers per Month

Price :

Negotiable

Type :

Armored Fiber Optic Cable, Armored Fiber Optic Cable

Number of Conductors :

Number of cores :

1-24 core

Fiber type :

OM2 / OM3 / OM4 / G652D / G657A1 / G657A2

Material of Armored Tube :

Stainless steel

Material of Outer sheath :

PVC,LSZH,PU,PE

Working Temperature(℃) :

-20℃~+70℃

Bending radius(Dynamic) :

10D

Bending radius(Static) :

20D

MOQ :

1KM

Delivery date :

3-7 Days

Port :

shenzhen

Description

6 Core G652D PVC LSZH Tight/Loose Tube Anti-Rodent Armored Fiber Optic Cable for Outdoor

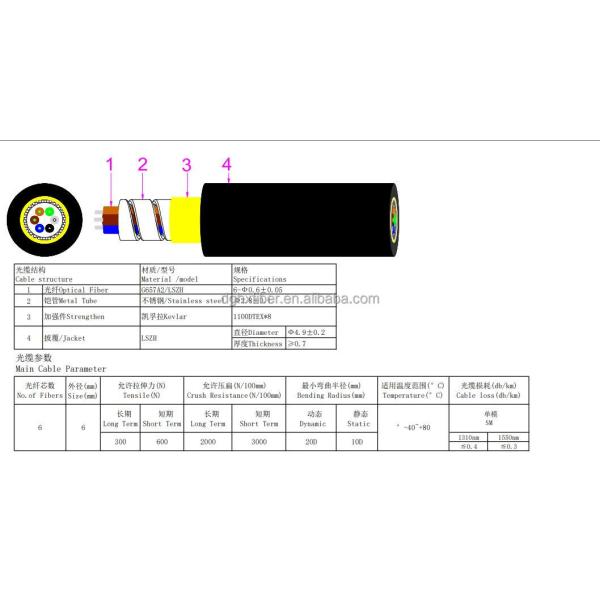

Products Description

Item	Value
Type	Outdoor/Indoor Fiber Optic Cable
Place of Origin	Guangdong CHINA
Brand	OEM
Number of Conductors	≥ 6
Product name	Distributed sensing fiber optic cable
Application	chemical plant, oil refinery, forest, subway...
Fiber	G657A1 G657A2
Cable OD.	6.0mm
HS CODE	8544700000
Armored	Spiral steel armored protected
Mode	SingleMode
Metal Braiding	Stainless steel
Tensile	Kevlar
Temperature(°C)	-20~+75°C
Cable loss(db/km)	1310nm ≦0.35 ; 1550nm ≦0.2
Tensile(N)	Long Term: 300N ; Short Term : 600N
Bending Radius(mm)	Dynamic 20D, Static 10D

1 Core

Armored Fiber Optic Cable,

Anti-Rodent,

Anti-Bending.

2 Cores

Armored Fiber Optic Cable,

Anti-Rodent,

Anti-Bending.

4 Cores

Armored Fiber Optic Cable,

Anti-Rodent,

Anti-Bending.

6 Cores

Armored Fiber Optic Cable,

Anti-Rodent,

Anti-Bending.

12 Cores

Armored Fiber Optic Cable,

Anti-Rodent,

Anti-Bending.

Armored Tube

Stainless steel Armored Tube,

More Products

Company View

Exhibitions

Cooperation

Certifications

Production Line

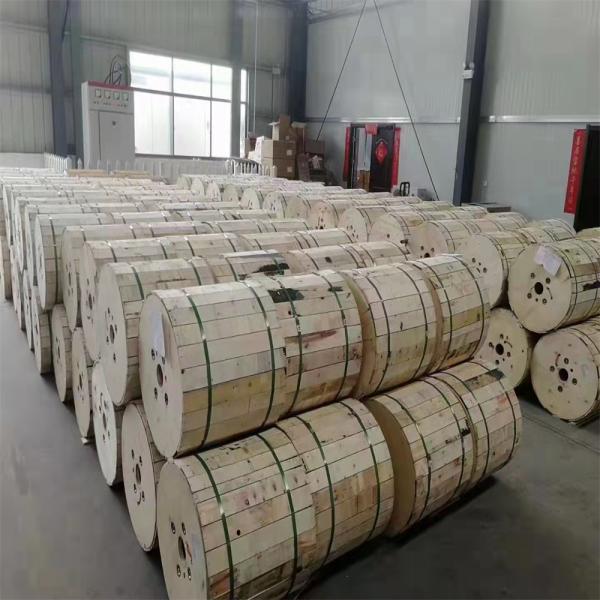

Packaging&Shipping
