GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
Specifications
Model Number :
HX-LXK3
Place of Origin :
Guangdong, China
Brand Name :
HX Fiber
Certification :
RoHS
Packaging Details :
Wooden shaft+Export cardboard box
Supply Ability :
1500000 Piece/Pieces per Month
MOQ :
1000 meters
Price :
Negotiable
Type :
Fiber Optic Cable, Indoor
Number of Conductors :
≥ 10
Color :
Customized Color
Product name :
Spiral Steel Armored Optical Fiber Cable
Application :
Telecom Comunication
Jacket :
PVC LSZH LSOH PE HDPE
Length :
Custom Length
Package :
Wooden Drum
Fiber Type :
G652D/G657A1/G657A2
Service :
OEM ODM Accept
Port :
Shenzhen
Description

Custom Length PVC Jacket GJFJKV SM / MM Indoor Spiral Steel Armored Fiber Optic Cable

PRODUCT PARAMETERS
Tabulation
Single mode
Multi mode
Multi mode
Fiber core diameter
9±0.4
50±2.5
62.5±2.5
Cladding diameter
125±1
125±1
125±1
Fiber optic cable loss
0.4bd/km@1310nm
3.5bd/km@850nm
3.5bd/km@850nm
0.3bd/km@1550nm
1.5bd/km@1300nm
1.5bd/km@1300nm
Outer diameter of fiber optic cable
2.9±0.1
Number of fiber cores
2Core (multi core customizable)
Fiber optic cable weight
~15
Temperature performance
-20 ℃ -+70 ℃
Bending radius
Dynamic 20x OD/Static 10x OD
Compressive strength
Long term 1000/Short term 3000
Tensile strength
Dynamic 300/Static 600
Sheath material
PVC, LSZH, PE, PU, PTEE, SGS, UL
Sheath color
Multiple colors available
PRODUCT DESCRIPTION
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured

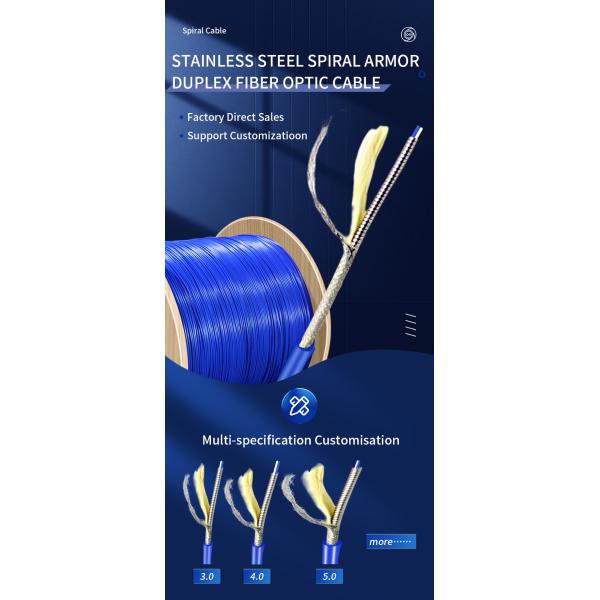

STAINLESS STEEL SPIRAL ARMOR DUPLEX FIBER OPTIC CABLE
Factory Direct Sales Support Customizatioon
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured

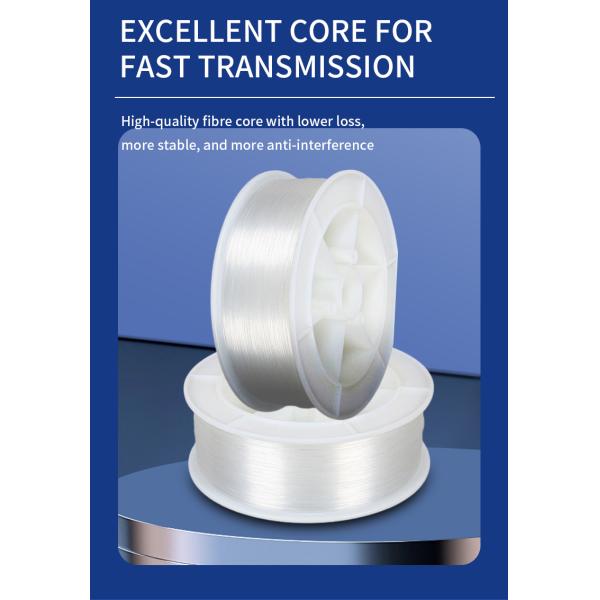

EXCELLENT CORE FOR FAST TRANSMISSION
High-quality fibre core with lower loss, more stable, and more anti-interference
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured

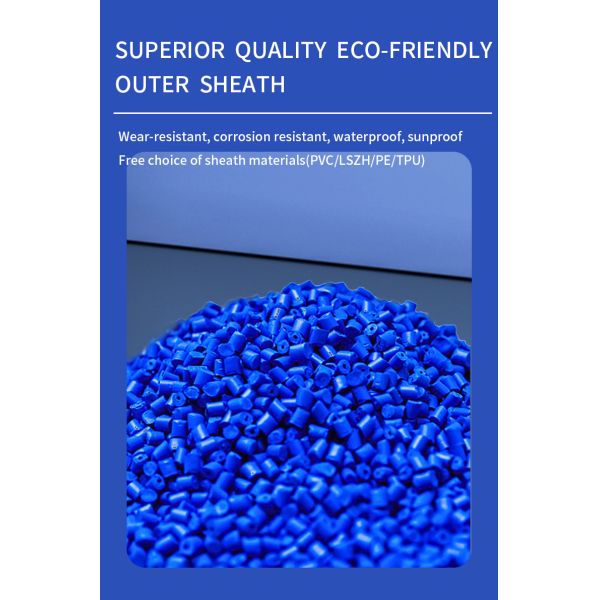

SUPERIOR QUALITY ECO-FRIENDLY OUTER SHEATH
Wear-resistant, corrosion resistant, waterproof, sunproof Free choice of sheath materials(PVC/LSZH/PE/TPU)
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured

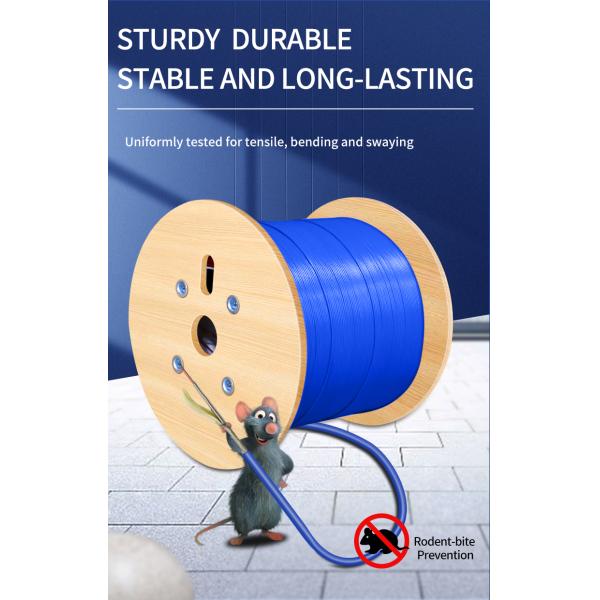

STURDY,DURABLE,STABLE AND LONG-LASTING
Uniformly tested for tensile, bending and swaying
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured

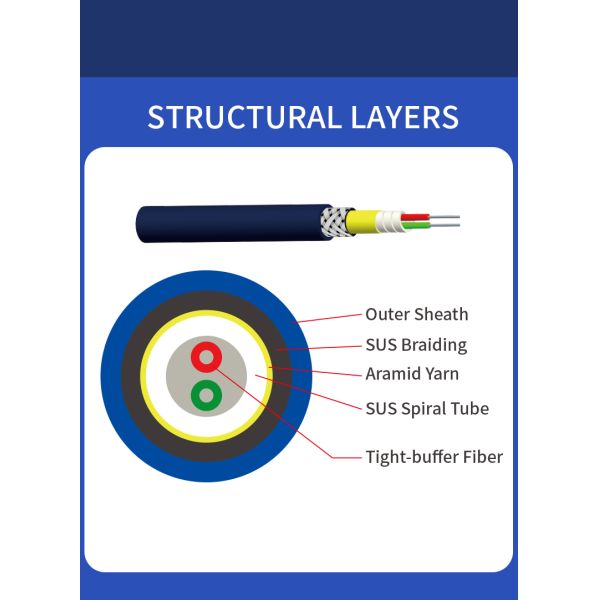

STRUCTURAL LAYERS
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
PRODUCT DESIGN
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
COMPANY PROFILE
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept
SERVICE & PRODUCTION CAPACITY
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
FOREIGN EXHIBITIONS
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
COOPERATIVE BRAND & CERTIFICATION
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
PAYMENT & TRANSPORTATION METHOD
GJFJKV SM / MM Armored Optical Fiber PVC Jacket Fibre Optic Cable Armoured
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
