Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Specifications
Model Number :
HX-GQJG-13
Place of Origin :
Guangdong, China
Brand Name :
HXFiber
MOQ :
1000
Price :
CN¥0.5514-0.6892
Number of Conductors :
6
Number of cores :
1-48 core
Fiber type :
OM1/OM2/OM3/OM4/G652D/G657A1/G657A2
Armored Tube Material :
Stainless steel
Outer sheath Material :
PVC,LSZH,PU,PE
Working Temperature :
-20℃~+70℃
Dynamic Bending Radius :
10D
Static Bending Radius :
20D
Cable OD :
3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm
Cable Loss :
850nm ≦3.5 ; 1300nm ≦1.5
Long Term Tensile :
300N
Short Term Tensile :
500N
Fiber Diameter :
9/125um, 62.5/125um, 50/125um
Armored Protection :
Spiral steel armored
Fiber Mode :
Singlemode, MultiMode
Description

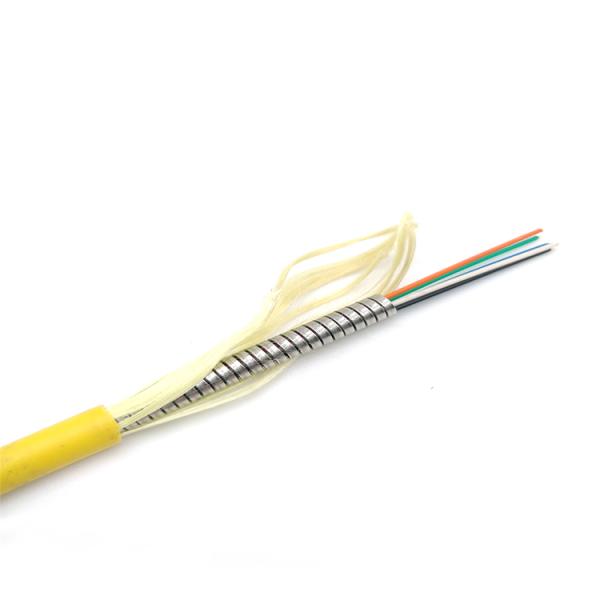

Stainless Steel Tube Armored Fiber Optic Cable
High-performance flexible armored fiber optic cable with stainless steel protection, designed for demanding industrial environments.
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
SpecificationDetails
TypeOutdoor/Indoor Fiber Optic Cable
Place of OriginGuangdong, China
BrandOEM
Number of Conductors≥ 1
Product NameArmored Fiber Optic Cable
ApplicationChemical plant, oil refinery, forest, subway
Fiber Types9/125um, 62.5/125um, 50/125um
Cable OD3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm
HS CODE8544700000
Armored ProtectionSpiral steel armored
ModeSinglemode, MultiMode
SM/MM StandardsG.652D, G.657A1 or G.657A2, OM1, OM2, OM3, OM4
Metal BraidingStainless steel
Tensile ReinforcementKevlar
Temperature Range-20°C to +75°C
Cable Loss850nm ≤3.5 db/km; 1300nm ≤1.5 db/km
Tensile StrengthLong Term: 300N; Short Term: 500N
Bending RadiusDynamic 20D, Static 10D
Product Features
  • Mini diameter SUS spring tube reinforced ensures excellent crush resistance
  • Kevlar strengthening provides superior tensile strength
  • LSZH Outer jacket complies with UL and RoHS standards
  • Anti-rodent and anti-bending protection
  • Flexible armored design for easy installation
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Applications
Applied to the patch cord of optical terminals, indoor/outdoor FTTH installations, optical distribution networks, and connections between optical cable and communication equipment rooms.
Ideal for chemical plants, oil refineries, forests, subways, and other demanding environments.
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Available Core Configurations
1 Core Armored Fiber Optic Cable
Anti-Rodent, Anti-Bending
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
2 Core Armored Fiber Optic Cable
Anti-Rodent, Anti-Bending
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
4 Core Armored Fiber Optic Cable
Anti-Rodent, Anti-Bending
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
6 Core Armored Fiber Optic Cable
Anti-Rodent, Anti-Bending
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
12 Core Armored Fiber Optic Cable
Anti-Rodent, Anti-Bending
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
Armored Tube Construction
Stainless steel armored tube provides superior mechanical protection and durability.
Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use
