11KV ARC Cable Branch Box Compact Transformer Substation IP4X for Dock
11KV ARC Cable Branch Box Compact Transformer Substation IP4X for Dock
11KV ARC Cable Branch Box Compact Transformer Substation IP4X for Dock
11KV ARC Cable Branch Box Compact Transformer Substation IP4X for Dock
Specifications
Brand Name :
Bosun
Certification :
ISO9001, CE, CQC,CCC
Place of Origin :
Chongqing
MOQ :
1
Price :
999 - 9999 USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000 PCS per Month
Delivery Time :
15 Working Days
Packaging Details :
Wooden case
Product Name :
Cable Branch Box Compact Transformer Substation
Color :
As required
ODM/OEM :
Accepted
Certificate :
ISO,9001 CQC,CCC,CE
Payment :
T/T L/C
Packing :
Wooden Case
Description

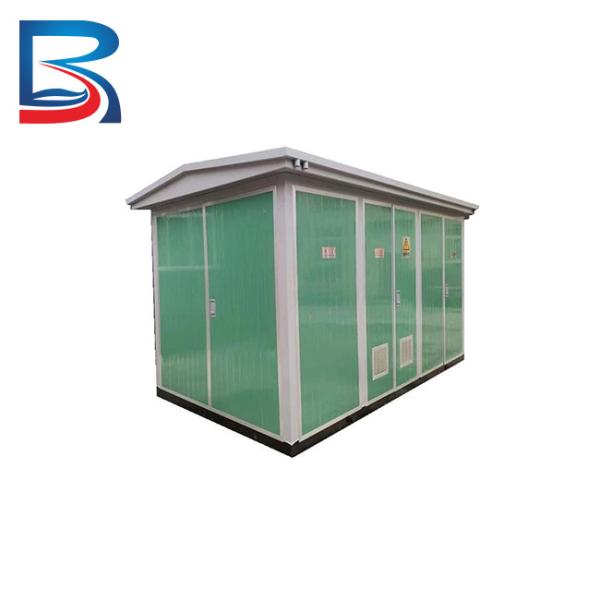

IP4X 11KV Arc Cable Branch Box Compact Transformer Substation for Dock

Product Description

The Compact Transformer Substations have the characteristics of strong complete set, small size, compact structure, safe and reliable operation, convenient maintenance, and mobility. Compared with conventional civil substations, box-type substations of the same capacity usually occupies only It is 1/10~1/5 of the conventional substation, which greatly reduces the design workload and construction volume, and reduces the construction cost. In the power distribution system, it can be used in the ring network power distribution system, and can also be used in the dual power supply or radiation terminal power distribution system. It is a new complete set of equipment for the construction and transformation of current urban and rural substations.


This series of substations are suitable for 12kv, 50HZ three-phase AC systems with a capacity configuration below 2500kva, residential quarters, commercial buildings, hotels, high and low buildings, industrial and mining enterprises and other places. It is suitable for ring network power supply and also suitable for radiation terminal power supply.

Normal Use Conditions

Ambient temperature: -25°C~40°C
The vertical inclination does not exceed 5°
The altitude does not exceed 1000 meters
Outdoor wind speed does not exceed 35m/s

Specification

Rated Voltage 12/17.5/24kV 36kV

Standard applicable

 IEC 62271 – 202 (IEC 61330) IEC 62271 – 202 (IEC 61330)
Normal ambient temperature 40 ° C 40 ° C
Maximum ambient temperature 50 ° C 50 ° C
Enclosure construction Modular Modular
Ventilation Natural Natural
Temperature class (Std.) K 10 K 10
Degree of protection
MV and LV compartment IP 54 IP 54
Transformer compartment IP 23 IP 23
MV Switchgear
Rated voltage (kV) 12/24kV 36kV
Rated insulation level
Power frequency (kV rms) 28/50 70
Impulse (kV p) 75/125 170
Rated frequency (Hz) 50/60 50/60
Rated normal current (A) 630 630
Breaking capacity (A) 630 630
Making capacity (kA) 52.5 / 40 50
Rated normal current (A) 630 630
Breaking capacity (kA) 21/16 20
Making capacity (kA) 52.5 / 40 50
Rated power (kVA) – oil type 2500 2000
Rated power (kVA) – Dry type 2500 2000
Rated secondary voltage (V) 433 433
Vector group Dyn 11 Dyn 11
Tapping range + 5 in steps of 2.5% + 5 in steps of 2.5%
IP Yes Yes
Internal arc Yes Yes
Enclosure class Yes Yes
Impact test Yes Yes
Short circuit test on earthing Yes Yes

Production Facilities

11KV ARC Cable Branch Box Compact Transformer Substation IP4X for Dock

Engineering

1.Power generation plants

2.Substations

3.Commercial buildings

4.Data centers

5.Renewable energy systems

6.Transportation

Packing

11KV ARC Cable Branch Box Compact Transformer Substation IP4X for Dock
