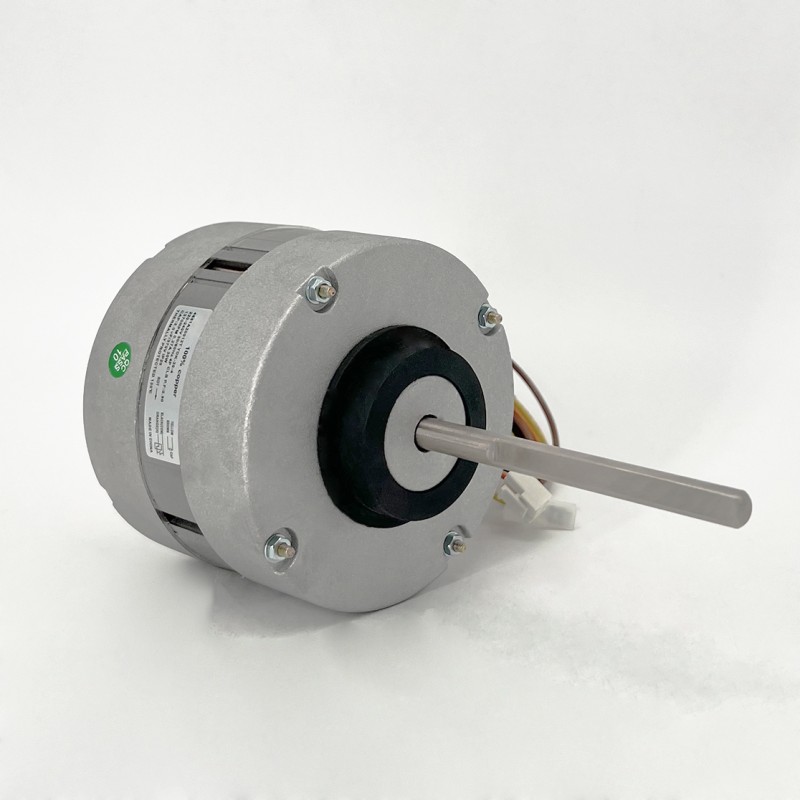

AC Fan Motor - 1/25 220-240V 50/60HZ 1370RPM
AC Fan Motor - 1/25 220-240V 50/60HZ 1370RPM
AC Fan Motor - 1/25 220-240V 50/60HZ 1370RPM
AC Fan Motor - 1/25 220-240V 50/60HZ 1370RPM
AC Fan Motor - 1/25 220-240V 50/60HZ 1370RPM
AC Fan Motor - 1/25 220-240V 50/60HZ 1370RPM
Specifications
Brand Name :
trusTec
Model Number :
YDK-30-4-EGK
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
AC Air Conditioner Fan Motor
Frame :
95mm/3.74"
Motor Type :
Permanent Split Capacitor
Supply Voltage :
220-240V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
50/60HZ
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
0.27A
Phase :
Single Phase
Output HP :
1/25HP 30W
Shaft Flat :
One Flat
Speed :
1370RPM
Mounting Orientation :
All Angle
Capacitor :
2uF/370V
Insulation Class :
Class B
Max. Ambient Temperature :
40℃/104℉
Bearings :
Ball Bearing
Pole :
4P
Rotation :
CW-LE
PF :
0.90
Shaft Diameter :
8mm/0.31"
Shaft Length :
102mm/4.02"
Flat Length :
65mm/ 2.56"
Lead Length :
700mm/27.56"
Motor Shell Length :
70mm/2.76"
