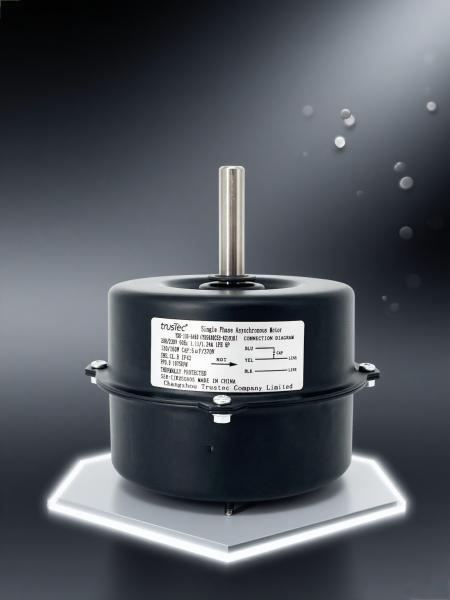

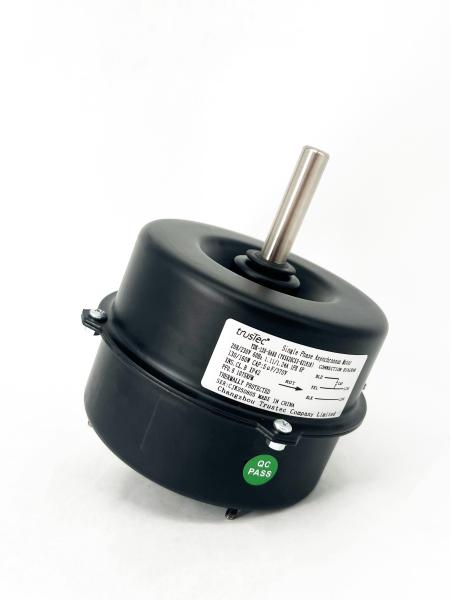

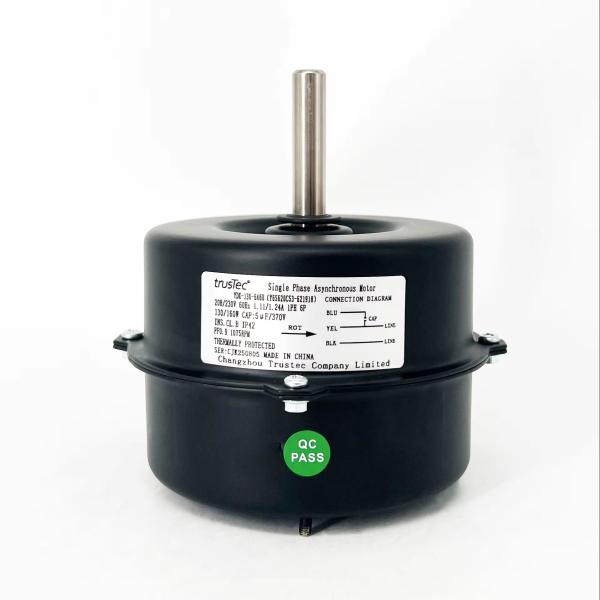

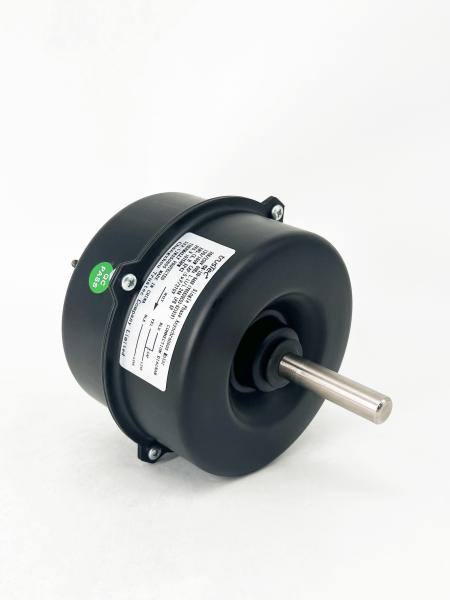

AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2 Shaft Diameter
AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2 Shaft Diameter
AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2 Shaft Diameter
AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2 Shaft Diameter
AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2 Shaft Diameter
AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2 Shaft Diameter
AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2 Shaft Diameter
AC Outdoor Fan Motor for Air Conditioner with 95mm Frame 24 Months Warranty and 1/2 Shaft Diameter
Specifications
Model Number :
YDK-130-6A60-CJK
Brand Name :
trusTec
Place of Origin :
Jiangsu, China
MOQ :
200
Price :
$20.20-21.60
AC Voltage :
208/230V
Rated Power :
130/160W
Rated Speed :
1075RPM
Frame Size :
95mm
Motor Type :
Permanent Split Capacitor
Enclosure Type :
TEAO (Totally Enclosed Air Over)
Phase :
Single Phase
Shaft Diameter :
1/2" / 12.7mm
Shaft Length :
2.24" / 57mm
Flat Length :
1.57" /40mm
Motor Shell Length :
3.58" / 91mm
Lead Length :
43.3" / 1100mm
Supply Frequency :
60Hz
Current :
1.11/1.24A
Insulation Class :
Class B
Description

Features and Specifications:

Product
Outdoor Fan Motor
Motor Type
Permanent Split Capacitor
Enclosure Type
TEAO (Totally Enclosed Air Over)
Thermal Overload
Equipped With An Automatic Thermal Overload
Phase
Single Phase
Shaft Flats
One Flat
Mounting Orientation
All Angle
Bearings
Ball Bearing
Mounting
Stud Mounting All Angel
Max. Ambient Temperature
40℃/104℉
Frame
95mm
Supply Voltage
208/230V
Supply Frequency
60Hz
Current
1.11/1.24A
Output HP
130/160W
Rated Speed
1075RPM
Pole
6P
IP
42
Capacitor
5uF/370V
Insulation Class
Class B
Shaft Diameter
1/2" / 12.7mm
Shaft Length
2.24" / 57mm
Flat Length
1.57" /40mm
Motor Shell Length
3.58" / 91mm
Lead Length
43.3" / 1100mm
Rotation
CCW-SE
