220V 1/5HP YDK/YSK139/140 Double Shaft Window Air Conditioner Unit Blower Fan Motor
220V 1/5HP YDK/YSK139/140 Double Shaft Window Air Conditioner Unit Blower Fan Motor
220V 1/5HP YDK/YSK139/140 Double Shaft Window Air Conditioner Unit Blower Fan Motor
220V 1/5HP YDK/YSK139/140 Double Shaft Window Air Conditioner Unit Blower Fan Motor
220V 1/5HP YDK/YSK139/140 Double Shaft Window Air Conditioner Unit Blower Fan Motor
220V 1/5HP YDK/YSK139/140 Double Shaft Window Air Conditioner Unit Blower Fan Motor
Specifications
Brand Name :
trusTec
Model Number :
YDK/YSK139/140
Certification :
UL Approval E529388，CE approval
Place of Origin :
China
MOQ :
200pcs
Price :
Please contact for a quote
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
20 work days after order confirmation.
Packaging Details :
standard export carton packing, foam board inside for protection.
Product Name :
window air conditioner fan motor
Voltage :
110-120V / 220-240V 1PH
Frequency :
50/60Hz
Power :
1/8-1HP
Speed :
600-1800RPM 4/6P
Rotation :
CW/CCW/Reversible
ODM Solutions :
ODM Solutions: Customized AC and EC motors
Description

Window ac unit air conditioner blower fan motor, universal air conditioner fan motor-YDK/YSK139/140

Technical parameters:
Model series YDK/YSK140
Voltage 110-120V / 220-240V 1PH
Frequency 50Hz / 60Hz / 50/60Hz
Power 1/8-1HP 100W-750W
Speed 600-1800RPM 4/6P
Speeds single/multi speeds
Rotation CW/CCW/Reversible
Insulation B/F
Proof IP20-IP54
Protection thermally protected
Enclosure totally enclosed/open ventilated

Model
Voltage
Frequency
Power
Power
Speed

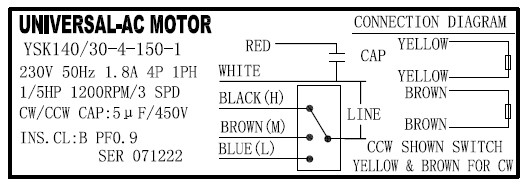

YSK140/30-4-150-1
230V
50Hz

150W
1/5HP
1200RPM/3 SPD

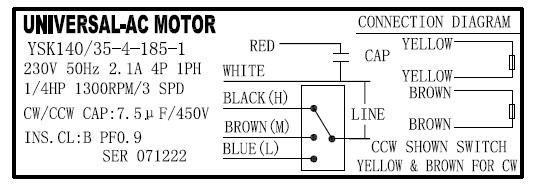

YSK140/35-4-185-1
230V
50Hz
185W
1/4HP
1300RPM/3 SPD
YSK140-245-4 208-230V 60Hz 245W 1/3HP 1625RPM/3 SPD
YSK140-375-4 208-230V 60Hz 375W 1/2HP 1625RPM/3 SPD
YSK140-550-6 208-230V 60Hz 550W 3/4HP 1075RPM

Listed are representative motors, technical parameter and mounting dimension can be customized according to customer's requirement.

Product Features:

Use NSK low noise high quality ball bearing;
Nickel plating for shaft, electrophoretic coating for enclosure;
Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
