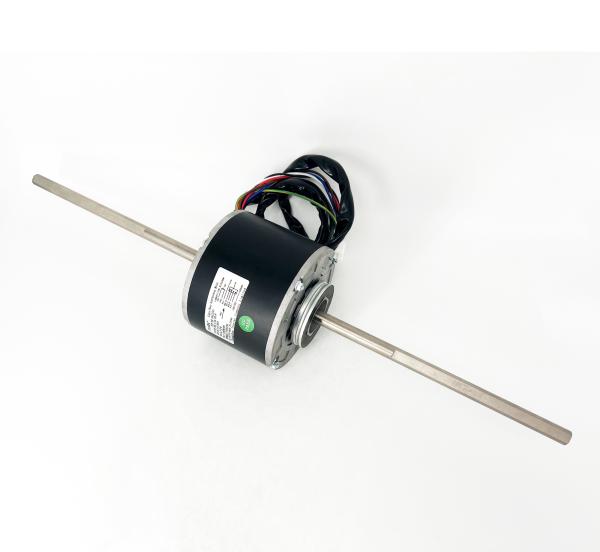

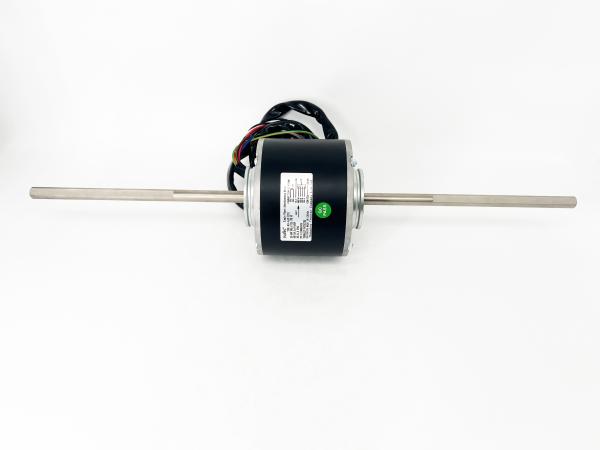

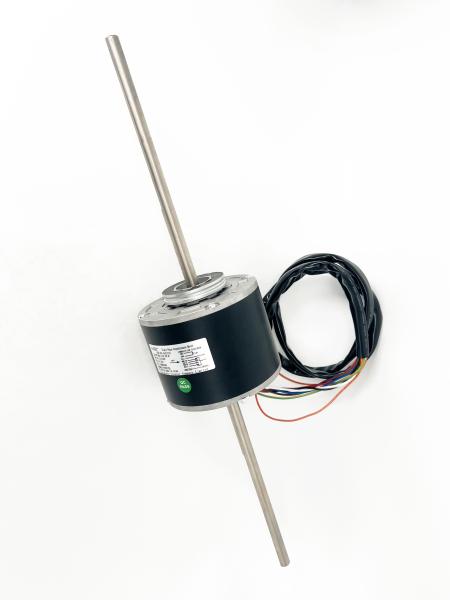

Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Fan Coil Unit Motor AC Motor with 123mm Frame 570mm Shaft Length and 12.7mm Shaft Diameter for Air Conditioner
Specifications
Model Number :
YSK-90-4A2-SGR
Brand Name :
trusTec
Place of Origin :
Jiangsu, China
MOQ :
200
Price :
$14.70-15.50
AC Voltage :
220-240V
Rated Power :
90W
Rated Speed :
1330RPM/4SPD
Frame Size :
123mm
Motor Type :
Permanent Split Capacitor
Enclosure Type :
TEAO
Phase :
Single Phase
Shaft Diameter :
12.7mm
Shaft Length :
570mm
Motor Shell Length :
94mm
Supply Frequency :
50Hz
Current :
0.72A
Pole :
4P
IP Rating :
42
Capacitor :
5uF/450V
Description

Features and Specifications:

Product
Fan Coil Unit Motor
Motor Type
Permanent Split Capacitor
Enclosure Type
TEAO(Totally Enclosed Air Over)
Thermal Overload
Equipped With An Automatic Thermal Overload
Phase
Single Phase
Shaft Flats
One Flat
Mounting Orientation
All Angle
Bearings
Ball Bearing
Mounting
Stud Mounting All Angel
Max. Ambient Temperature
40℃/104℉
Frame
123mm
Supply Voltage
220-240V
Supply Frequency
50Hz
Current
0.72A
Output HP
90W
Rated Speed
1330RPM/4SPD
Pole
4P
IP
42
Capacitor
5uF/450V
Insulation Class
Class B
Rotation
CW-LE
Shaft Length
22.4" / 570mm
Shaft Diameter
0.5" / 12.7mm
Motor Shell Length
3.7" / 94mm
Lead Length
51.18" / 1300mm
