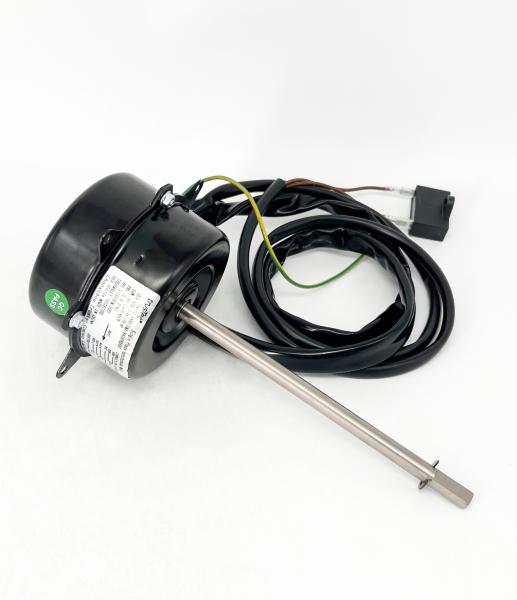

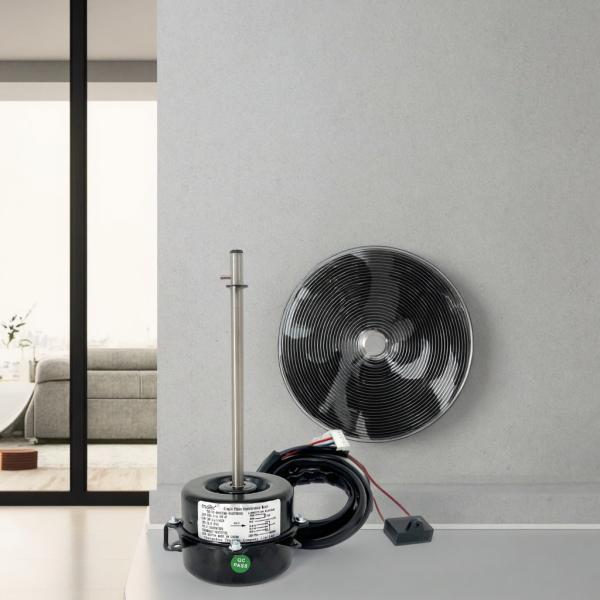

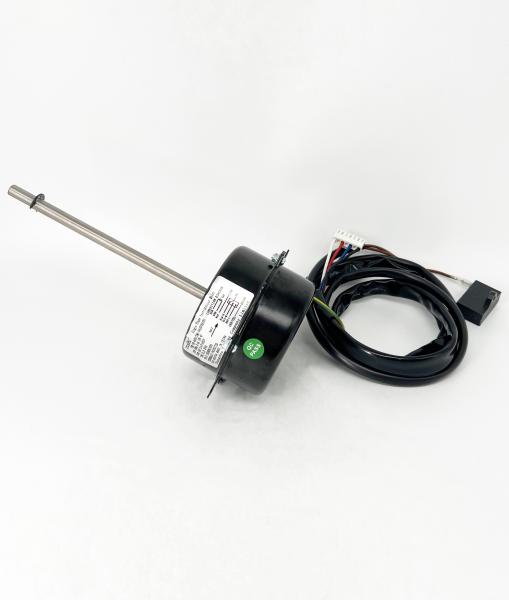

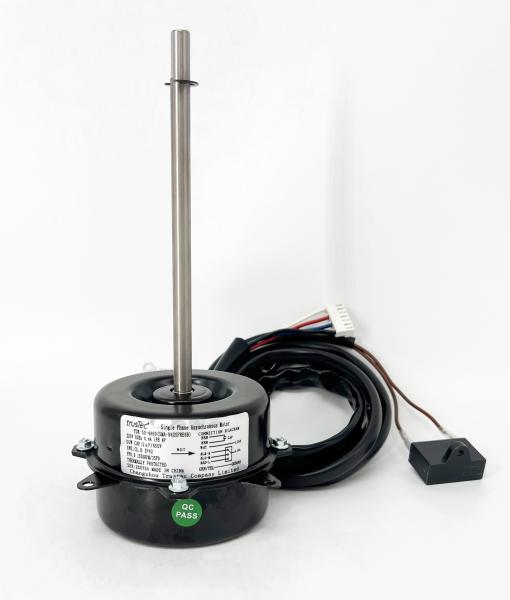

50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
50W 1550RPM/3SPD 220V AC Indoor Fan Motor for Air Conditioner with All Angle Mounting
Specifications
Model Number :
YDK-50-4A60-KPM
Brand Name :
trusTec
Place of Origin :
Jiangsu, China
MOQ :
200
Price :
$13.39-14.49
AC Voltage :
220V
Rated Power :
50W
Rated Speed :
1550RPM/3SPD
Frame Size :
95mm
Motor Type :
Permanent Split Capacitor
Enclosure Type :
TEAO (Totally Enclosed Air Over)
Phase :
Single Phase
Shaft Diameter :
1/2" / 12.7mm
Shaft Flat Length :
0.82" / 21mm
Motor Shell Length :
9.96" / 253mm
Lead Length :
17.71" / 450mm
Rotation Direction :
CCWSE
Supply Frequency :
60Hz
Current :
0.4A
Pole :
4P
Description

Features and Specifications:

Product
Indoor Fan Motor
Motor Type
Permanent Split Capacitor
Enclosure Type
TEAO (Totally Enclosed Air Over)
Thermal Overload
Equipped With An Automatic Thermal Overload
Phase
Single Phase
Shaft Flats
One Flat
Mounting Orientation
All Angle
Bearings
Ball Bearing
Mounting
Stud Mounting All Angel
Max. Ambient Temperature
40℃/104℉
Frame
95mm
Supply Voltage
220V
Supply Frequency
60Hz
Current
0.4A
Output HP
50W
Rated Speed
1550RPM/3SPD
Pole
4P
IP
42
Capacitor
2uF/450V
Insulation Class
Class B
Shaft Diameter
1/2" / 12.7mm
Flat Length
0.82" /21mm
Motor Shell Length
9.96" / 253mm
Lead Length
17.71" / 450mm
Rotation
CCWSE
