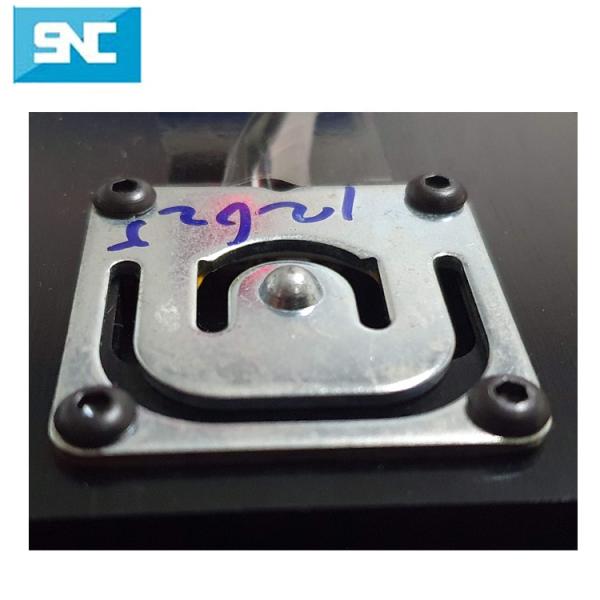

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales
Specifications
Series :
Micro load cell
Features :
alloy steel
Mounting Type :
Fixed installation
Description :
Can be consulted, micro weight sensor
Model Number :
SC134
Type :
force sensor
Place of Origin :
Guangdong, China
Brand Name :
sensorcon
Use :
weight measure
Theory :
strain gauge weight sensor
Output :
0.8-1.6mv/v
Accuracy :
±0.05%
Voltage - Supply :
5V
Operating Force :
10
Compensated Temperature :
0-40
Model :
SC134
Bridge :
Full bridge
Capacity :
10kg, 30kg, 50kg
Excitation voltage :
3V-12VDC
rated output :
0.8 / 1.6 ±0.2mV/V
IP grade :
IP65 waterproof
Connector :
support JST or other connectotrs
Optional :
HX711 load cell amplifier
Defend grade :
IP66
item :
flat and thin micro force load cell
Price :
$4/pieces
Description

Full bridge SC134 Load Cell 50 Kg To Measure Human Weight Flat And Thin Scales Sensor Pressure Sensor

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin ScalesHighly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin ScalesHighly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin ScalesHighly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Product List

Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell Amplifier
Semi-conductor strain gauge Column load cell
Bridge type load cell
Product Description

Features:

Model: SC134
Capacity: 10kg-75kg
Type: Full bridge load cell
Material: Alloy steel with IP65 waterproof
Application: Kitchen scale, body scale and other weighing devices.

Parameters:

Rated capacity 5kg, 10kg, 20kg, 30kg, 50kg, 75kg , 100kg, 150kg, 200kg
Zero balance ±0.5mV/V
Output sensitivity 0.8±0.2mV/V—Half Bridge, 1.6±0.2mV/V-Full Bridge
linearity 0.05%F.S
Repeatability 0.05%F.S
Hysteresis error 0.05%F.S
Creep 0.05%F.S/1min
Comprehensive error 0.05%F.S
Temp. effect on span 0.1%F.S/10℃
Temp. effect on zero 0.2%F.S/10℃
Input resistance 1000±10Ω
Output resistance 1000±10Ω
Insulation resistance ≥2000MΩ (10VDC)
Excitation voltage 3~10VDC
Operating temp.range -10~+60℃
Defend grade IP66
Material alloy steel
Cable (Full bridge) Red, Black, White (Green)
Safe Overload F.S 150%F.S
Ultimate overload 150±10kg
Wiring Red(input+) Black(input-) White(output-) Green(output+)
Item Full bridge / half bridge load cell

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Load cell Accessorie

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Related Products

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

Packaging & Shipping

Highly Accurate Full Bridge SC134 Load Cell 50 Kg for Human Weight Measurement on Thin Scales

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
