Specifications
Model Number :
SC616C
Type :
Load Cell
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
PRESSURE SENSOR
Theory :
Resistance Sensor
Output :
Analog SENSOR
Description :
SC616C Load Cell
Material :
aluminum alloy
Item :
SC616C
Capacity :
300g 500g 750g 1kg 2kg 3kg
Output sensitivity :
0.7±0.1mV/V
Excitation voltage :
5-10VDC
size :
45x9x6 mm
Ultimate over load :
150% F.S.
IP grade :
IP65
Warranty :
12 Months
Application :
small scales,body scale, kitchen scale
Packaging Details :
load cell 500g---carton box
Port :
shenzhen
Supply Ability :
10000 Set/Sets per Month 616C prices of Miniature load cell 500G
MOQ :
10 pieces
Price :
$1-3/pieces
Description

Chinese Low Cost Mini High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Price

Product Description

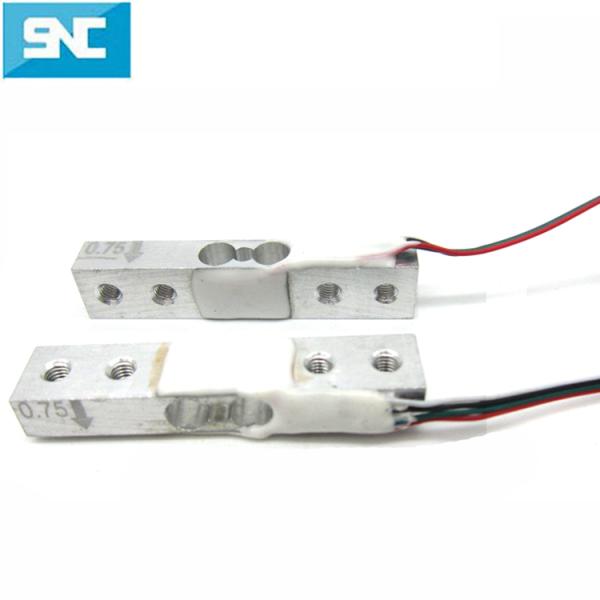

High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision Measurements

Parameters

Model SC616C
Capacity 300g, 500g,750g, 1kg, 2kg, 3kg
Comprehensive Error 0.05 % F.S
Output sensitivity 300g: 0.7±0.15MV/V , 500g-750g: 0.8±0.15 MV/V, 1kg-3kg: 1.0±0.15 MV/V
Non-linearity 0.05 (%F.S.)
Repeatability 0.05 (%F.S.)
Hysteresis 0.05 (%F.S.)
Creep 0.1 [(3 min)%F.S.]
Zero Output ± 0.1 m V/V
Temp. Effect on Zero 0.2(%F.S/10℃)
Temp. Effect on Span 0.05(%F.S 10℃)
Input Resistance 1000 ± 10 Ω
Output Resistance 1050 ± 100 Ω
Insulation Resistance ≥ 2000 MΩ
Excitation Voltage 3~10Vdc
Operating Temperature range -10~+40℃
Four corner error ± 0.1% F.S
Safe overload 120% F.S
Ultimate Overload 150% F.S
Cable length Φ0.6 x 110 mm
Wiring Excitation +: Red, Excitation-: Black Signal+: Green, Signal- : White
Application Jewelry scale, small weight scale, kitchen scale, force test

High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision Measurements

Load cell Accessorie

High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision Measurements

High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision Measurements

Related Products

High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision Measurements

Packaging & Shipping

High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision Measurements

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision MeasurementsHigh Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision Measurements

Why Choose Us

High Accuracy 0.5 Kg 1 Kg 2 Kg 3 Kg Micro Load Cell Small Size and for High Precision Measurements

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
