Specifications
Features :
Parallel beam load cell
Mounting Type :
Fixed installation
Description :
Parallel beam load cell, SC602
Manufacturing Date Code :
2024-3-15
Model Number :
SC602
Type :
Load Cell
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
force measurement
Theory :
strain gauge load cell, Resistance Sensor
Output :
2mV/V, Analog SENSOR
Usage :
PRESSURE SENSOR
Model :
SC602 aluminum load clel
Insulation resistance :
≥5000MΩ(100VDC)
rated output :
2±0.1mV/V
Excitation voltage: :
5~12VDC
Compensated temp. range: :
-10℃~+40℃
Creep :
0.017%F.S/10min
Safe overload: :
120%
MOQ :
10 pieces
Price :
$7/pieces 10-49 pieces
Description

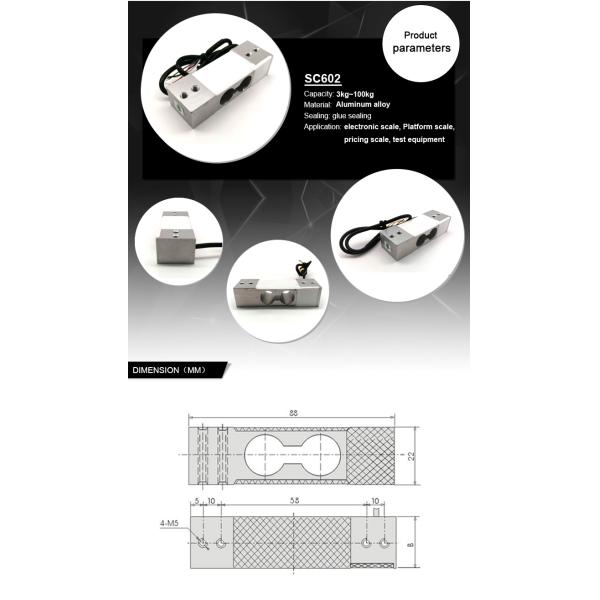

SC602 Aluminum alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg

Model: SC602

Rated load: 3kg ~100kg

Precision: 0.03% F.S

Safe overload:150%

Material: Alloy aluminum

Apply to: electronic scale, Platform scale, pricing scale, fore test equipment

Product Description

Comprehensive error: 0.03%F.S
Rated output: 2±0.1mV/V
Non-linearity: 0.03%F.S
Hysteresis: 0.03%F.S
Repeatability: 0.02%F.S
Creep: 0.02%F.S/10min
Zero balance: ±1%F.S
Input resistance: 405±10Ω
Output resistance: 350±3Ω
Insulation resistance: ≥5000MΩ(100VDC)
Excitation voltage: 9VDC~12VDC
Compensated temp. range: -10℃~+40℃
Use temp. range: -20℃~+60℃
Temp. effect on zero: 0.03%F.S
Temp. effect on span:

0.02%F.S

Ultimate overload: 150%
Defense class: IP65

SC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force Measurement

SC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force Measurement

SC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force Measurement

Related Products

SC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force Measurement

Production Process

SC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force Measurement

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

SC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force MeasurementSC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force Measurement

Packaging & Shipping

SC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force Measurement

Why Choose Us

SC602 Aluminum Alloy Single Point Load Cell 3kg 6kg 10kg 50kg 60kg 100kg for Accurate Force Measurement

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
