Specifications
Series :
Micro load cell
Features :
small size, small capacity
Mounting Type :
screw installa
Description :
micro load cell, load cell 2kg
Manufacturing Date Code :
2022-12-16
Model Number :
SC132
Type :
force sensor
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
force measurement
Theory :
converts weight signal to electric quantity signal
Output :
1MV/V
Model :
SC132
Capacity :
2kg
Material :
Alluminum
Non-linearity :
0.05 (%F.S.)
Repeatability :
0.05 (%F.S.)
Hysteresis :
0.05 (%F.S.)
Creep :
0.1 [(3 min)%F.S.]
Input Resistance :
1000 ± 10 Ω
Cable length :
0.6 x 110 mm
Application :
electronic scale, pricing scale, fore test
Price :
$3/units 1-9 units
Description

SC132-2kg Miniature parallel beam type load cell small low cost load cell for hanging weigh scale

Product List

Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell Amplifier
Semi-conductor strain gauge Column load cell
Bridge type load cell

Product Description

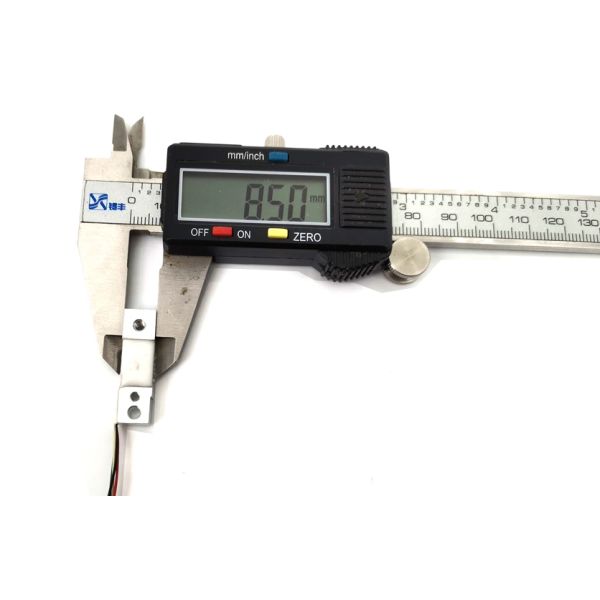

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

Parameters

Rated Capacity 2kg
Accuracy Class 0.1%R.O.
Rated Output E0.7mV/V±20%
Zero Balance ±0.1mV/V
Input resistance 1000 ± 10 Ω
Output resistance 1000 ± 10 Ω
Linearlty Error ±0.1R.O
Repeatability Error ±0.1R.O
Hysteresis error ±0.1R.O
Creep in 2min ±0.1R.O
Terrp Effect on output ±0.05%R O/10℃
Temp. effect on zero ±2%R O/10℃
Compensated Temp.Range 0-+40℃
Excitation Recommended ≤6VDC
Operating Temp Range -10-+40℃
Safe Overload 150%R.C
Insulation Resistance ≥ 2000 MΩ(50VDC)
Cable Length Φ0.65mmx0.1m
Protection Class IP65

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

Load cell Accessorie

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

Related Products

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

Packaging & Shipping

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

SC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam TypeSC132 Miniature Load Cell for Hanging Weigh Scale 2kg Capacity Screw Installation Small and Miniature Parallel Beam Type

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
