Specifications
Series :
load cell
Mounting Type :
Fixed installation
Description :
load cell, SC635 cheap micro load cell
Model Number :
SC635
Type :
Load Cell
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
PRESSURE SENSOR
Theory :
Resistance Sensor
Output :
Analog SENSOR
Item :
load cell 5kg
Material :
aluminum alloy load cell
Capacity :
5kg, 6kg, 15kg, 25kg

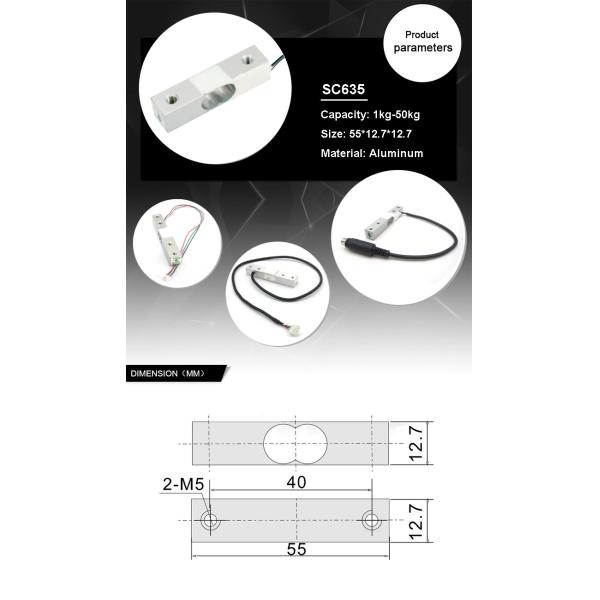

Size :
55*12.7*12.7 mm
Accuracy class :
0.05%
rated output :
1.0±0.1mV/V
safe over load :
150% RO
Supply Voltage :
DC5-10V
IP grade :
IP65
Application :
kitchen scale, electronic scale and other test device
MOQ :
10 pieces
Price :
$1-3/pieces
Description

5 Kg Small Structure Low Cost Kitchen Scale Weighing Sensor Load Cell Miniature

Product Description

Affordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum Alloy

Parameters

Capacity 1kg-50kg
Rated Output 1.0±0.2mV/V
Comprehensive error 0.05 %F.S
Non-linearity 0.05%F.S
Hysteresis 0.05%F.S
Repeatability 0.05%F.S
Creep 0.05 [(3 min)% F.S.]
Zero output -0.15~+0.05 m V/V
Temp. effect on zero 0.3 (%F.S/10℃)
Temp. effect on span ≤0.15 (%F.S/10℃)
Input impedance 1000±50 Ω
Output impedance 1000±50 Ω
Insulation resistance ≥2000 MΩ
Operating compensated range -10~+40
Recommended excitation voltage 3-10 VDC
Safe overload 120%F.S
Ultimate Overload 150%F.S
Cable Φ0.8 x 220mm
Connection Excitation: Red+, Black- Signal: Green+, White-

Affordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum Alloy

Load cell Accessorie

Affordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum Alloy

Affordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum Alloy

Related Products

Affordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum Alloy

Packaging & Shipping

Affordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum Alloy

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Affordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum AlloyAffordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum Alloy

Why Choose Us

Affordable 15kg Capacity Kitchen Scale Load Cell with Miniature Design and Aluminum Alloy

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
