Specifications
Series :
Micro load cell
Features :
small size, small capacity
Mounting Type :
screw installa
Description :
micro load cell, SC932
Manufacturing Date Code :
2022-12-16
Model Number :
SC932
Type :
Load Cell
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
Force measurement
Theory :
strain gauge sensor
Output :
mV/V
Item :
mini load cell
Material :
aluminum alloy
Capacity :
50kg
Output sensitivity :
1.0±0.1mV/V
resistance :
1000±50 ohm
Excitation voltage :
5-10V
Ultimate over load :
150% F.S.
Warranty :
1 Year
IP grade :
IP65
Application :
bathroom scale, body scale, kitchen scale
MOQ :
10 pieces
Price :
$2.80/pieces 10-99 pieces
Description

cheap bathroom scale load cell 50kg mini load cell

Product Description

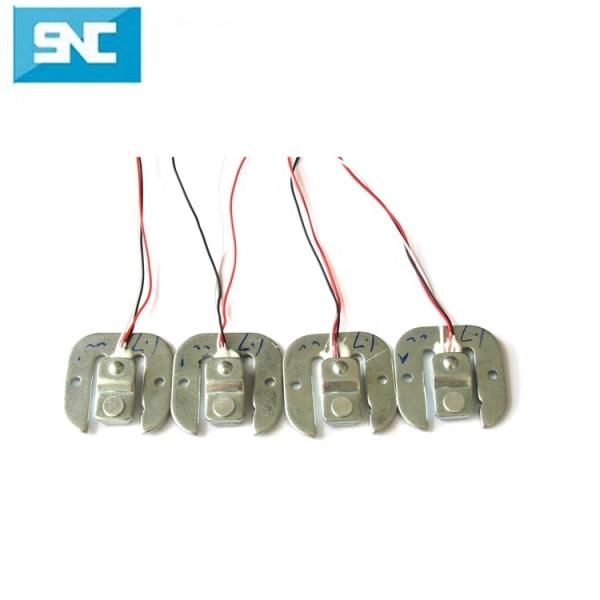

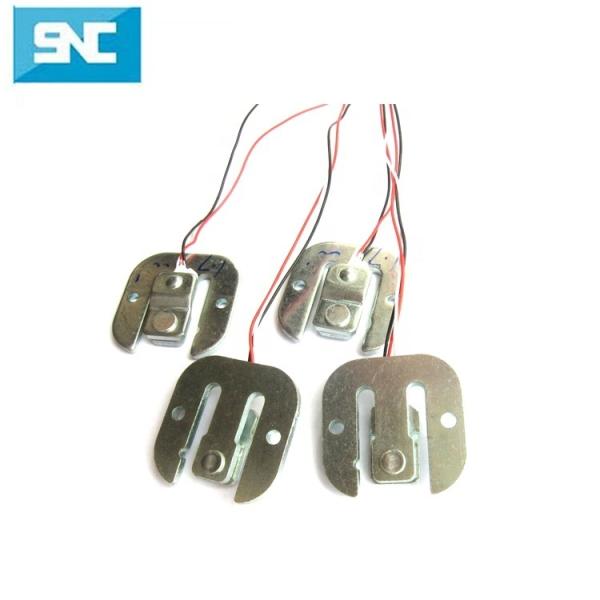

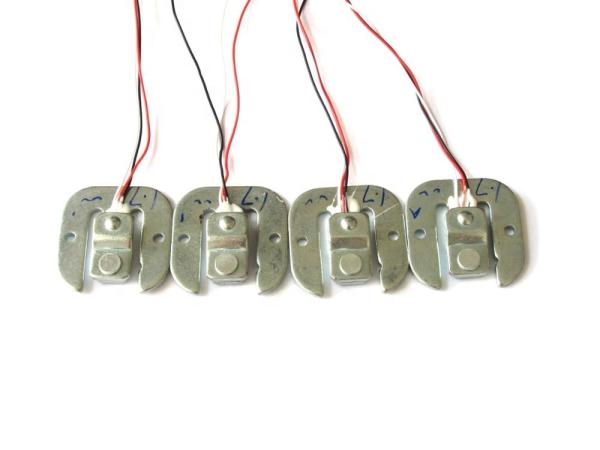

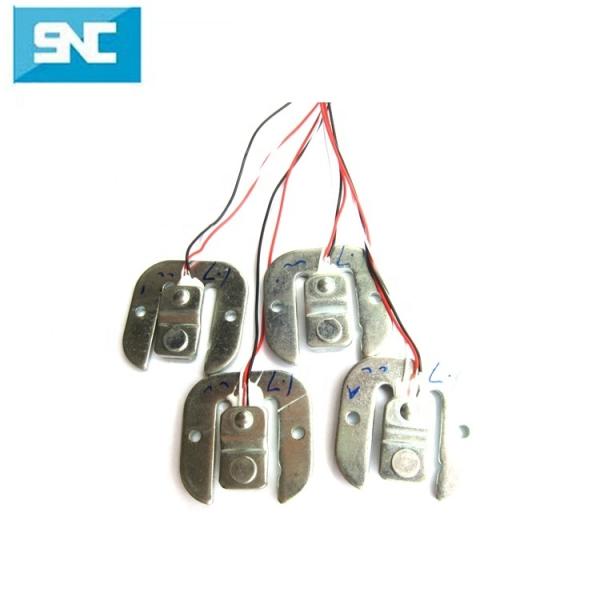

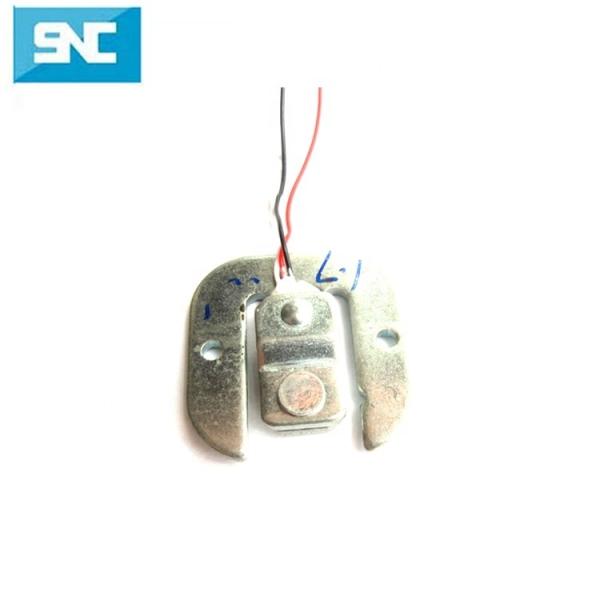

50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type

Parameters

Capacity 50kg
Accuracy 0.3%F·S
Rated output 1.0 ± 0.15mV/V
Comprehensive error 0.2 %F·S
Creep ±0.15 %F·S/10min
Non-linearity ±0.2 %F·S
Hysteresis error ±0.2 %F·S
Repeatability ±0.15 %F·S
Zero balance ±0.3 mV/V
Temp. effect on sensitivity 0.2 F·S/10ºC
Temp. effect on zero 0.2%F·S/10ºC
Compensated temp. -10~+40ºC
Input resistance 1090± 10 Ω
Output resistance 1000 ±10 Ω
Insulation resistance ≥ 2000 MΩ(100VDC)
Operating temp. range -10~+40ºC
Excitation voltage 5~10 VDC
Size 34x33.9x8mm
Load cell material Steel
Connecting cable Φ0.8x300mm
Unit weight 85g/set

50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type

Load cell Accessorie

50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type

50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type

Related Products

50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type

Packaging & Shipping

50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type

Why Choose Us

50kg Mini Load Cell for Bathroom Scale Screw Installation Mounting Type

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
