Specifications
Series :
load cell
Features :
Aluminum alloy single point
Mounting Type :
Single point installation
Description :
micro load cell, micro load cell
Model Number :
SC616C
Type :
force sensor
Place of Origin :
Guangdong, China
Brand Name :
SNC
Use :
force measurement
Output :
1MV/V
Model :
SC616C
Capacity :
300g, 500g,750g, 1kg, 2kg, 3kg
Material :
Alloy aluminum
Non-linearity :
0.05 (%F.S.)
Repeatability :
0.05 (%F.S.)
Hysteresis :
0.05 (%F.S.)
Creep :
0.1 [(3 min)%F.S.]
Input Resistance :
1000 ± 10 Ω
Cable length :
0.6 x 110 mm
Application :
electronic scale, pricing scale, fore test
MOQ :
10 units
Price :
$2.50/units 10-99 units
Description

SC616C Low Cost Load Cell Miniature Force Sensor 300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Micro Load Cells

Product Description

300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications

Features:

Model: SC616C

Rated load: 300g, 500g, 750g, 1kg, 2kg, 3kg,5kg

Precision: 0.05%F.S

Material: Aluminum alloy

Waterproof grade: IP65

Application: Jewelry scale, small weight scale, kitchen scale, force test

Parameters

Model SC616C
Capacity 300g, 500g,750g, 1kg, 2kg, 3kg,5kg
Comprehensive Error 0.05 % F.S
Output sensitivity 300g: 0.7±0.15MV/V , 500g-750g: 0.8±0.15 MV/V, 1kg-3kg: 1.0±0.15 MV/V
Non-linearity 0.05 (%F.S.)
Repeatability 0.05 (%F.S.)
Hysteresis 0.05 (%F.S.)
Creep 0.1 [(3 min)%F.S.]
Zero Output ± 0.1 m V/V
Temp. Effect on Zero 0.2(%F.S/10℃)
Temp. Effect on Span 0.05(%F.S 10℃)
Input Resistance 1000 ± 10 Ω
Output Resistance 1050 ± 100 Ω
Insulation Resistance ≥ 2000 MΩ
Excitation Voltage 3~10Vdc
Operating Temperature range -10~+40℃
Four corner error ± 0.1% F.S
Safe overload 120% F.S
Ultimate Overload 150% F.S
Cable length Φ0.6 x 110 mm
Wiring Excitation +: Red, Excitation-: Black Signal+: Green, Signal- : White
Application Jewelry scale, small weight scale, kitchen scale, force test

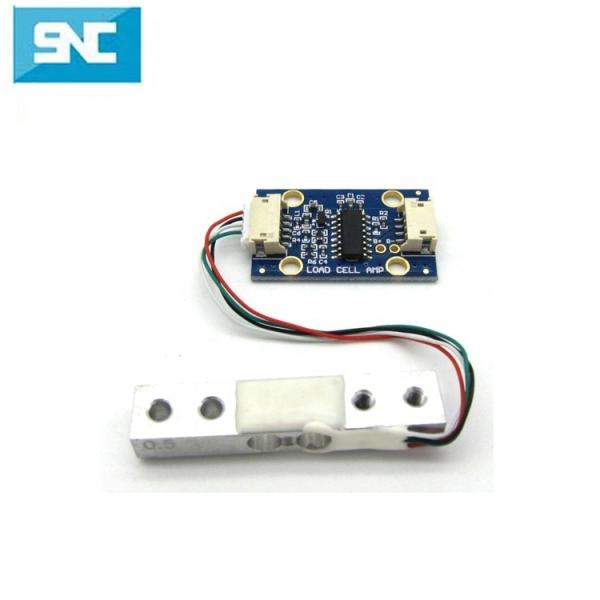

300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications

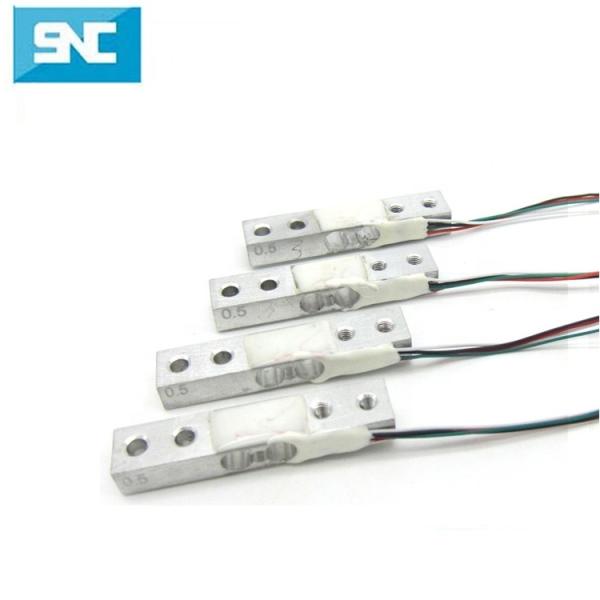

300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications

300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications

Related Products

300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications

Packaging & Shipping

300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications

Why Choose Us

300 G 500 G 750 G 1 Kg 2 Kg 3 Kg Load Cell for Force Sensing and 1000 ± 10 Ω Input Resistance in Various Applications

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
