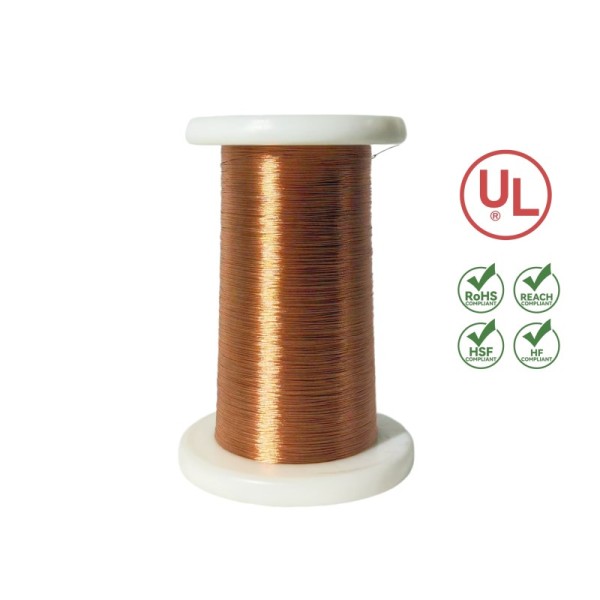

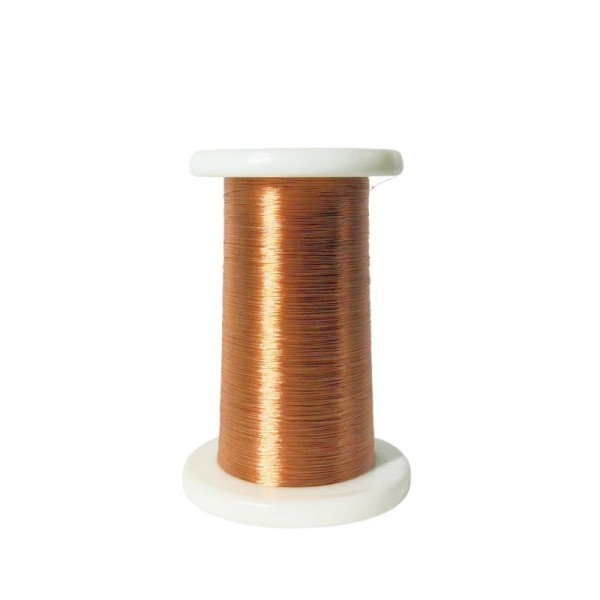

0.058mm×36 Strands Self Bonding Litz Wire Class 155 Polyurethane Enamelled Copper Wire
0.058mm×36 Strands Self Bonding Litz Wire Class 155 Polyurethane Enamelled Copper Wire
0.058mm×36 Strands Self Bonding Litz Wire Class 155 Polyurethane Enamelled Copper Wire
0.058mm×36 Strands Self Bonding Litz Wire Class 155 Polyurethane Enamelled Copper Wire
Specifications
Model Number :
PIT
Cover Material :
polyurathane+Self bonding Layer
MOQ :
200
Delivery Time :
15-25 Working Days
Insulation :
Enamel
Payment Terms :
T/T
Supply Ability :
5000kgs/month
Certification :
IEC/NEMA/JIS/RoHS/ISO/UL/VDE
Rated Temperature :
155（F）
Place of Origin :
CHINA
No. Of Strands :
36
Price :
Negotiation
Single wire Diameter :
0.058mm
Brand Name :
HUAYE
Conductor Material :
Copper/Pure Copper/Oxygen Free Copper/CCA
Packaging Details :
Carton + Wooden Case
Description
0.058mm*6*6 | 2UEW Self-Bonding Litz Wire | Class F 155°C

HUAYE Self-Bonding Litz Wire is manufactured by stranding multiple self-bonding polyurethane enamelled copper wires into a precise litz construction.

Each individual strand is coated with both polyurethane insulation and a self-bonding layer. During coil manufacturing, the bonding layer can be activated by heat, allowing the winding to maintain its shape without additional tapes, adhesives, or varnish treatment.

The litz structure effectively reduces skin effect and proximity effect losses in high-frequency applications while the self-bonding property improves coil stability and production efficiency.

Key Features
  • Constructed from self-bonding polyurethane enamelled copper strands
  • No secondary bonding coating applied after stranding
  • Thermal activation bonding for self-supporting coils
  • Class 155 insulation system
  • Excellent solderability
  • Reduced AC resistance at high frequencies
  • Improved coil dimensional stability
  • Suitable for automated winding processes
  • Custom strand constructions available
Technical Specifications
Model 2SBUEW 0.058*6*6 Self-Bonding Litz Wire
Structure 6*6*Ø0.058mm (Total 36 Strands)
Conductor Copper
Insulation 2SBUEW
Thermal Class Class F(155°C)
Breakdown Voltage ≥700V
Bonding Method Hot Air
Certifications RoHS, REACH, UL, ISO9001, IATF16949
