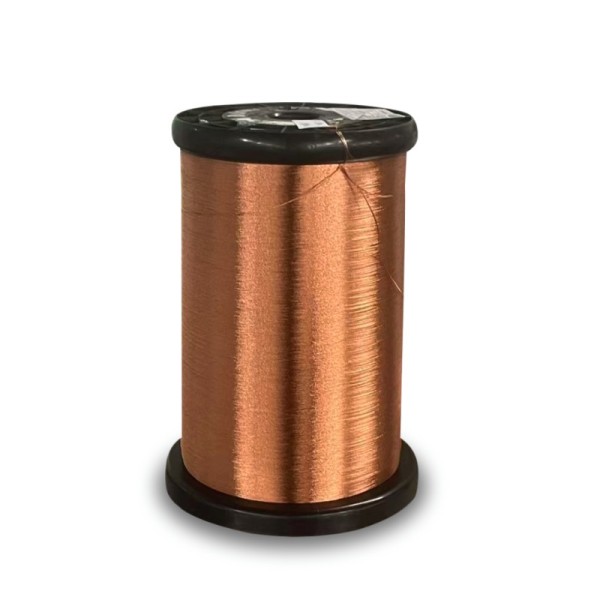

0.030x7x4x4 Stranded Copper Litz Wire Low Loss For Transformers / Chock Coils
0.030x7x4x4 Stranded Copper Litz Wire Low Loss For Transformers / Chock Coils
Specifications
Model Number :
LZ2SBUEWZ
Strands :
7
MOQ :
200kg
Delivery Time :
15 work days
Temperature Class (℃) :
155
Payment Terms :
T/T,L/C,Western Union,Paypal
Tensile Strength (>Mpa) :
200~300
Place of Origin :
China
Conductor :
Copper
Supply Ability :
Satisfy your Demand
Elongation (≥%) :
15
Certification :
RoHS/HF
Insulation :
polyurethane
Price :
For Negotiation
Breakdown Voltage ≥V :
800
Brand Name :
Huaye New Material
Diameter (mm) :
0.030
Packaging Details :
Spool with Cartoon
Description
0.030*7*4*4 Litz Wire Stranded Copper Wire for Transformers Chock Coils Electrical Applications
Overview

This multi-strand high-frequency self-bonding litz wire features individual conductors coated with Grade 2 polyurethane (UEW) enamel insulation plus an extra thermal self-bonding coating. The complete bundle is twisted in Z-lay direction with stable lay length, effectively suppressing skin and proximity loss at high frequency. The wire can be hot-pressed to form integrated fixed coils without binding tape, offering excellent solderability, uniform enamel film, and low pinhole count. Ideal for high-frequency inductors, micro motors, wireless charging coils, and transformers.

Specifications
Parameter Figure
Lay length (mm) 18 ± 2
Model No. LZ2SBUEWZ
Single Wire Diameter (mm) 0.030
Stranding Structure 7×4×4
DC Resistance (Ω/m) 3.00~3.10
Total Diameter (mm) 0.119~0.138
Pinhole Test ≤ 1pcs/5
Product Features
  • Single Wire Insulation: Grade 2 Polyurethane (UEW) enamel coating, directly solderable without stripping enamel
  • Bonding Feature: Extra self-bonding coating on enamel layer, heat pressable for coil shaping and fixation
  • Stranding Structure: Multi-strand bunched with Z-lay twist direction, stable strand structure, no loose wire during winding
  • Core Advantage: Suppresses skin and proximity loss under high frequency, flexible for winding, coil self-forming after thermal curing
Applications
  • Power Supply
  • EV Charging Stations
  • Photovoltaic & Energy Storage
  • Industrial Power Electronics
  • Transformer
  • Medical Electronics
Our Advantages

Qualified Certification: Zhongke Huaye is a national high-tech and provincial single-champion enterprise with abundant independent patents. Certified with IATF16949, ISO9001, ISO14001 and UL, serving as a reliable Tier 1 supplier for many famous new energy and electronic brands.

Stable Mass Production & Fast Delivery: Dual production bases in Xianning and Dongguan, plus newly-built Vietnamese factory. Company owns full-automatic enameling, stranding and profiling production lines. Flexible production supports customized and bulk orders with stable capacity and short lead time.

Strict Quality Control & Premium Performance: All products are customizable with full online inspection for pinholes, dimensions and DC resistance. Customized products feature uniform insulation, low high-frequency loss, excellent bending resistance and stable electrical performance.
