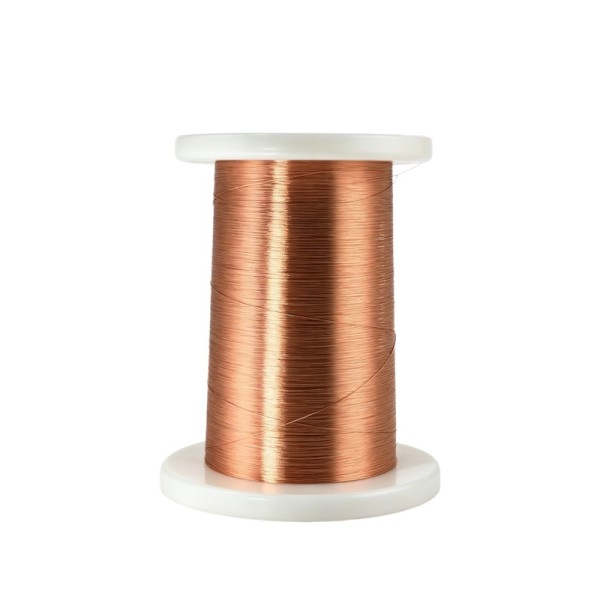

LZ2UEWZ Polyurethane Self Bonding Enameled Litz Wire 0.060mmX20 Class F
LZ2UEWZ Polyurethane Self Bonding Enameled Litz Wire 0.060mmX20 Class F
Specifications
Model Number :
2LZUEWZ
Cover Material :
None
MOQ :
100
Delivery Time :
15-25 Working Days
Insulation :
Enamel
Payment Terms :
T/T
Highlight :
super thin copper litz wire, copper litz wire 0.04 mm, super thin 0.04 mm copper wire
Supply Ability :
5000kgs/month
Certification :
IEC/NEMA/JIS/RoHS/ISO/UL/VDE
Rated Temperature :
155（F）
Place of Origin :
CHINA
No. Of Strands :
20
Price :
Negotiation
Single wire Diameter :
0.060mm
Packaging Details :
Carton + Wooden Case
Brand Name :
HUAYE
Conductor Material :
Copper/Pure Copper/Oxygen Free Copper/CCA
Description
Self-Bonding Litz Wire 0.060mm * 20
Technical Specifications
Model
LZ2UEW
Structure
20* Ø0.060mm
Conductor
99.99% Oxygen-Free Copper
Insulation
UEW Grade2
Thermal Class
Class F (155°C)
Certifications
RoHS, REACH, UL, ISO9001, IATF16949
Overview

This self-bonding litz wire is made of 0.060mm ultra-fine polyurethane enameled copper strands . It is designed for high-frequency applications requiring low AC loss, excellent flexibility, and stable coil forming performance.

The self-bonding feature allows coil fixation through heat or solvent activation, improving assembly efficiency and structural stability.

Key Features

  • 0.060mm ultra-fine copper wire strands

  • Low AC resistance for high-frequency use

  • Self-bonding for stable coil forming

  • High flexibility and good winding performance

Applications

  • High-frequency transformers

  • Wireless charging coils

  • EV power electronics

  • High-efficiency inductors

  • Communication devices

Quality & Standards

Manufactured under strict quality control, compliant with JIS, NEMA, and IEC standards. Each batch is tested for electrical performance and insulation reliability.
