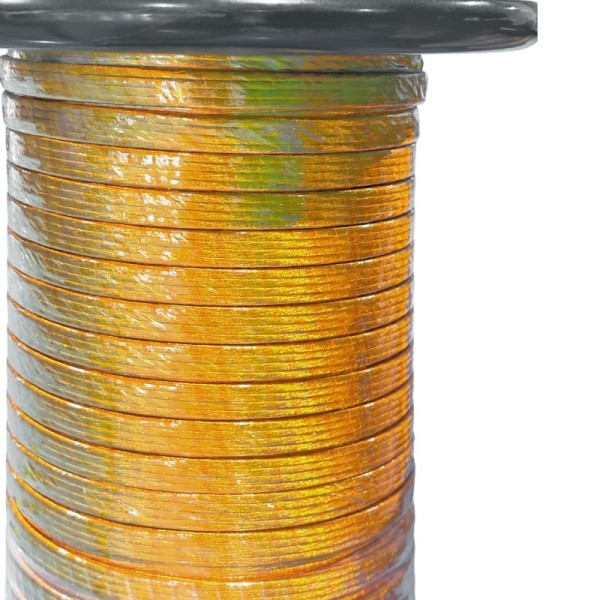

0.070mm 950 PIT Parallel Taped Litz Copper Wire High Insulation Safety
0.070mm 950 PIT Parallel Taped Litz Copper Wire High Insulation Safety
0.070mm 950 PIT Parallel Taped Litz Copper Wire High Insulation Safety
0.070mm 950 PIT Parallel Taped Litz Copper Wire High Insulation Safety
Specifications
Model Number :
PIT
Cover Material :
PIT
MOQ :
200
Delivery Time :
15-25 Working Days
Insulation :
Enamel
Payment Terms :
T/T
Highlight :
super thin copper litz wire, copper litz wire 0.04 mm, super thin 0.04 mm copper wire
Supply Ability :
5000kgs/month
bobbin Type :
PT-25
Certification :
IEC/NEMA/JIS/RoHS/ISO/UL/VDE
Rated Temperature :
180（H）
Place of Origin :
CHINA
No. Of Strands :
950
Price :
Negotiation
Single wire Diameter :
0.04mm
Brand Name :
HUAYE
Conductor Material :
Copper/Pure Copper/Oxygen Free Copper/CCA
Packaging Details :
Carton + Wooden Case
Description
Technical Specifications
Parameter Specification
Conductor Material Oxygen-free copper (≥99.95% purity)
Strand Range 0.07*950 (Main Spec) X4 Parallel strands/ 2 ~ 50,000 strands customizable
Single Wire Diameter 0.07mm single wire diameter (main spec), 0.040mm ~ 0.500mm optional (AWG/SWG compatible)
Max Outer Diameter 18.0mm
Insulation Material PI (custom available)
Insulation Thickness 0.02mm ~ 0.2mm (1–2 layers typical)
Overlap Rate 50% (standard), 33% / 67% optional
Thermal Class F (155°C), H (180°C)
Breakdown Voltage 5kV ~ 10kV
. Key Features
  • Low High-Frequency Loss: Multi-strand & square structure reduces skin & proximity loss, lower heat generation and higher efficiency.
  • High Insulation Safety: Premium film insulation ensures stable 5–10kV withstand voltage for high-isolation scenarios.
  • High Space Utilization: Square forming improves slot fill rate, downsizing finished products.
  • High Temperature Resistance: 155°C / 180°C thermal grades for long-term harsh environment operation.
  • Stable Quality: Online production monitoring + 100% final inspection for consistent batch performance.
. Applications

high-frequency & high-voltage winding fields: UPS/inverters, solar inverters, medical isolation transformers, EV on-board chargers, telecom server coils, induction heating equipment, wireless charging coils for consumer electronics.
