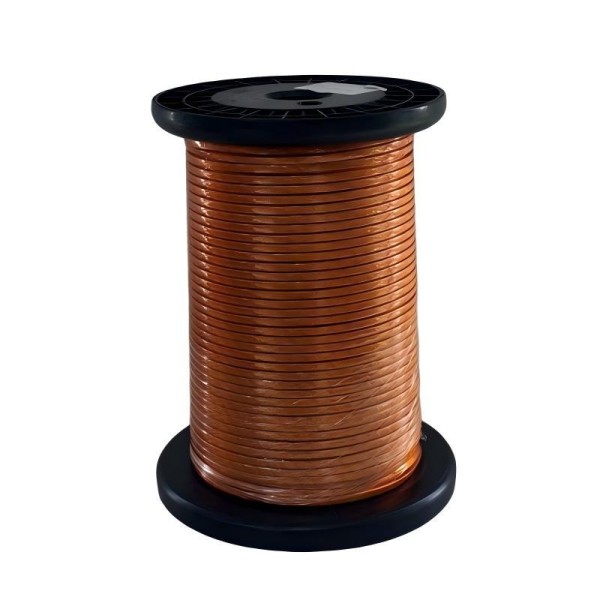

0.100X50X6X5X5 Hierarchical Twisted Taped Litz Wire is industrial high-density high-frequency wrapped litz wire, upgraded from ordinary enameled litz wire. Adopt professional polyester taped wrapped single strand structure, single strand size 0.100mm, fixed composite twisting structure: 50 strands primary twisting, 6*5*5 multi-stage grouped secondary twisting. Each copper strand wrapped by high-strength insulating tape, featuring higher voltage resistance, abrasion resistance and heat resistance than conventional paint insulation. It can evenly disperse high-frequency current, eliminate high-frequency skin effect, greatly reduce eddy current loss and operating temperature, fit long-term high-power, high-frequency continuous working industrial winding scenes, higher stability than common enameled stranded wire.

1. Fixed Standard Twisting Structure: Exclusive model 0.100X50X6X5X5, single strand 0.100mm, 50 strands inner twist + 6*5*5 multi-layer grouping twist, uniform twist pitch, neat strand arrangement, compatible full-automatic industrial high-frequency winding equipment.
2. Premium Taped Insulation: Imported high-temperature polyester insulating tape, higher breakdown voltage, anti-scratch, anti-corrosion, anti-solvent, far better insulation durability than PU enamel coating.
3. Strong High-frequency Anti-skin Performance: Independent film isolation for every single strand, decentralized current conduction, minimize high-frequency eddy current loss, reduce coil heating and energy consumption effectively.
4. High-purity Oxygen-free Copper Core: Low-resistivity oxygen-free copper raw material, stable conductivity, low signal attenuation, stable power transmission for high-power resonant coils.
5. Multi-stage Composite Twisting Craft: Integrated layered twisting process, soft wire body, tensile and fracture-resistant, not loose strand, easy forming for dense coil winding.
6. Wide Temperature & Frequency Adaptation: Excellent thermal stability, adapt medium-high frequency long-term operation, suitable harsh industrial working environment.
7. Full Global Export Qualification: Passed UL, RoHS, ISO, IATF industrial certification, meet European and American industrial power equipment import audit standards.

We are a 20+ years professional wire manufacturer, integrating enameled wire, self-bonding wire, FIW high voltage wire, enameled litz wire and taped litz wire R&D and production.

• Free insulation & frequency performance sample testing available
• Flexible MOQ, support small trial order and bulk mass production
• Custom strand size, twist structure, film thickness, insulation grade acceptable
• Full strand breakage inspection + twist pitch testing, stable batch quality
• Unified lead time: 15 working days
• Complete certification documents and professional high-frequency coil technical support

Mainly used for new energy resonant coils, industrial high-frequency heating equipment, high-power frequency conversion transformers, automotive electronic high-frequency coils, medical precision high-frequency therapeutic equipment and industrial isolation winding coils. Compared with ordinary enameled litz wire, taped litz wire owns stronger insulation and abrasion resistance, longer service life under harsh industrial working conditions.
