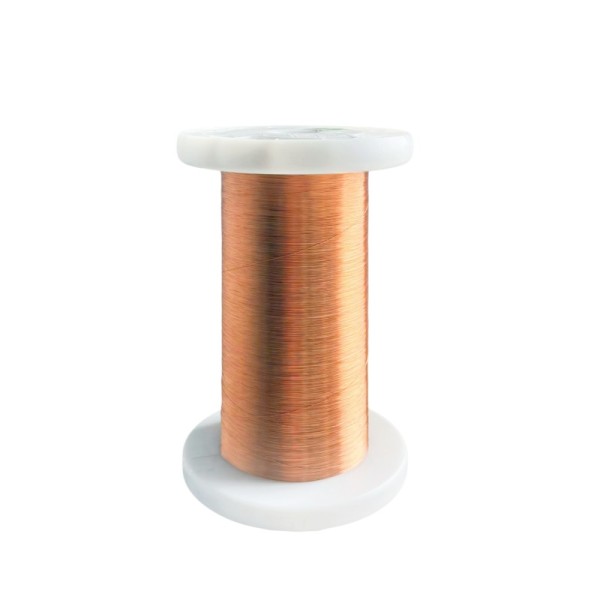

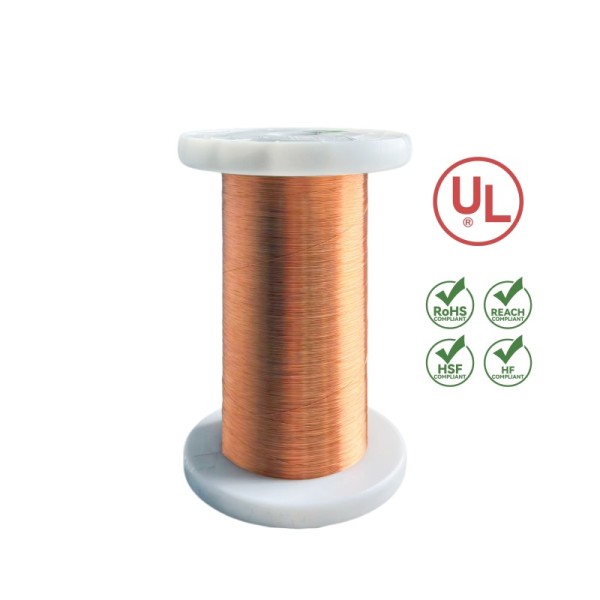

3LOCKY5 0.192mm Diameter Self Bonding Wire Polyurethane Enamelled Copper Wire
3LOCKY5 0.192mm Diameter Self Bonding Wire Polyurethane Enamelled Copper Wire
3LOCKY5 0.192mm Diameter Self Bonding Wire Polyurethane Enamelled Copper Wire
3LOCKY5 0.192mm Diameter Self Bonding Wire Polyurethane Enamelled Copper Wire
Specifications
Model Number :
3SBUEW
Insulation Material :
Polyurethane
MOQ :
200KG
Delivery Time :
15 work days
Diameter :
0.192mm
Size Deviation :
≤ 0.003mm
Payment Terms :
L/C,T/T,Western Union
Key Word :
High Purity Enamelled Round Copper Wire, Custom Enamelled Round Copper Wire, Polyurethane Enamelled Round Copper Wire
Supply Ability :
7000 Kilograms per Month
Conductor Material :
Copper
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Thermal Rating :
155
Place of Origin :
Hubei,China
Conductor Materia :
Copper
Price :
Negotiable
Application :
Voice Coil、VCM
Brand Name :
HUAYE
Product Name :
Custom Ultra Fine Polyurethane 0.03mm Enamelled Round Copper Wire
Packaging Details :
Wooden Case
Description
3LOCKY5 Magnet Wire
Product Overview

3LOCKY5 is a high-performance enameled copper wire designed for applications requiring stable electrical performance and enhanced mechanical hardness. The “Y5” grade represents the wire’s mechanical rigidity level, providing improved resistance to deformation during winding and assembly processes.

It is suitable for demanding coil structures where both electrical reliability and mechanical stability are required.

Technical Specifications
Parameter Specification
Model 3LOCKY5
Conductor Diameter 0.192mm ± 0.003mm
Insulation Thickness Grade 3
Thermal Class 155°C (F-class)
Bonding Method Hot Air / Solvent
Key Features
  • High-performance enameled copper wire
  • Y5 mechanical hardness grade for improved rigidity
  • Stable winding and forming performance
  • Good resistance to deformation during processing
  • Reliable electrical insulation performance
  • Suitable for automated and precision winding
Applications
  • Transformers
  • Inductors
  • Motors
  • Power electronic systems
  • Industrial and electrical equipment
Quality Assurance

Manufactured under strict quality control systems and compliant with international standards such as JIS, NEMA, and IEC. Each batch is tested for electrical performance, dimensional accuracy, and mechanical properties to ensure consistent quality and reliability.

Custom Options

HUAYE provides customized enameled wire solutions, including conductor diameter, insulation thickness, thermal class, and mechanical hardness level adjustment according to application requirements.
