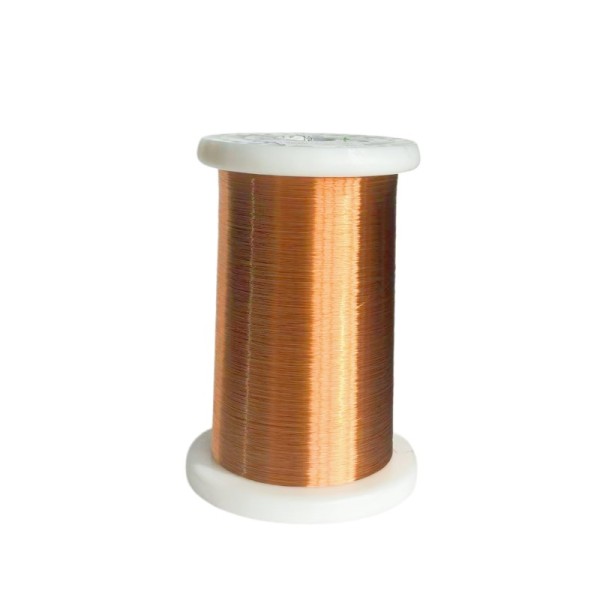

2LOCKCS Polyurethane Insulation Enameled Copper Wire 0.200mm Diameter Self Bonding Grade 2
2LOCKCS Polyurethane Insulation Enameled Copper Wire 0.200mm Diameter Self Bonding Grade 2
Specifications
Model Number :
3SBUEW
Insulation Material :
Polyurethane
MOQ :
200KG
Delivery Time :
15 work days
Diameter :
32 AWG
Wire Diameter :
0.200mm
Payment Terms :
L/C,T/T,Western Union
Key Word :
High Purity Enamelled Round Copper Wire, Custom Enamelled Round Copper Wire, Polyurethane Enamelled Round Copper Wire
Supply Ability :
7000 Kilograms per Month
Conductor Material :
Copper
Soldering Temperature :
300~340℃
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Thermal Rating :
180
Place of Origin :
Hubei,China
Conductor Materia :
Copper
Price :
Negotiable
Application :
Voice Coil、VCM
Brand Name :
HUAYE
Product Name :
Custom Ultra Fine Polyurethane 0.03mm Enamelled Round Copper Wire
Packaging Details :
Wooden Case
Size Deviation :
≤ 0.003mm
Description
Precision. Stability. Reliability for High-End Micro Applications
Technical Specifications
Parameter Specification
Model 2LOCKCS (2UEW + Self-bonding layer)
Conductor Diameter 0.200mm ± 0.003mm
Insulation Thickness Grade 2
Thermal Class 185°C (H-class)
Bonding Method Hot Air / Solvent
Product Overview

2LOCKCS is a high-performance self-bonding enamelled copper wire featuring 2UEW polyurethane insulation and an outer self-adhesive layer. Optimized for micro-miniature and high-density winding, it supports direct soldering and fast bonding molding, delivering precise dimensions, reliable mechanical toughness and stable electrical performance for high-end micro precision applications.

Key Features

Precise Dimensional Stability: Tight tolerance control with low diameter fluctuation, ensuring consistent winding accuracy and stable mass production quality.

Superior Mechanical Performance: Balanced tensile strength and elongation resist breakage during high-speed winding. Upgraded abrasion resistance effectively protects the wire during processing.

Excellent Thermal & Electrical Properties: H-class 185°C high-temperature resistance ensures stable operation under harsh working conditions. Low-temperature direct soldering enables clean solder joints and high assembly yield, with reliable insulation and environmental resistance.

Stable Self-Bonding: Quickly bonded via hot air or solvent without extra adhesive. It forms firm, deformation-resistant integrated coil structures for molded inductors and micro coils.

Our Advantages

Equipped with precision single-head production lines, HVC pinhole monitoring and 360° laser real-time diameter inspection to achieve zero-defect quality control. Full-range batch inspection and complete traceability system ensure stable, reliable product consistency.

Applications

Ideal for high-precision micro coil scenarios: high-end audio voice coils, micro motors, molded inductors, medical electronics, smart sensors, precision instruments and aerospace electronic components.
